Model：PC-110
Mullion Standalone controller
Compare
Product
Features
- Elegant and slim design, suitable for installation in narrow place
- Support 64 Cards (Standalone)
- Built-in LED and Buzzer indicator
- Built-in Form A Relay

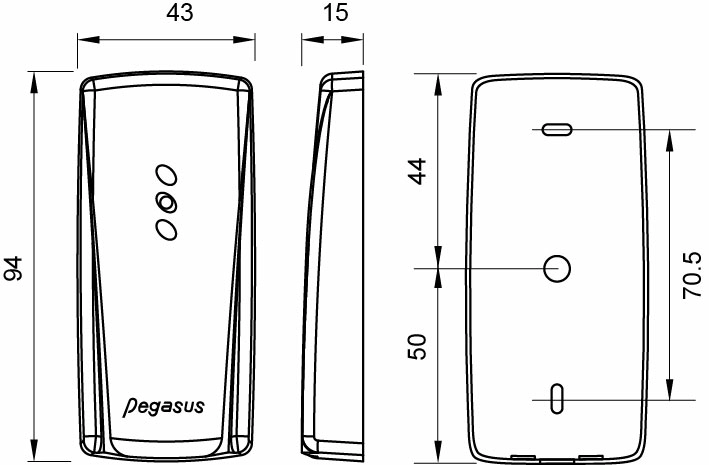

Dimension: Unit(mm)

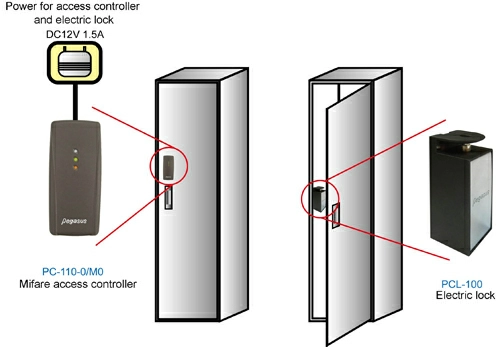

Application field
- Low cost access controllerArm
- Disarm for security system.
- Door access paired with intercom.
- CofferAny access control applications by Mifare card.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
Specifications subject to change without notice for further modification.
Specification
Material
ABS
User Capacity
64
Power Voltage
DC 12V
Input
Exit push button / Door monitor / Security sensor
Output
Alarm output / Tamper switch output / Electric lock output
Dimensions (LxWxH)mm
94x43x15
