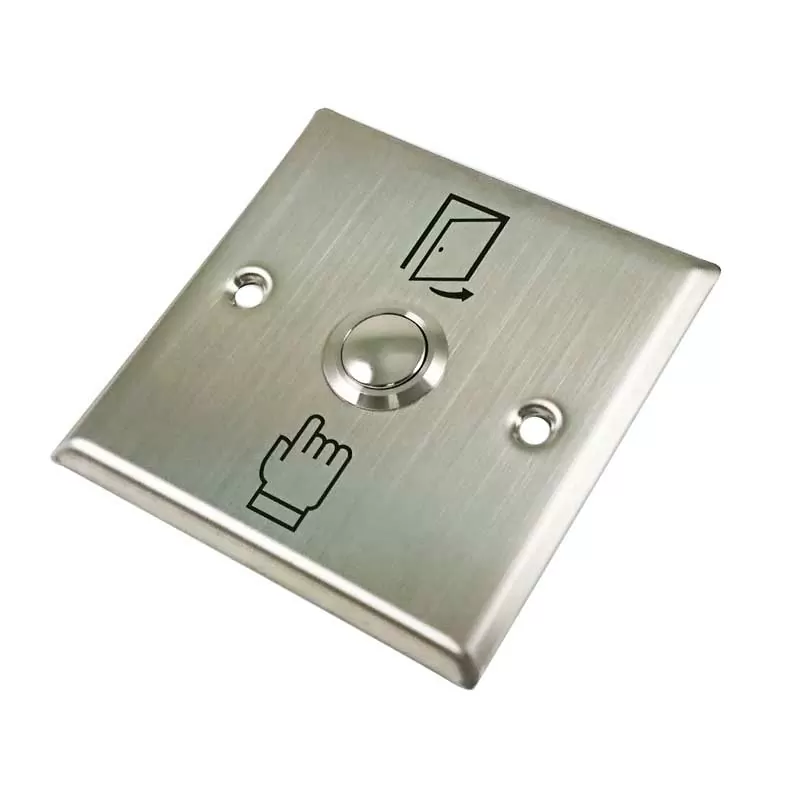

HOME Product Exit Push Button(switch sealed to IP65)
SHARE
Model：PBT-2861

Exit Push Button(switch sealed to IP65)

compare Compare Inquiry (0)
Product

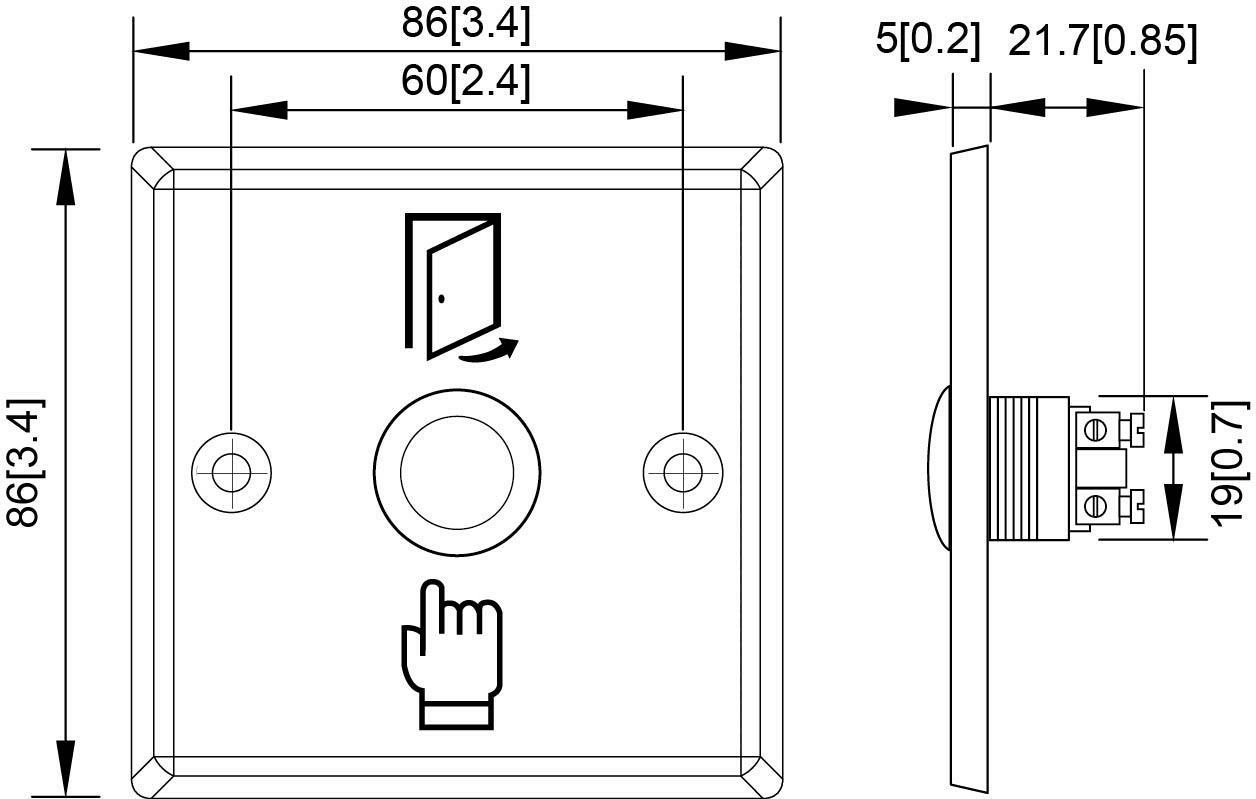

Dimension: mm[inch]

/storage/system/Exit_push_button/Dimension_for_PBT-2861.webp

We reserve the right to change the specification without prior notice or obligation!

proimages/declaration-from-Pongee-Taiwan.jpg
Specification
Net Weight
115g±5%
Material
Face plate: stainless steel / Button: stainless steel
Hole distance
60mm
Maximum limit power
2A / 36V
Contact resistance
≦50mΩ
Insulation resistance
≧50MΩ
Operating temperature
-20℃ ~ 55℃
Life
1,000,000 cycles (Mechanical) / 200,000 cycles (Electrical)
Size
5(plate) / 26.7(total depth) x 86(W) x 86(L)mm
Key stroke
2 mm
IP Rating
Switch sealed to IP65
Circuit
PUSH ON
Insulation strength
500VAC 1min
