Model：PBT-09N

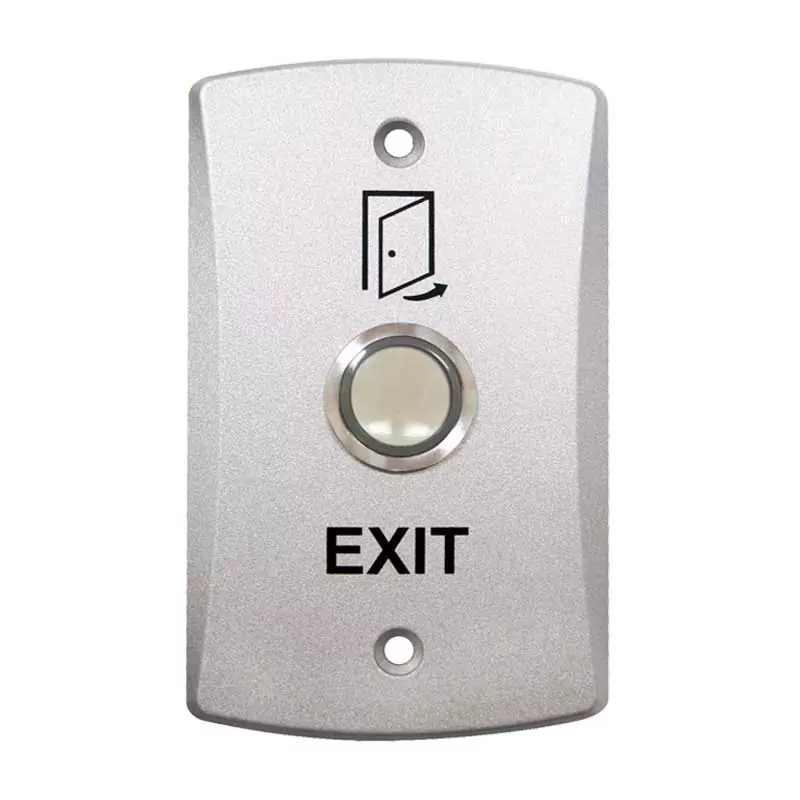

Exit Push Button

※The minimum order quantity:500 pcs

compare Compare Inquiry (0)
Product

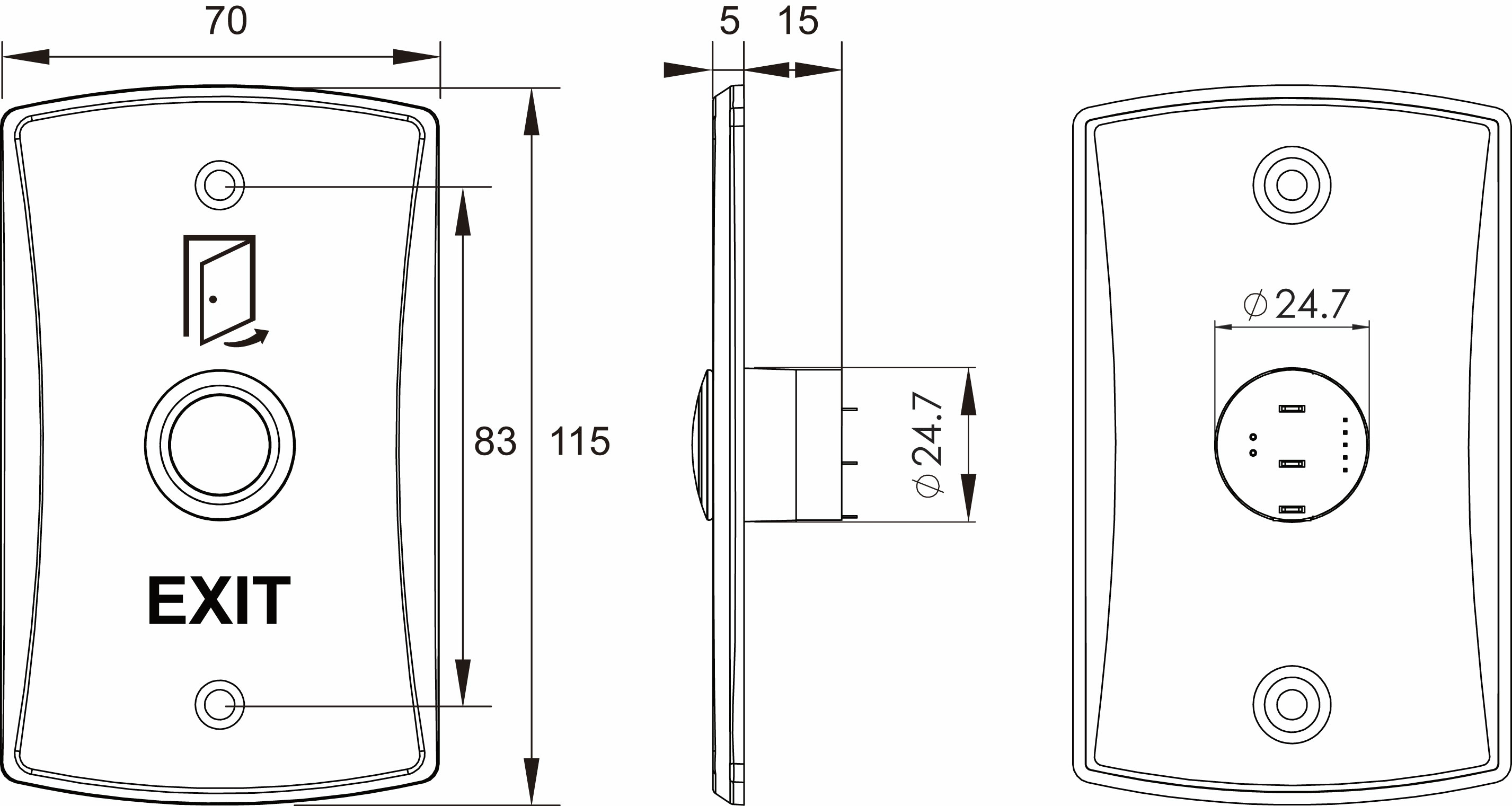

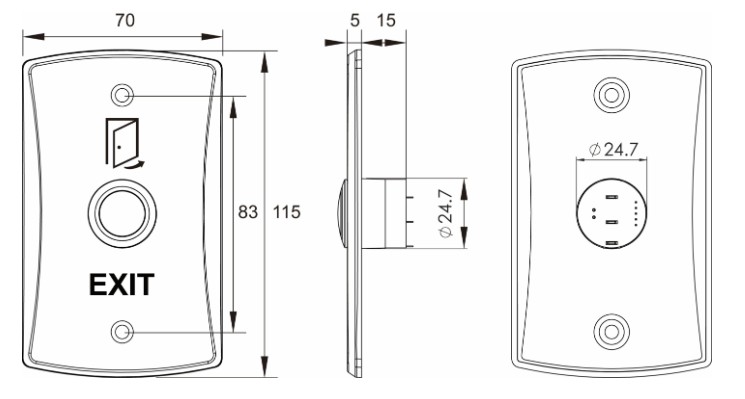

Dimension: mm

/storage/system/Exit_push_button/Dimension_for_PBT-095N.webp

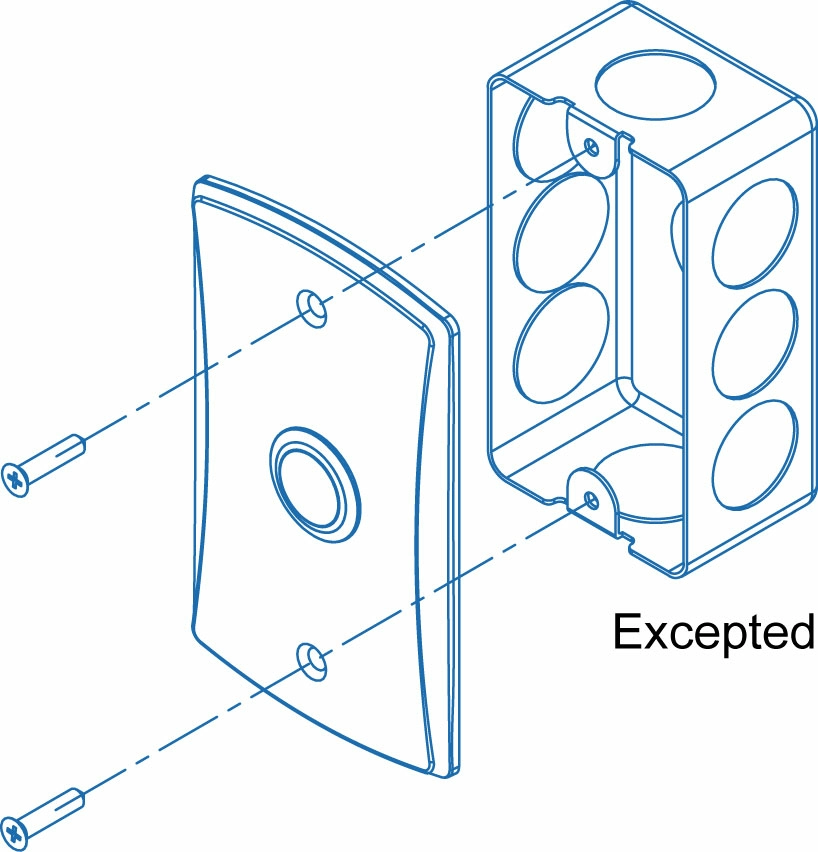

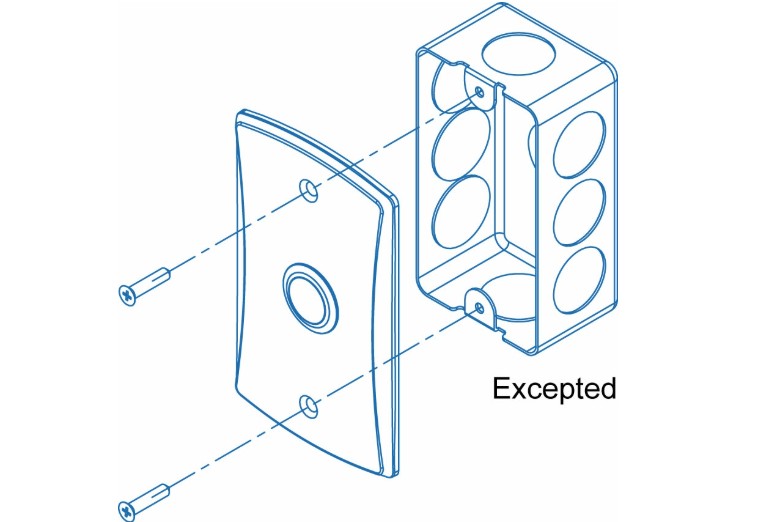

How to assembly

/storage/system/Exit_push_button/How_to_assembly_PBT-095.webp/storage/system/Exit_push_button/PBT-095N-mulit-language.webp

We reserve the right to change the specification without prior notice or obligation!

proimages/declaration-from-Pongee-Taiwan.jpg
Specification
Material
Zinc alloy
Hole distance
83mm
Operating temperature
0℃ ~ 55℃
Life
3,000,000 cycles (Mechanical) / 200,000 cycles (Electrical)
Size
5(plate) / 20(total depth) x 70(W) x 115(L)mm
Key stroke
1.0mm
Weight
132g±5%
Humidity
10%~80%
