PBT-09
PBT-09
PBT-09
HOME Product Exit Push Button (With LED)
SHARE
Model：PBT-09

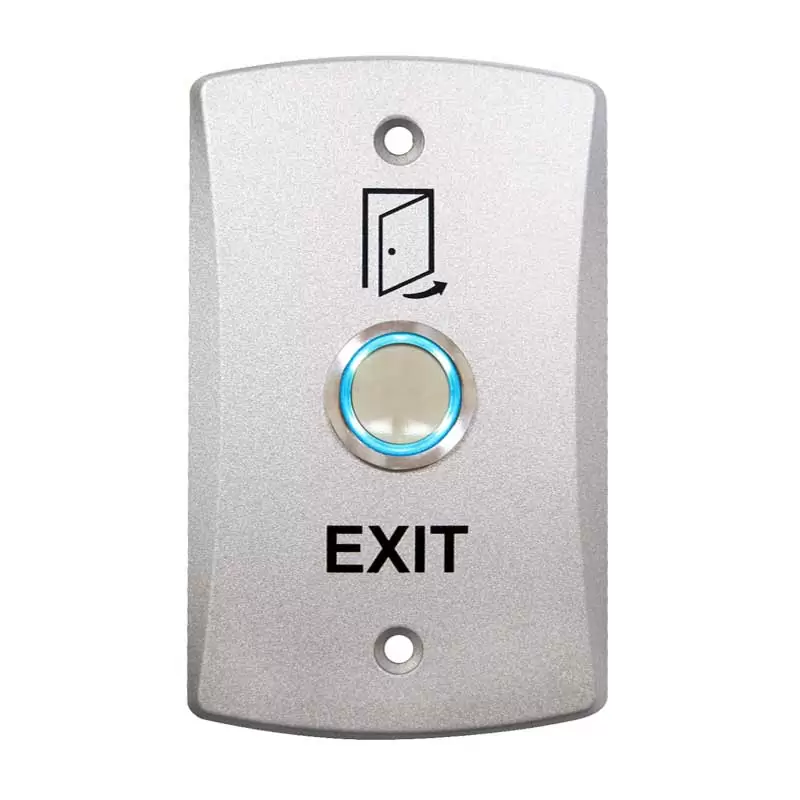

Exit Push Button (With LED)

compare Compare Request a Quote (0)
Product

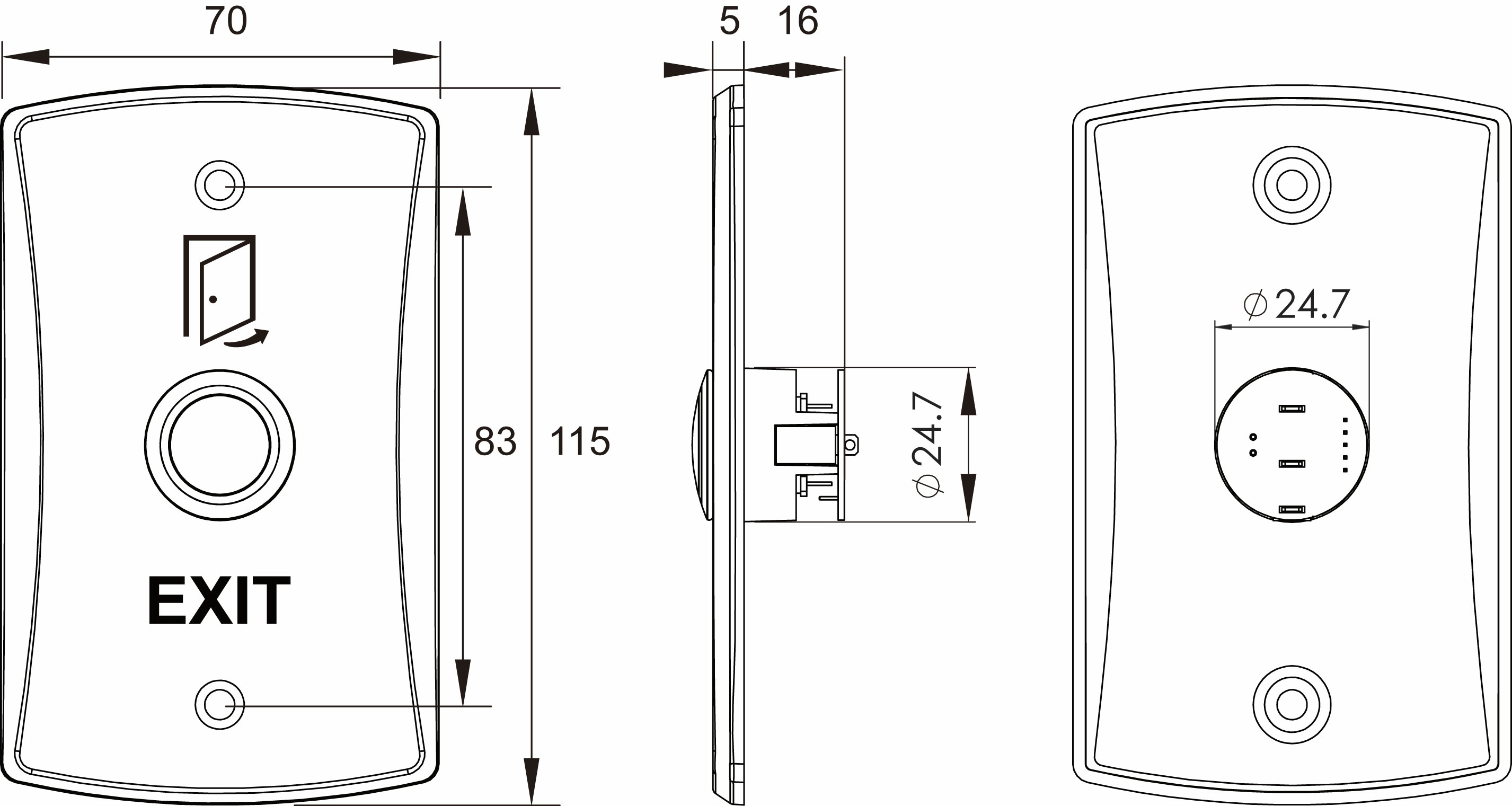

Dimension: mm

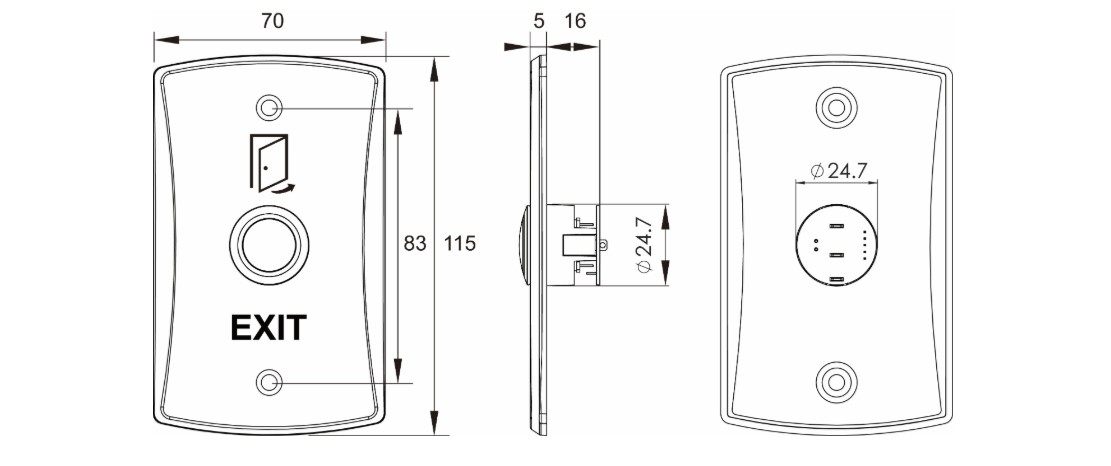

Exit Push Button (With LED)_PBT-09

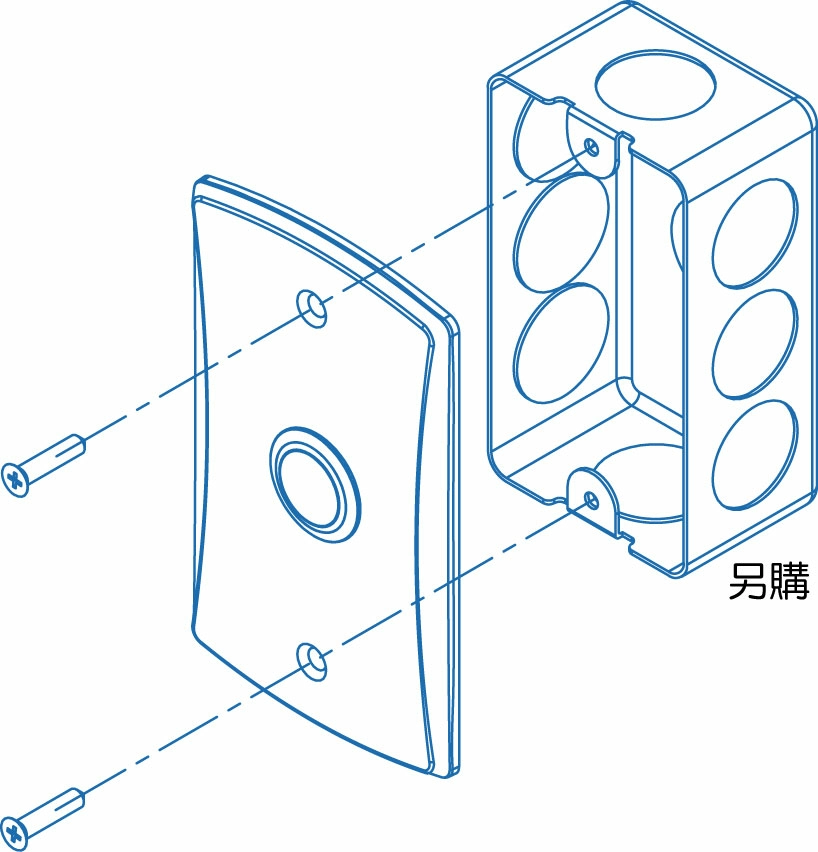

How to assembly

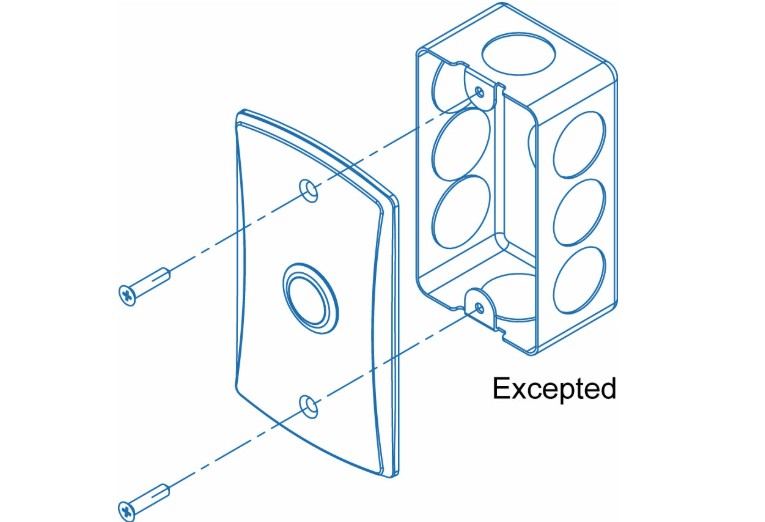

PBT-09N_How to assembly

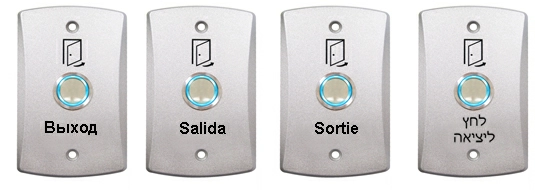

/storage/system/Exit_push_button/PBT-095-mulit-language.webp


We reserve the right to change the specification without prior notice or obligation!


proimages/declaration-from-Pongee-Taiwan.jpg
Specification
Size
5 (plate) / 21 (total depth) x 70 (W) x 115 (L)mm
Hole distance
83mm
Material
Zinc alloy
Power
DC 12V 1A
LED
DC12V 15mA
Life
3,000,000 cycles (Mechanical) / 200,000 cycles (Electrical)
Key stroke
1.0mm
Weight
132g±5%
Operating temperature
0℃ ~ 55℃
Relay
N.O. / N.C. / COM.
Type
Using OMRON basic switches
