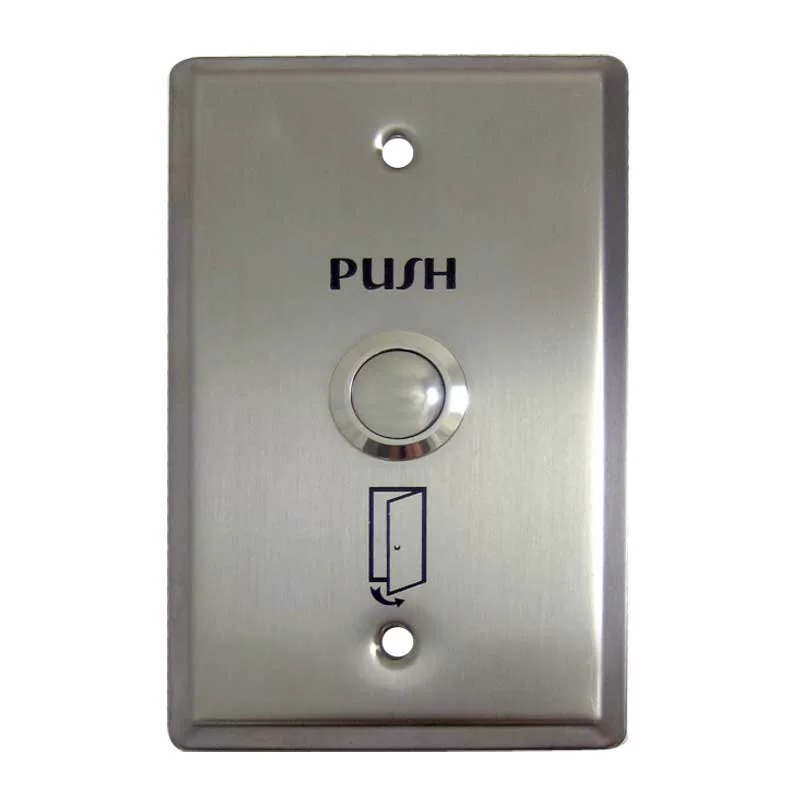

Model：PBT-211001

Exit push Button(switch sealed to IP65)

compare Compare Inquiry (0)
Product

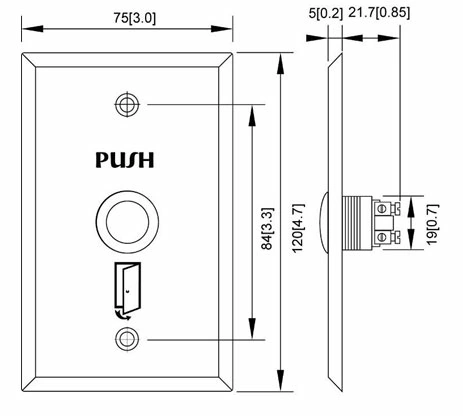

Dimension: mm[inch]

/storage/system/Exit_push_button/Dimensions-for-PBT-211001.webp

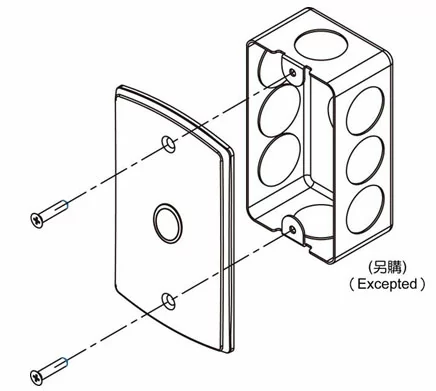

How to assembly

/storage/system/Exit_push_button/How-to-assembly-for-PBT-211001.webp

We reserve the right to change the specification without prior notice or obligation!

proimages/declaration-from-Pongee-Taiwan.jpg
Specification
Net Weight
60g±5%
Material
Face plate: stainless steel / Button: stainless steel
Hole distance
84mm
Maximum limit power
2A / 36V
Contact resistance
≦50mΩ
Insulation resistance
≧50MΩ
Operating temperature
-20℃ ~ 55℃
Life
1,000,000 cycles (Mechanical) / 200,000 cycles (Electrical)
Size
5(plate) / 26.7(total depth) x 75(W) x 120(L)mm
Key stroke
2 mm
IP Rating
Switch sealed to IP65
Circuit
PUSH ON
Insulation strength
500VAC 1min
