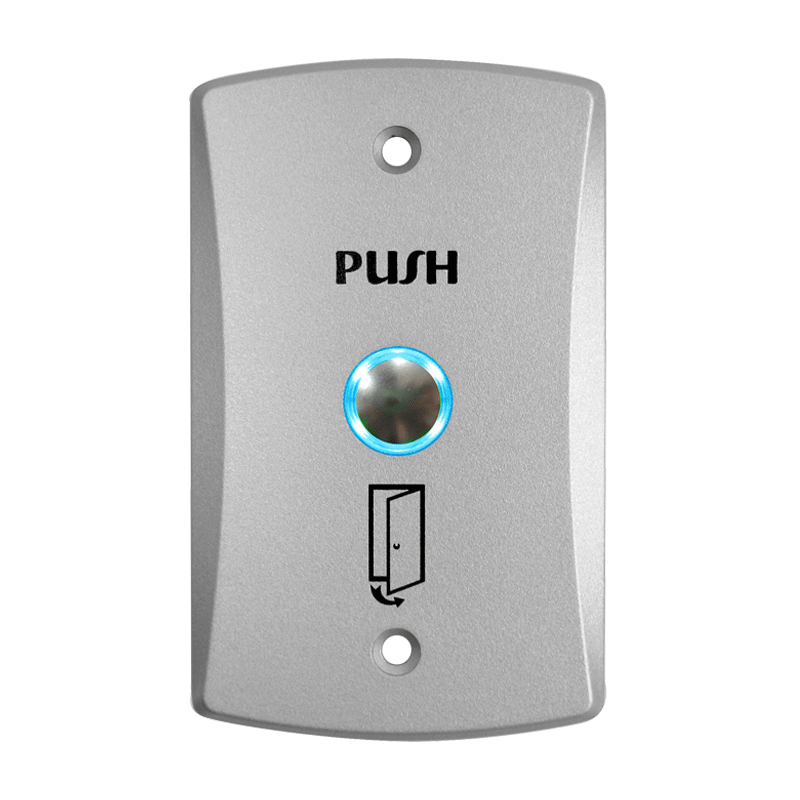

Model：PG-BUTTON-09BG
Bi-color LED push button
Product

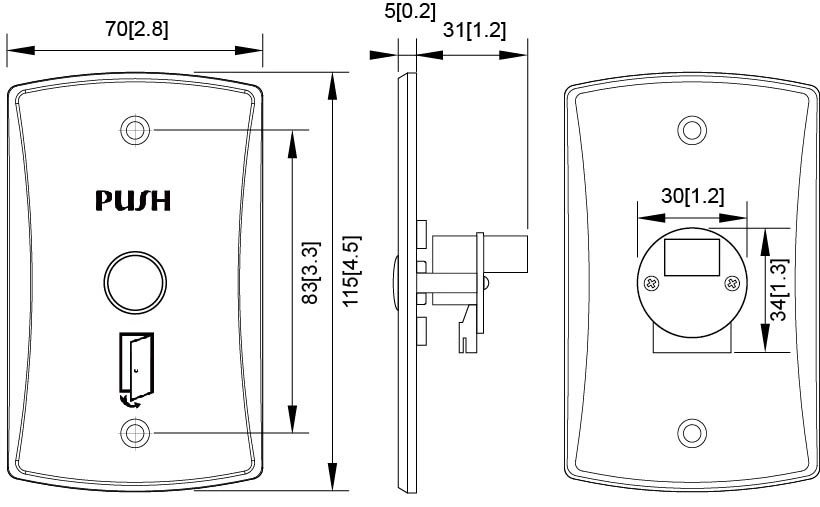

Dimension: mm[inch]

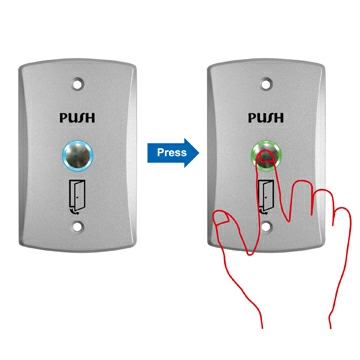

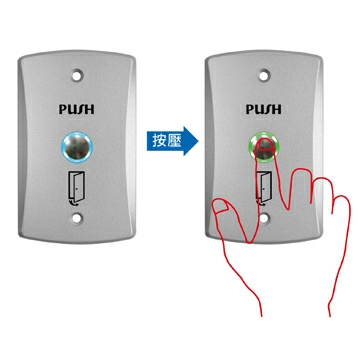

How to assembly
We reserve the right to change the specification without prior notice or obligation!
Specification
Size
5(plate) / 36(total depth) x 70(W) x 115(L) mm
Net Weight
124g±5%
Hole distance
83mm
Material
Zinc alloy
Operating temperature
0℃ ~ 55℃
Humidity
10%~80%
Power
DC 12V 1A
Standby current
10mA
Work current
20mA
LED indication
Blue (Power on) / Green (Press)
Life
3,000,000 cycles (Mechanical) / 200,000 cycles(Electrical)
Key stroke
1.0mm
Relay
N.O. / N.C. / COM.
Type
Using OMRON basic switches
