Model：PBT-07N

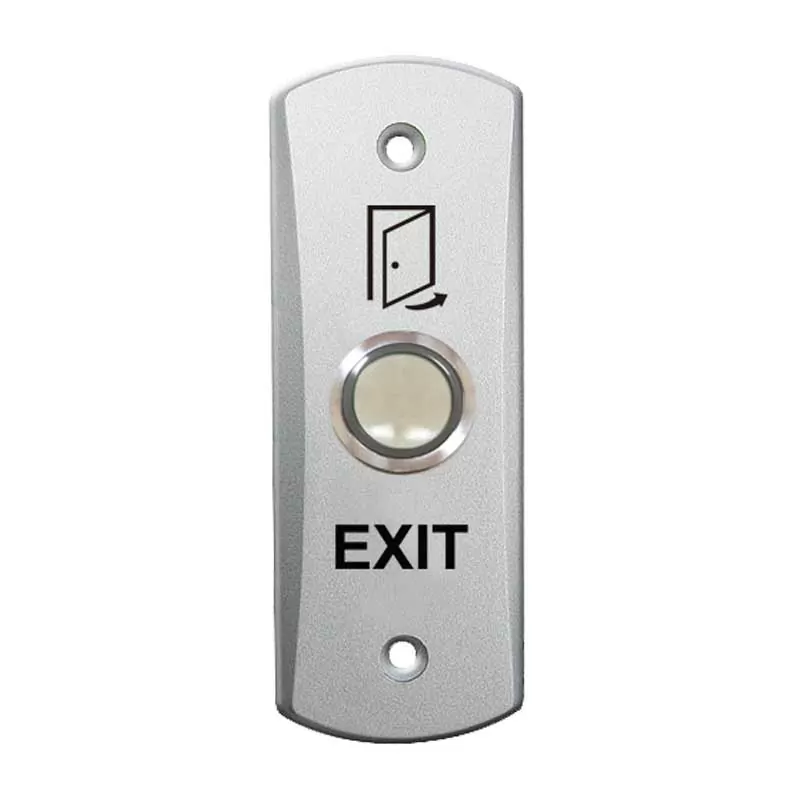

Mullion Exit Push Button

※The minimum order quantity:500 pcs

compare Compare Inquiry (0)
Product

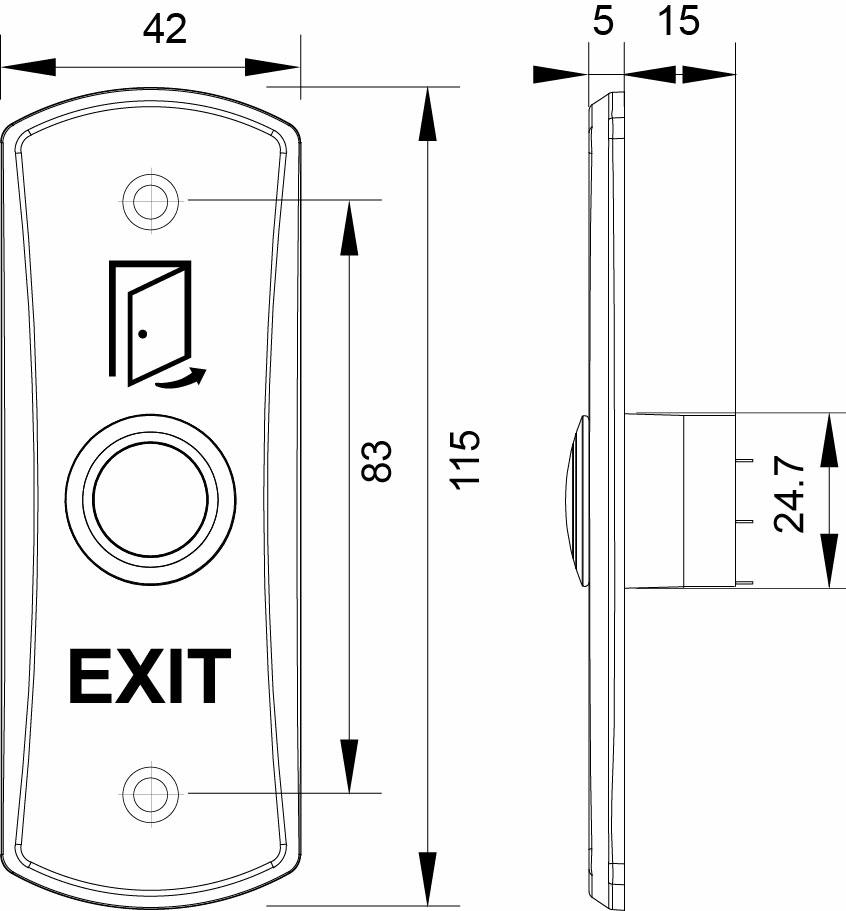

Dimension: mm

/storage/system/Exit_push_button/Dimensions_for_PBT-07.webp

We reserve the right to change the specification without prior notice or obligation!

proimages/declaration-from-Pongee-Taiwan.jpg
Specification
Material
Zinc alloy
Hole distance
83mm
Operating temperature
0℃ ~ 55℃
Life
3,000,000 cycles (Mechanical) / 200,000 cycles(Electrical)
Size
5(plate) / 20(total depth) x 42(W) x 115(L)mm
Power
DC 12V 1A
Key stroke
1.0mm
Humidity
10%~80%
