HOME Product Exit Push Button (With LED)
SHARE
Model：PG-BUTTON-09

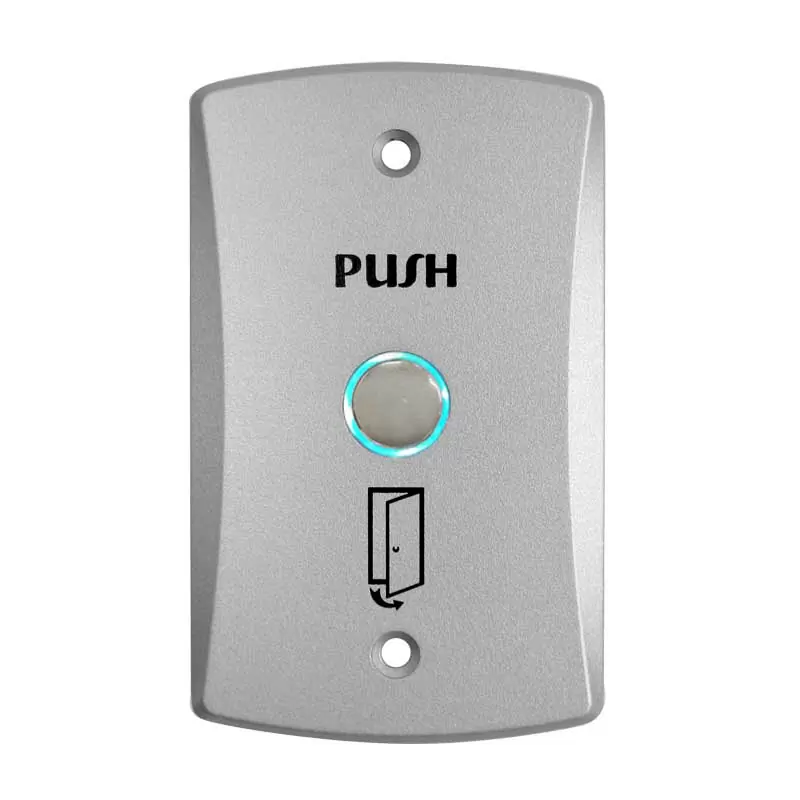

Exit Push Button (With LED)

compare Compare Inquiry (0)
Product

Dimension: Unit(mm)

/storage/system/Exit_push_button/dimensions-for-pg-button-09.webp

How to assembly

/storage/system/Exit_push_button/assemble-for-buttonE.webp
 /storage/system/Exit_push_button/multi-language.webp

We reserve the right to change the specification without prior notice or obligation!

proimages/declaration-from-Pongee-Taiwan.jpg
Specification
Material
Zinc alloy
Hole distance
83mm
Operating temperature
0℃ ~ 55℃
Life
3,000,000 cycles (Mechanical) / 200,000 cycles (Electrical)
Size
5(plate) / 25(total depth) x 70(W) x 115(L)mm
Power
DC 12V 1A
LED
DC12V 15mA
Key stroke
1.0mm
Weight
125g±5%
Humidity
10%~80%
