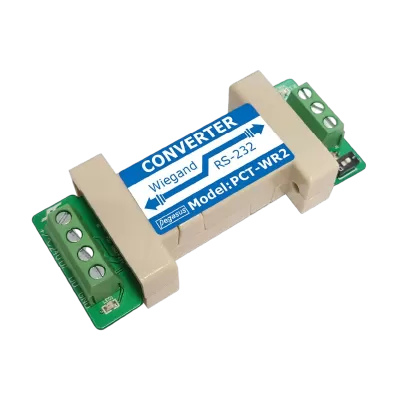

Wiegand to RS232 / RS485 Converter

Features

• The converter is designed for remote control where need Wiegand input but far from the control center to terminal. It a good two way transmit (bi-direction) communication device for access control system.
• Wiegand WG26, 34 automatically identification. (For other Wiegand or 485 (232)protocols, please provide information for customization)
• The conversion process should be manual setting by Switch. (Default is Wiegand to RS-485(RS-232))
• With Bi-Color status LED.

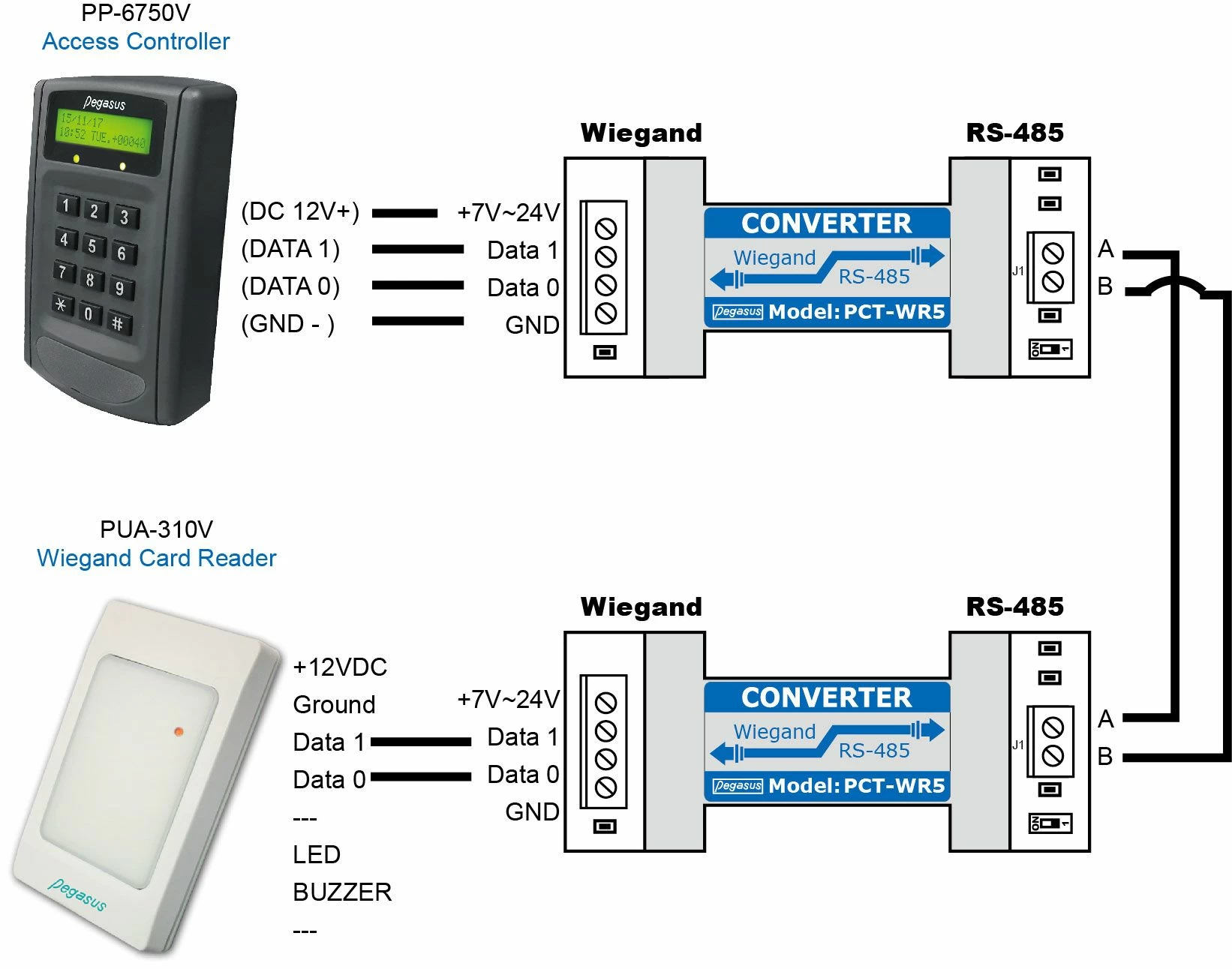

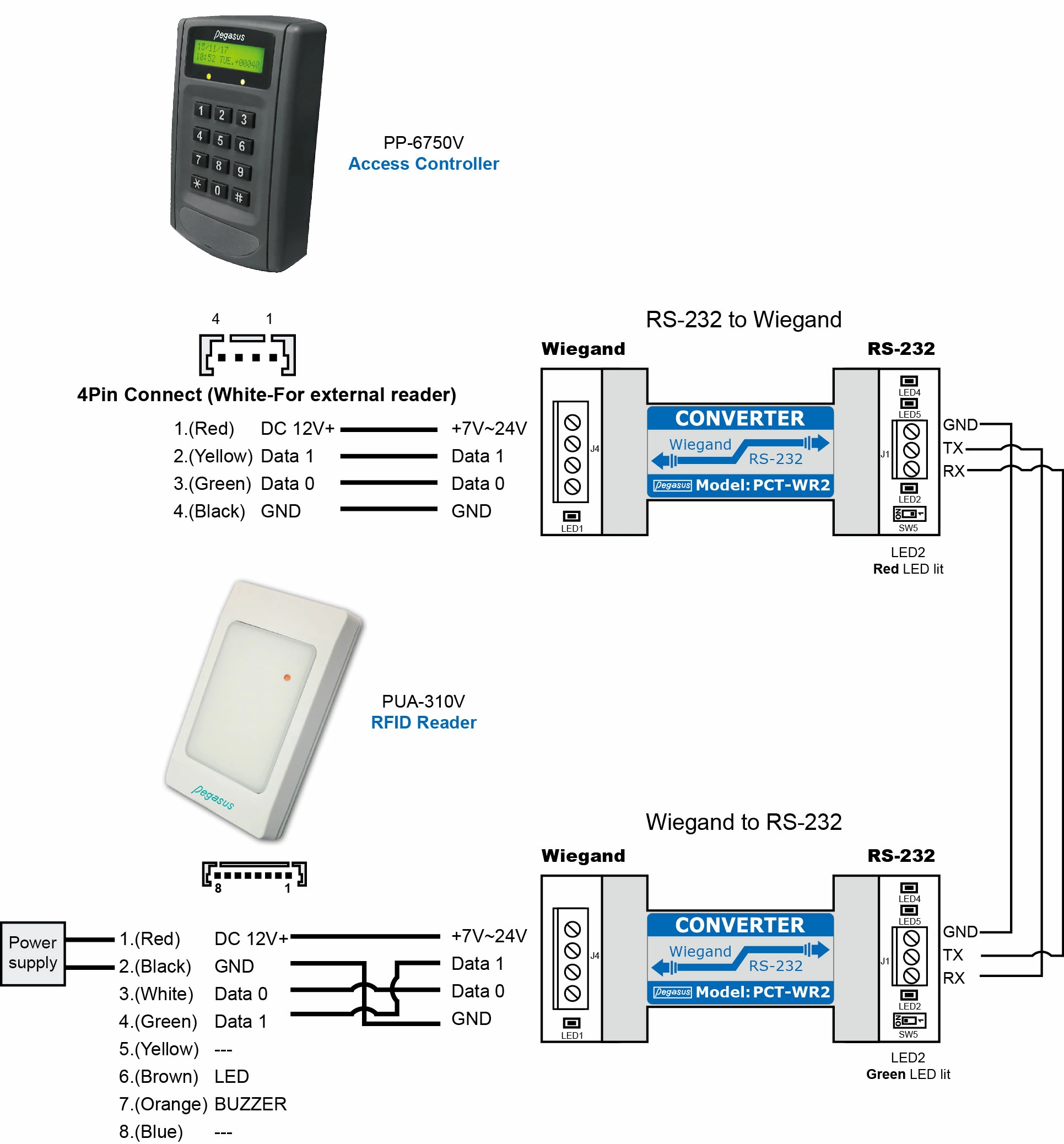

• This Wiegand signal extender needs 2pcs to work together.

Specifications

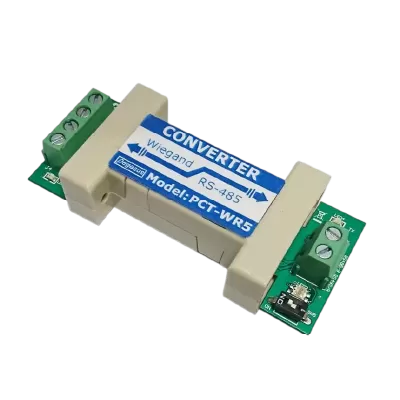

Appearance
Model No.	PCT-WR5	PCT-WR2
Signal	Wiegand /  RS-485	Wiegand / RS-232
Power Voltage	DC7-24V
Dimensions (LxWxH)mm	77x23x17
Output format can be customized(option)

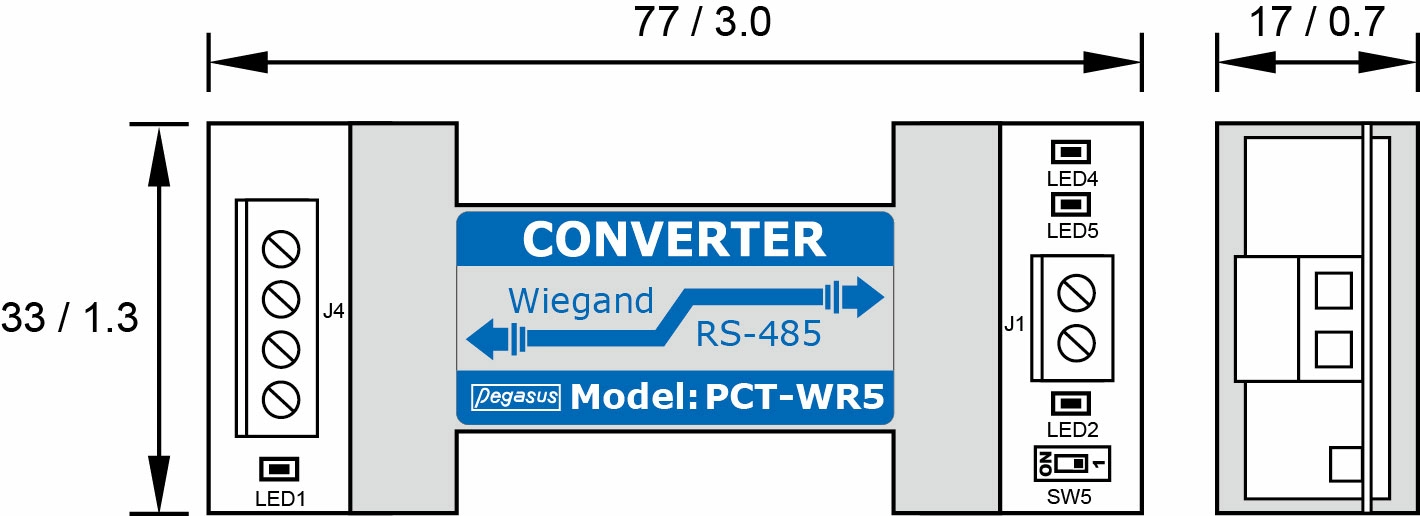

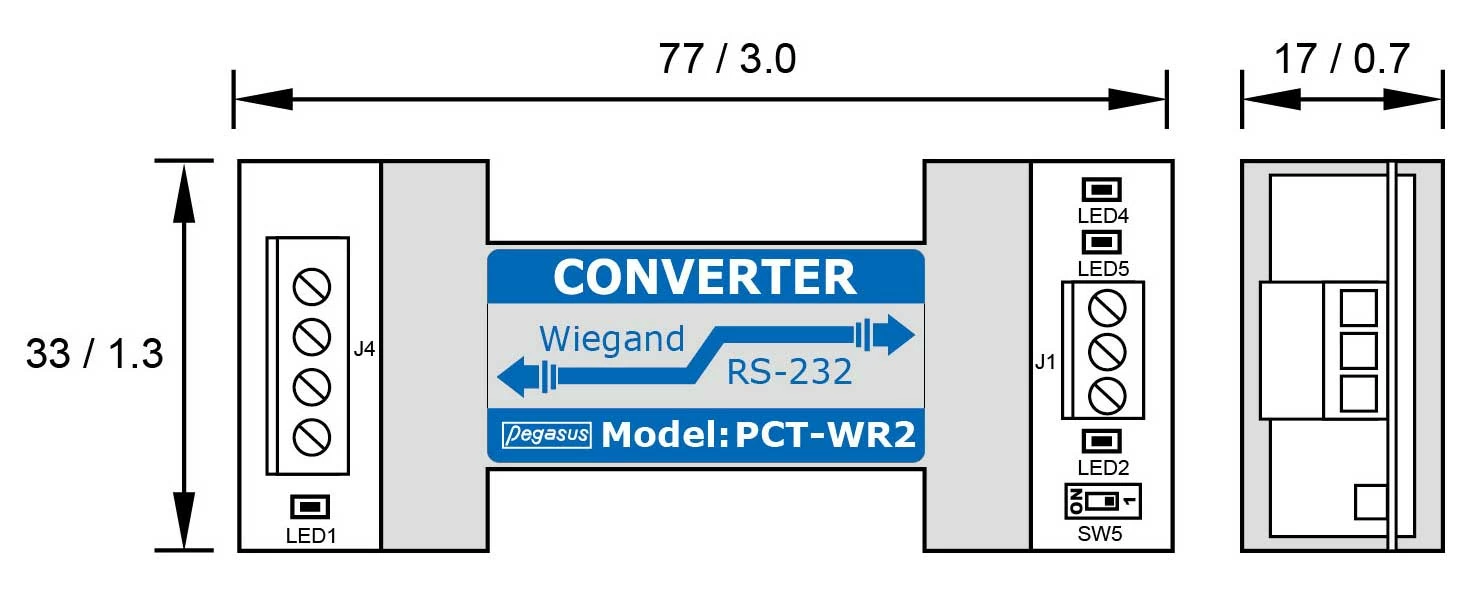

Dimensions: Unit(mm / inch)

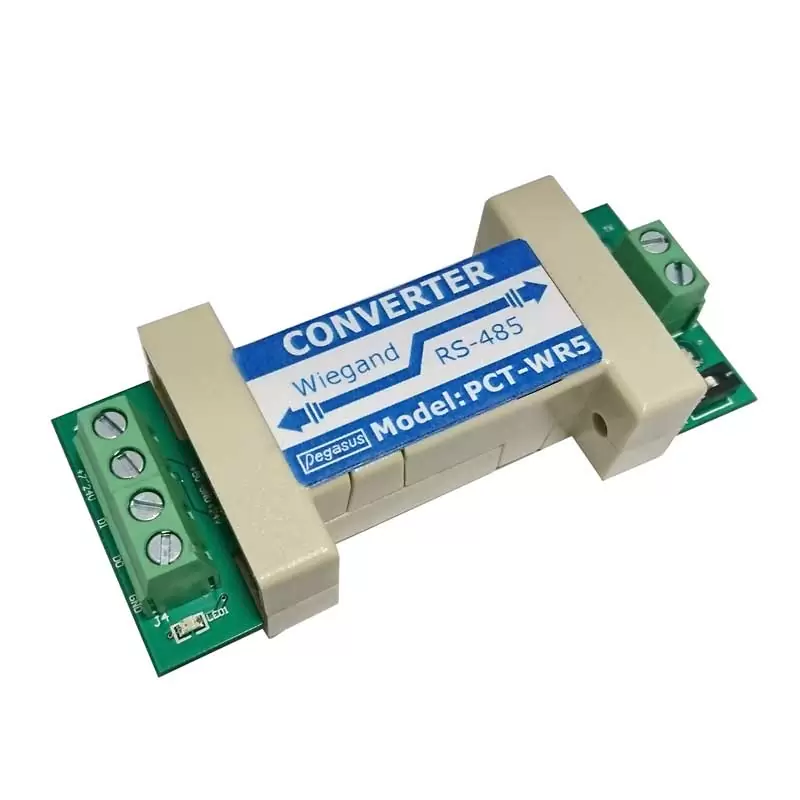

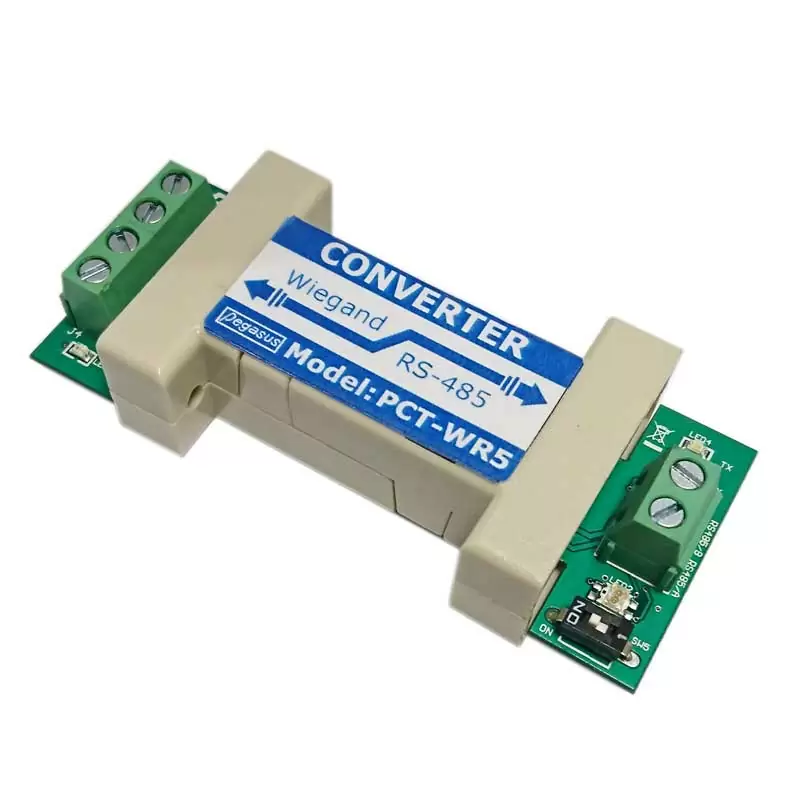

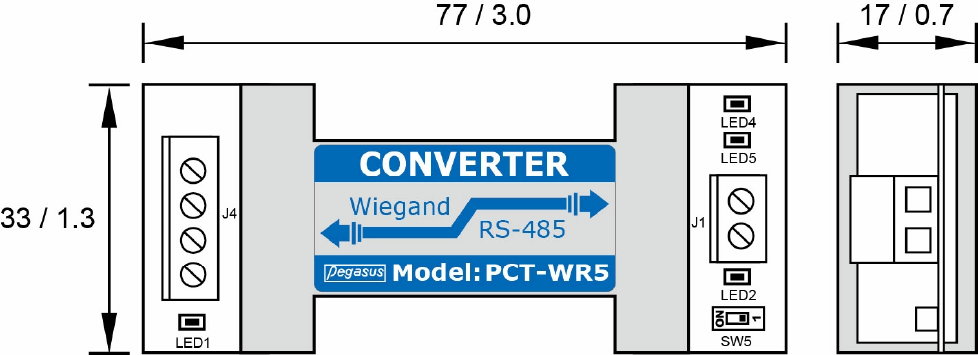

PCT-WR5

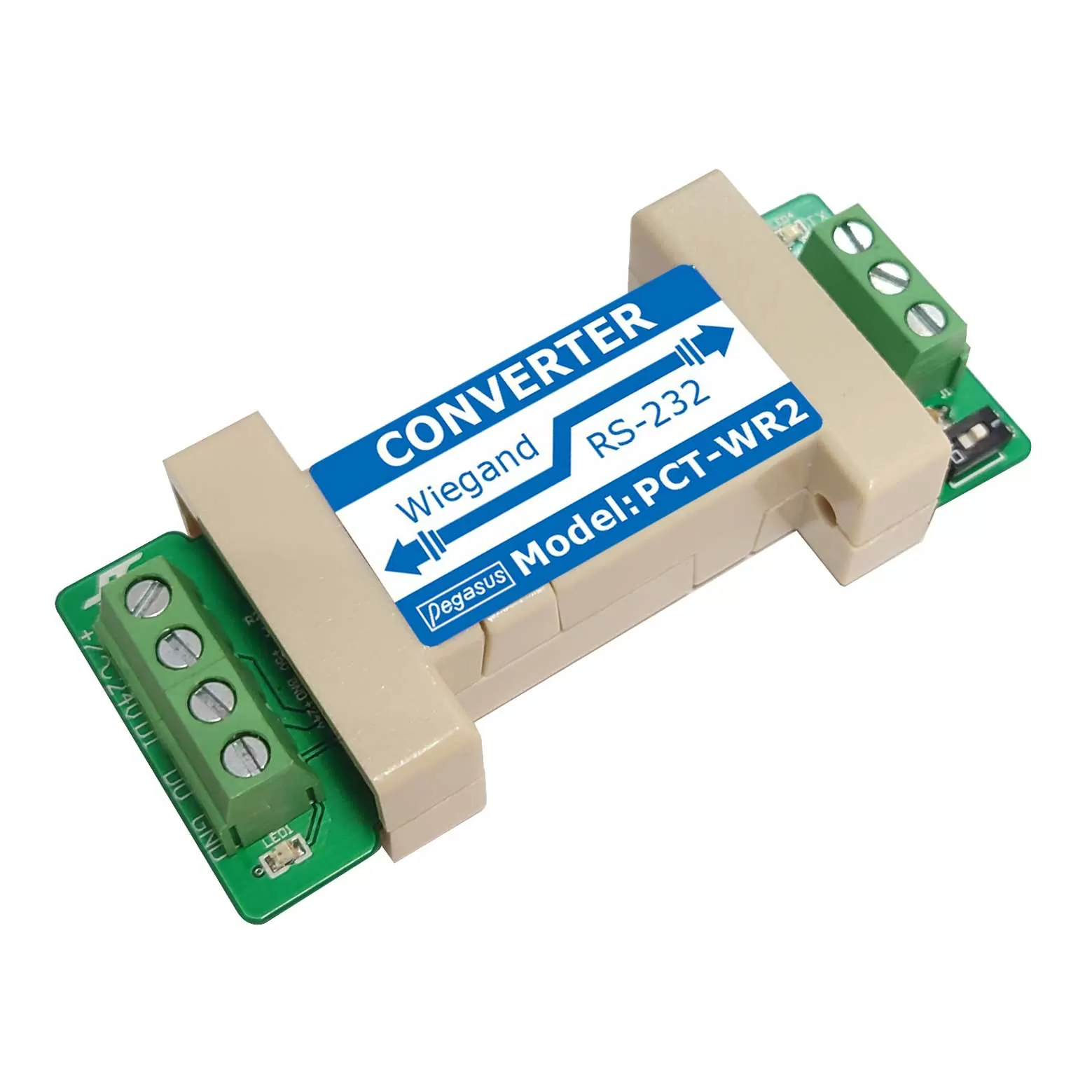

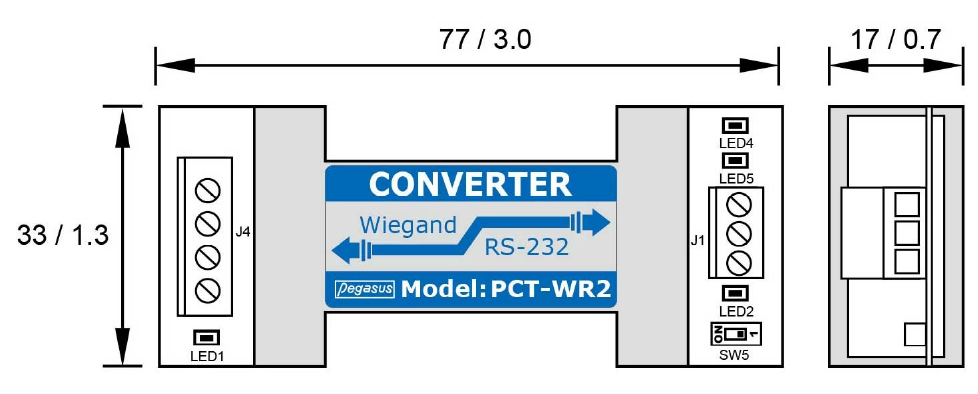

PCT-WR2

We reserve the right to change the specification without prior notice or obligation!
