Model：PM-S2E-D01TR25
UART(TTL), RS-232, RS-485 / Ethernet Converter Module
Compare
Product
Product Description
PM-S2E-D01TR25 is an embedded module for conversion between UART (TTL)/RS-232/RS-485 signal and Ethernet network data signal. This module is suitable for direct connection with the MCU and CPU. Through this module, your device can be treated as internet host for sending and receiving data.
Features
- Auto-connection
- Auto-recovery
- Protocol conversion
- Easy to upgrade
- Digital TTL I/O controlled via Ehternet

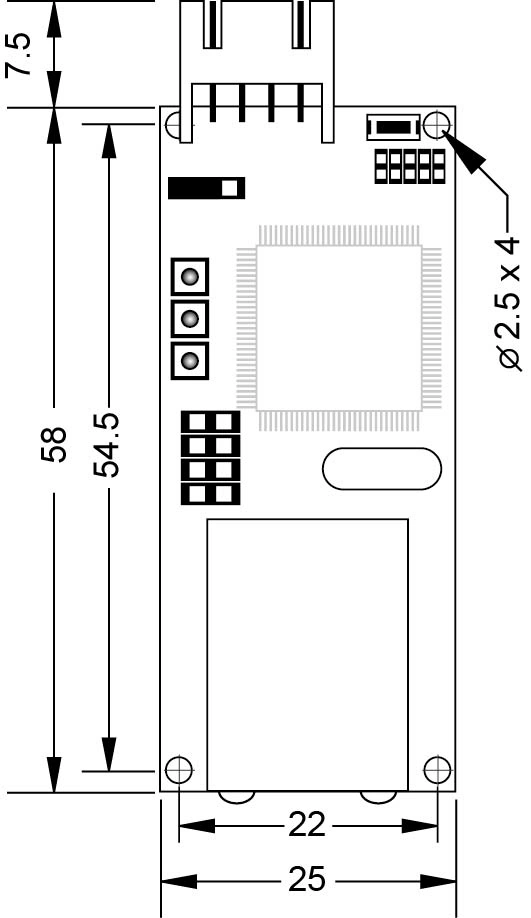

Dimensions: Unit(mm)
We reserve the right to change the specification without prior notice or obligation!
Specification
Dimensions
58(L) x 25(W)mm
Operating temperature
-10℃ ~ 80℃
Memory
256K bytes Flash Memory, 64K bytes SDRAM
Operating humidity
10%~90%
Power input
DC 3.3V / 5V
Protocol
TCP , UDP , IP , ARP , ICMP , Ethernet MAC, DHCP
Network interface
10/ 100 Base-T Ethernet
Serial line format
none parity, 8 data, 1 stop
Serial signal
RX(TTL), TX(TTL), RS-232, RS-485
Transmission speed
110bps ~ 230,400bps
CPU
ARM (32bit MCU)
