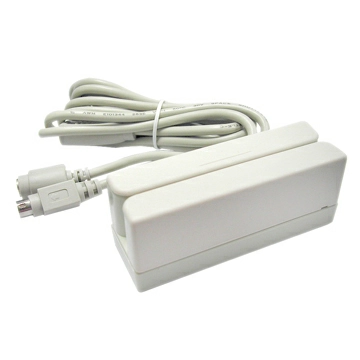

Mag. Card Reader (PC keyboard emulator(PS2))

Specifications

• Medium format: 300 o.e ~4000 o.e
• Card standard: ANSI, ISO, ABA , AAMVA, California Driver License
• Card feed: Bi-direction, 5-45 IPS for reading and 5-35 IPS for encoding
• Magnetic head life: 300,000 passes minimum (optional 1000,000 passes)
• Track configuration:
  Single (1 or 2 or 3)
  Dual (12 or 23)
  Triple (1 2 3)
• Output interface: PC keyboard emulator(PS2)
• Operating voltage: 5V DC ± 5%
• Power consumption: 5mA without decoder, or 45mA with decoder
• Operation temperature: -15 ℃ ~ 55 ℃
• Storage temperature: -20℃ ~ 70 ℃
• Humidity: 10 to 90% RH
• Dimensions: 100(L) x 34(W) x 40(H) mm / 3.94(L) x 1.34(W) x 1.57(H)inch
• Weight: 167g ±5%
• Mounting options: Velcro pads (Keyboard mounting)

We reserve the right to change the specification without prior notice or obligation!
