Model：PG-PROXK-PE-V1

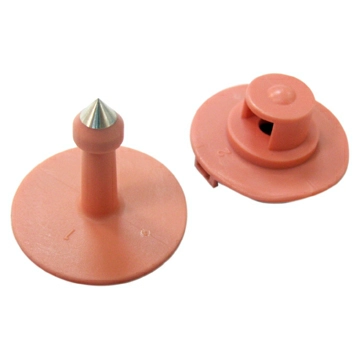

134.2KHz Livestock Tag - Pig Ear Tag
※The minimum order quantity: 3,000 pcs
Product
Features
PG-PROXK-P/E-V1 is produced by injection molding with preplaced chip and coil inside. The IP68 housing of this tag can withstand the harsh environment in pig pen and make the traceability in pork industry more reliable.
Specification
| Diameter | 28 mm (Ø 28 mm) |
| Thickness | 1.6 mm |
| Center Hole | 5.5 mm (Ø 5.5 mm) |
| Frequency | 134.2 kHz |
| RFID Chip | EM4105 |
| Reading Range | Depending on the reader design |
| Material | TPU (Thermoplastic Polyurethane) |
| Operating Temperature | -25°C ~ 50°C |
| Storage Temperature | -25°C ~ 100°C |
| Assembly / Process | Injection |
| IP Rating | IP68 |
| Standard Color | Pink |
| ISO Standard | ISO 11784 / ISO 11785 (FDX-B) |
| Available RFID Chips | 134.2 kHz: EM4200 (R/O), EM4305 (R/W) |
Specification
Diameter
28 mm
Thickness
1.6 mm
Center hole
5.5 mm
Frequency
134.2KHz
RFID chip
EM4105
Reading range
Depending on the reader design
Material
TPU (Thermoplastic Polyurethane)
Operating temperature
-25℃ to 50 ℃
Assembly
Injection
Storage temperature
-25 ℃ to 100℃
IP Rating
IP68
Standard color
Pink
ISO standard
ISO11784 / ISO11785 (FDX-B)
Available RFID Chip
134.2 KHz EM4200(R/O), EM4305(R/W)
