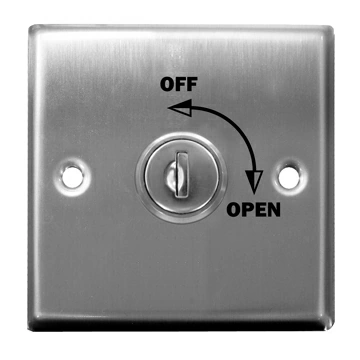

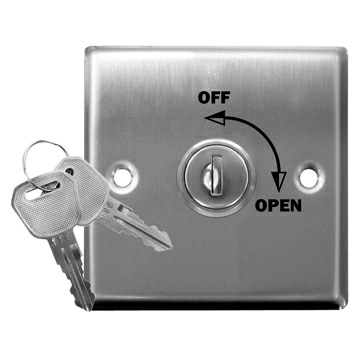

Model：PG-K286A
British Standard Key Switch
※The minimum order quantity: 300 pcs
Compare
Product
Features
Installation of this product can prevent the access controller failure or other unexpected accidents result in electric lock can not open the door with a key forced to switch N.O. or N.C. contacts to open the door, the product is recommended to install in the secret place to prevent the destruction of. Parallel or series in UPS (uninterruptible power system) and electric lock (Fail-safe / Fail-secured).

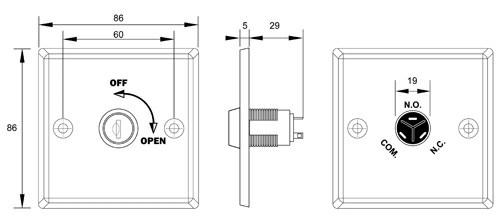

Dimension: Unit(mm)
We reserve the right to change the specification without prior notice or obligation!
Specification
Dimensions
5(plate)/34(total depth) x 86(W) x 86(L)mm
Material
Face plate : stainless steel(Thickness: 1mm) Key switch : zinc alloy
Hole distance
60mm
Maximum limit power
125VAC / 4A, 250VAC / 2A
Contact resistance
10Milli-Ohms Max.
Insulation resistance
200 Meg-Ohms Min.(500VDC)
Dielectric strength
1000 VAC - 1 Minute
Operating temperature
-20℃ ~ 55℃
Storage temperature
<80%RH
Life
10,000 cycles
