Key Switch(With LED)

Product Description

Key switch can display LED current status and used for equipment status control. User can use the key to switch ON or OFF contact. It also can prevent touching mistake to cause the equipment damage.

Specification

• Dimensions : 5(plate)/29.6(total depth) x 70(W) x 115(L)mm
• Net weight : 150g ± 5%
• Hole distance : 83mm
• Material : Face plate: Zinc alloy    Key switch: Zinc alloy
• Power input : +10~40VDC
• Contact resistance : 10Milli-Ohms Max.
• Insulation resistance : 200 Meg-Ohms Min.(500VDC)
• N.C./N.O. currentN.C. / N.O. current : 1.7mA@+10VDC  4.7mA@+24VDC  8.1mA@+40VDC
• Operating temperature : -20℃ ~ 55℃
• Humidity : <80%RH
• Life : 100,000 cycles

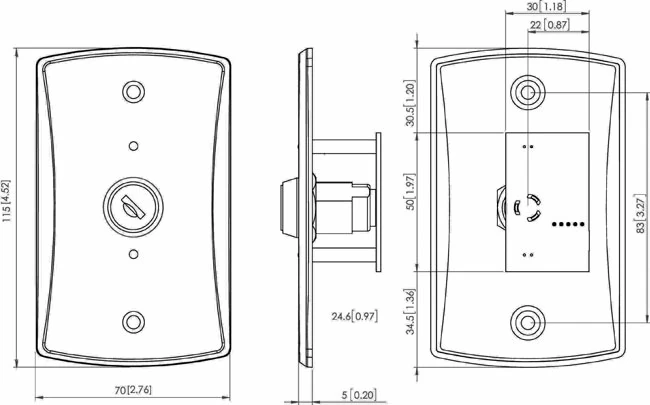

Dimension: Unit: mm[inch]

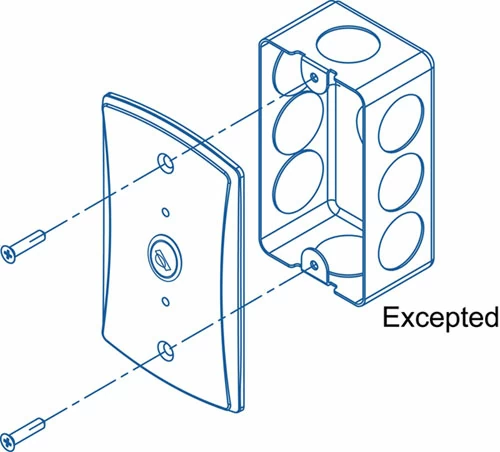

How to assembly

We reserve the right to change the specification without prior notice or obligation!
