Model：PG-K212BL
Mullion Tubular Key Switch
※The minimum order quantity: 300 pcs
Compare
Product
Features

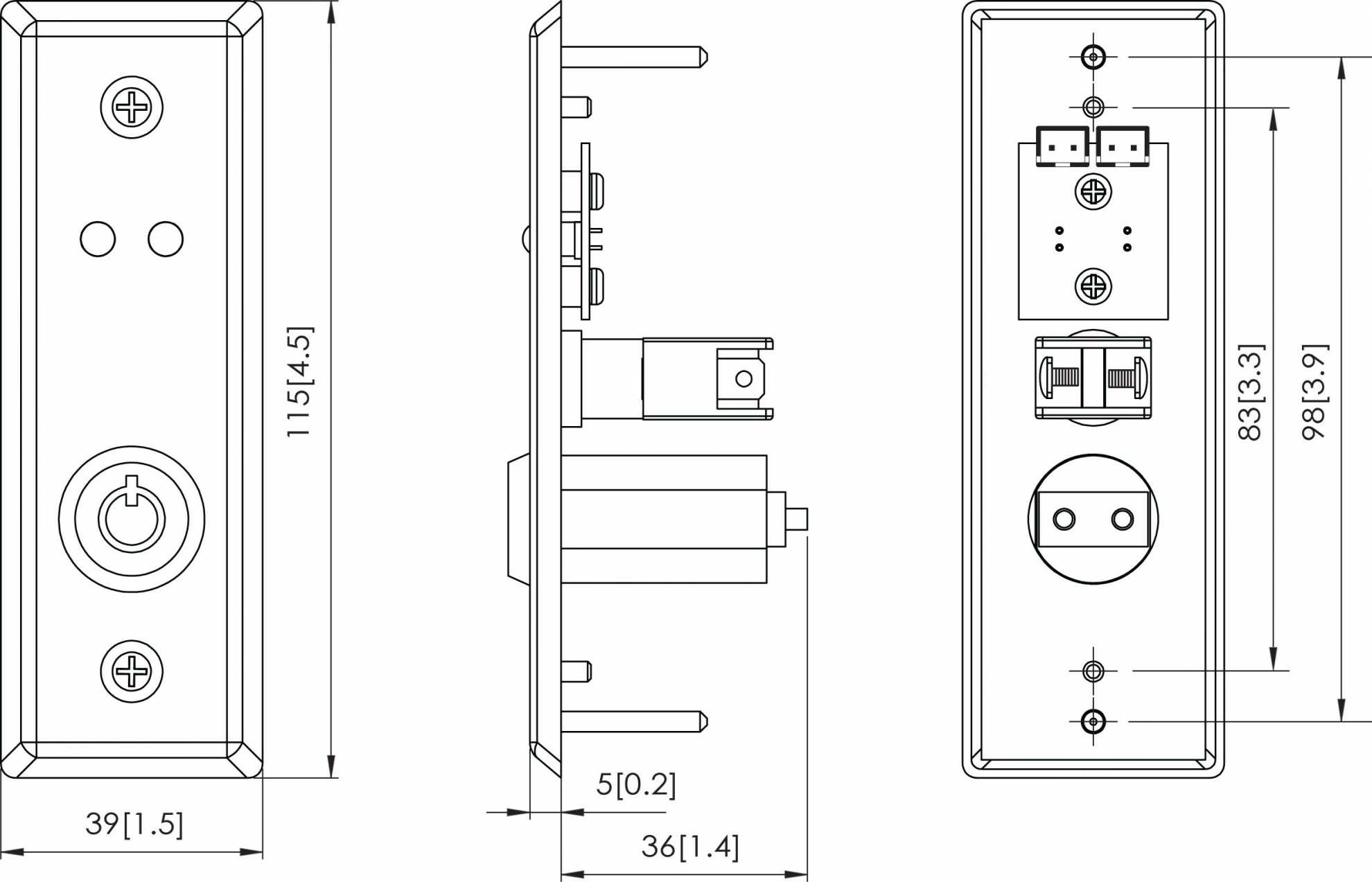

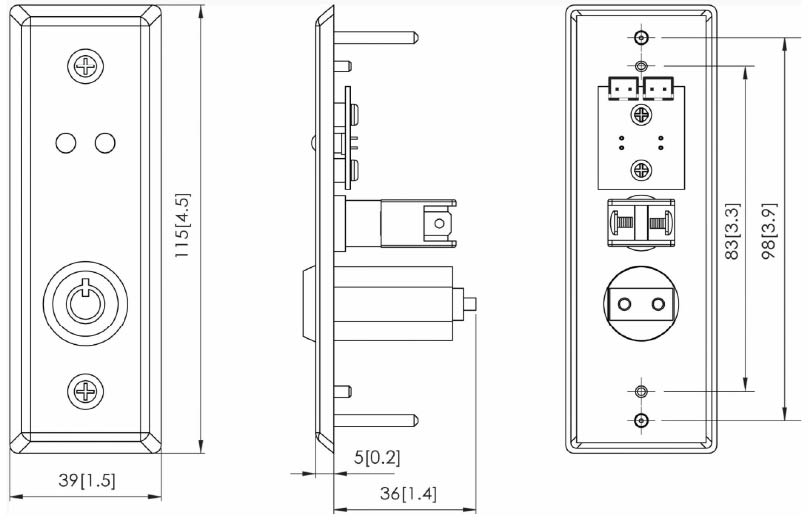

The PG-K212BL is a tubular key switch with LED & tamper switch. Designing with stainless-steel plate and built-in tamper switch which provides trigger of alarm if there’s any attempt to dismantle. The two LEDs supply status indication. Also supplies up to 10,000 different keys for purchasing.Dimension: mm[ inch]
＊We reserve the right to change the specification without prior notice or obligation!
Specification
Dimensions
39(W) x 115(L) x 41(H)mm
Material
Face plate: Stainless steel
Maximum limit power
4A 125VAC, 2A 250VAC
Contact resistance
10Milli－Ohms Max.
Insulation resistance
500 Ｍeg－Ohms Min.(500VDC)
Dielectric strength
1500VAC－1Minute
Installation diameter
31mm/ 1.22 inch
Contact
Silver plate
LED Power Input
DC +12V
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
