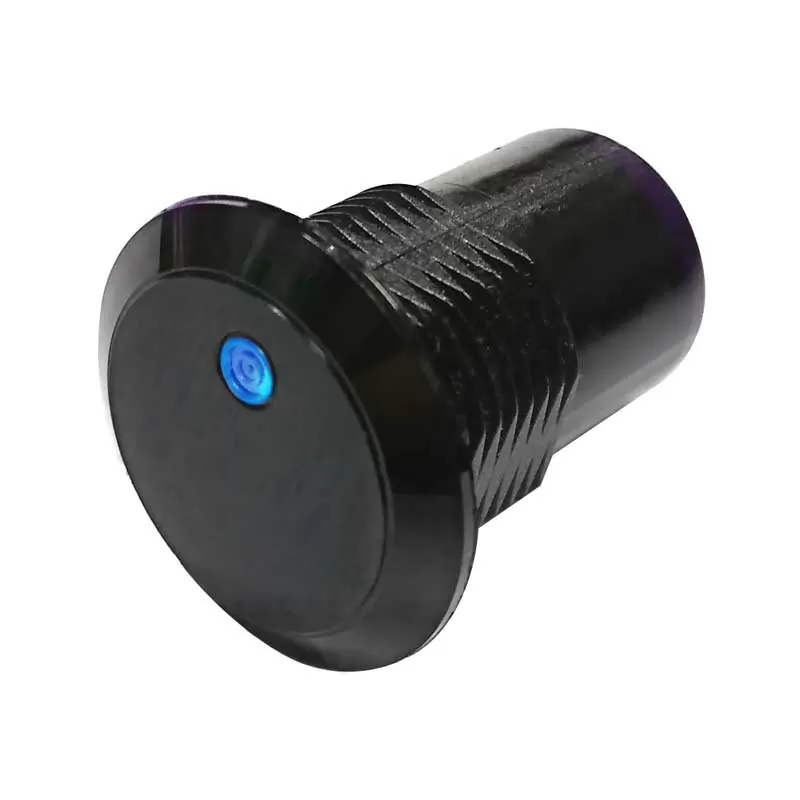

Model：PBT-22IRV
IR Proximity Sensor, ø22mm, Polycarbonate
Compare
Product
Features
- Form C relay output (1A@30VDC)
- Adjustable output time 0.5~20 sec. Trigger / Toggle
- Adjustable sensing range 0.5~10cm/3-15cm
- Voltage : 10V/24V DC (auto-adjusting)
- Front panel IP65 weatherproof for outdoor use
Specification
| Model No. | PBT-22IRV | PBT-22IRSV |
|---|---|---|

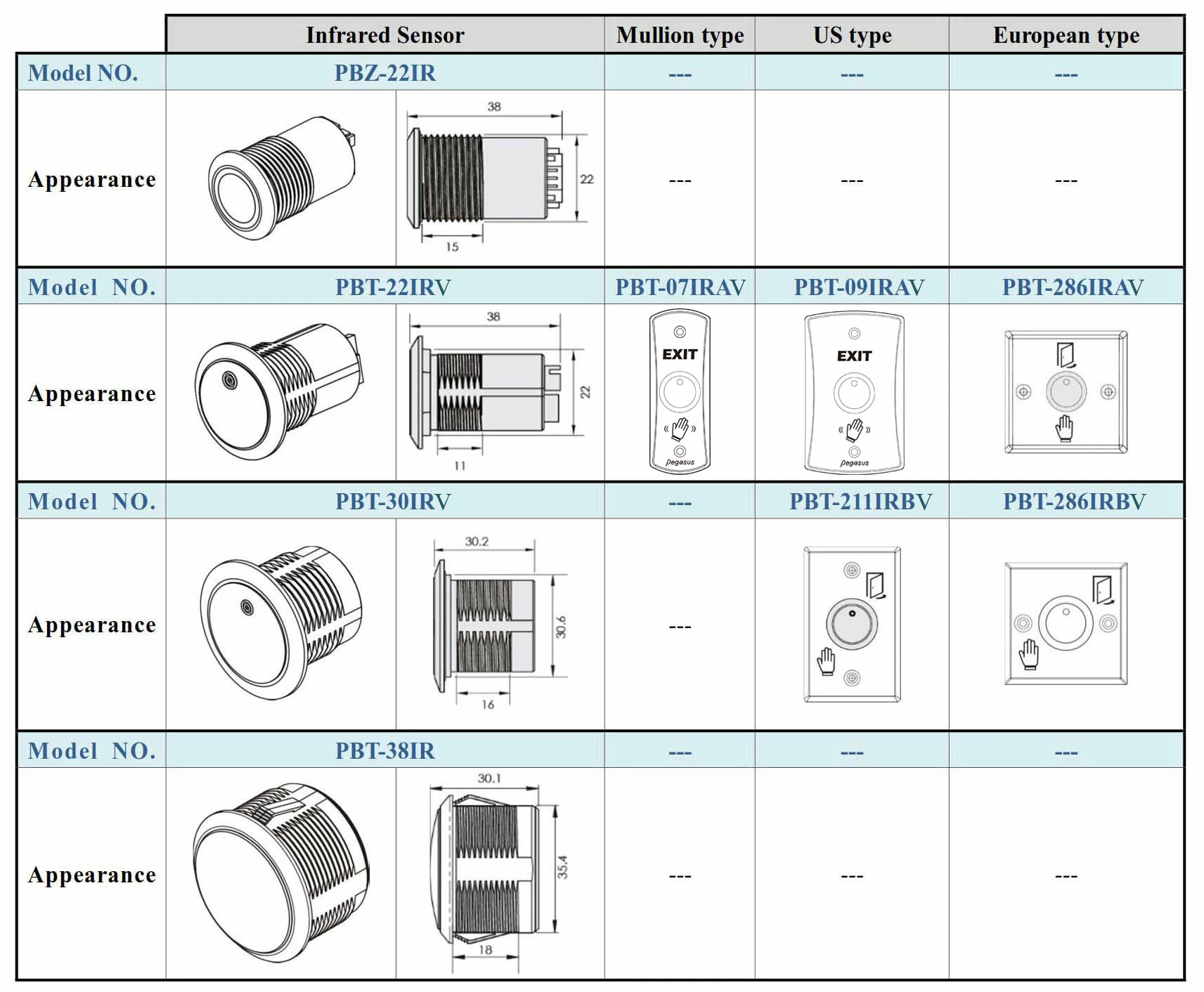

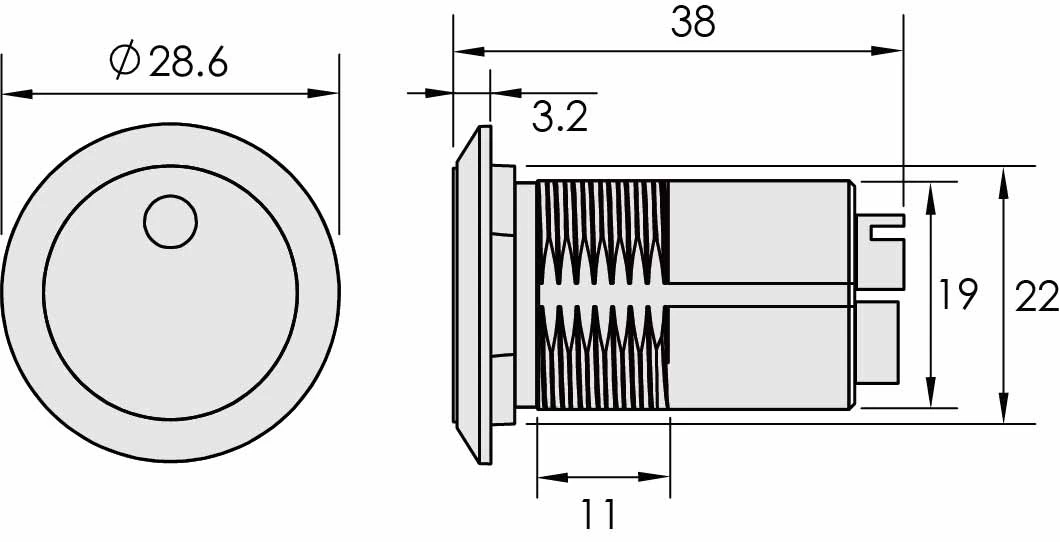

| Dimension(mm) |  |
|
| Voltage / Current | DC10V (47mA)~24V(28mA) | |
| Relay type | Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC | |
| Output time | 0.5~20 sec, Trigger / Toggle | |
| Sensor Range | 3~15cm | 0.5~10cm |
| LED Status indicator | Power on: Red, Proximity: Blue (Optional Blue/Green) | |
| Case material | UV & Fire Polycarbonate | |
| IP Rating | IP65 | |
| Operating life | Relay: 100,000 cycles | |
Example Applications
| Elevator Buttons | Parking Lot Ticket Machine | Water Dispensers |
 |
 |
 |
| Ticket Machine | Device Switch | Hospital Door/Operating Room Automation control |
 |
 |
 |

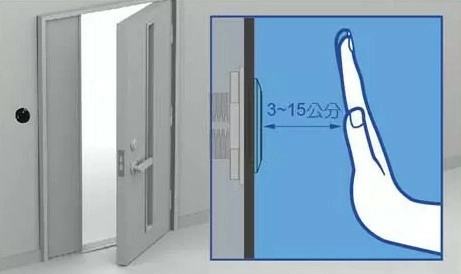

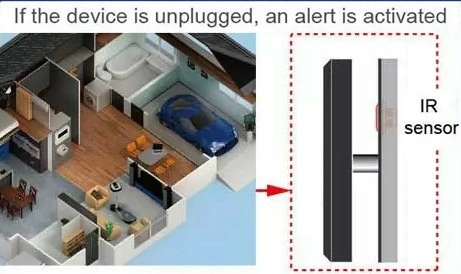

| Anti-theft Detection | Automatic Location Detection | Gate/Door/Exit Automation control |
 |
 |
 |
Ordering information
| PBT-22IRV | DC10~24V Contactless Infrared Sensor Switch, Adjustable proximity range: 3~15cm |
|---|---|
| PBT-22IRSV | DC10~24V Contactless Infrared Sensor Switch, Adjustable proximity range: 0.5~10cm |
We reserve the right to change the specification without prior notice or obligation!
Specification
IP Rating
IP65
Voltage / Current
DC10V (47mA)~24V(28mA)
Relay type
Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC
Output time
0.5~20 sec, Trigger / Toggle
LED Status indicator
Power on: Red, Proximity: Blue (Optional Blue/Green)
CASE MATERIAL
UV & Fire Polycarbonate
Operating life
Relay: 100,000 cycles
