Model：PBT-38IR
IR Proximity Sensor, ø38mm, Metal+Polycarbonate
Compare
Product
Features
- Form C relay output (1A@30VDC)
- Adjustable output time 0.5~20 sec. Trigger / Toggle
- Adjustable sensing range 3~10cm
- Voltage : 10V/24V DC (auto-adjusting) (24V AC Optional)
- Front panel IP54 weatherproof for outdoor use
Specification

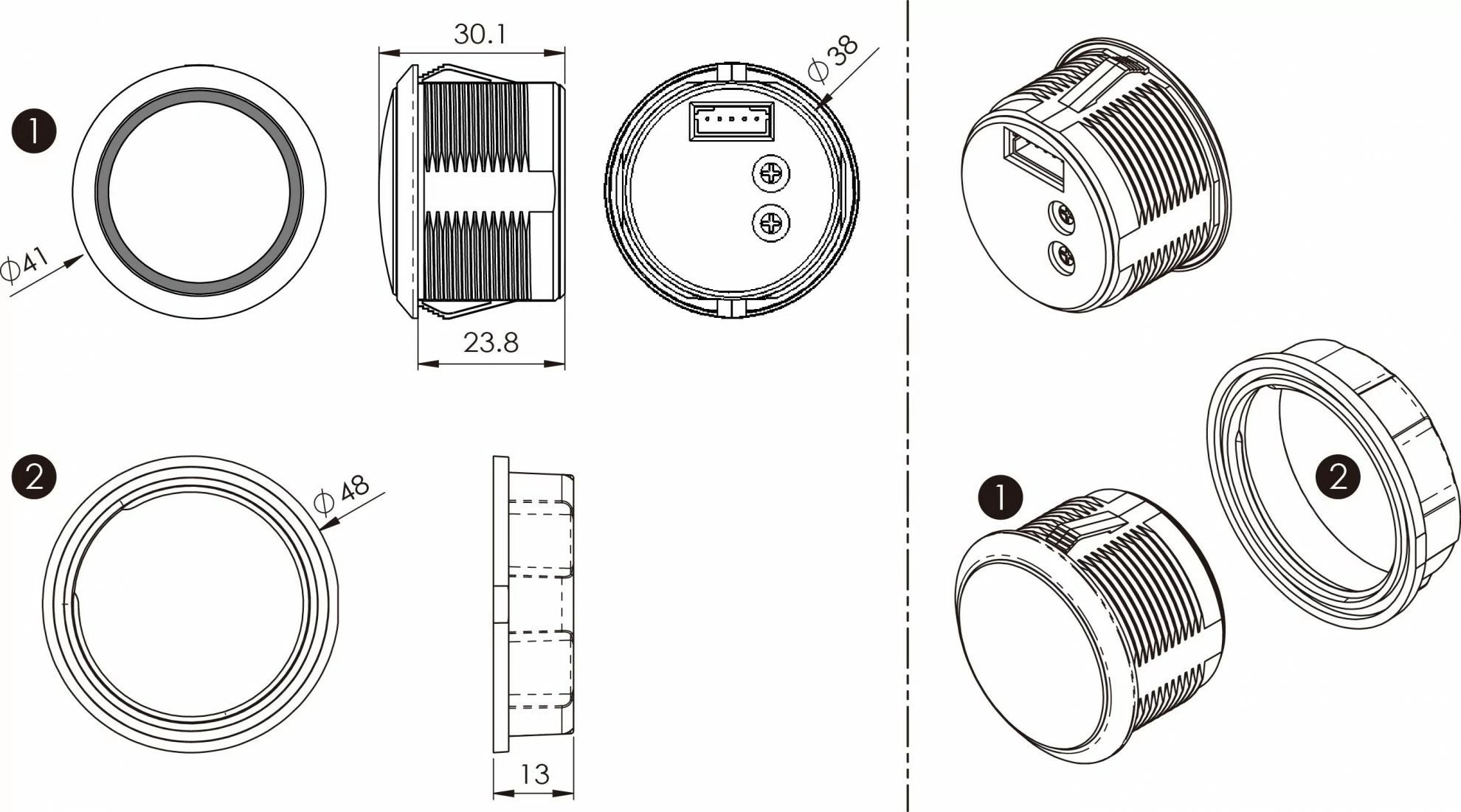

| MENSION(MM) |  |
|
| VOLTAGE / CURRENT | DC10V (55mA)~24V(33mA) | |
| RELAY TYPE | Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC | |
| OUTPUT TIME | 0.5~20 sec, Trigger / Toggle | |
| SENSOR RANGE | 3~10cm | |

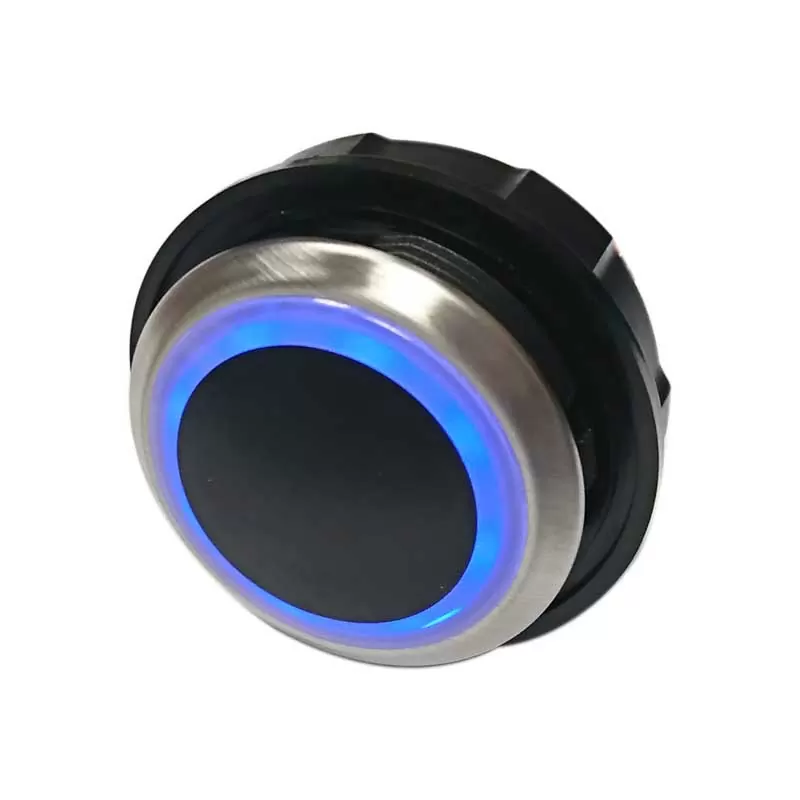

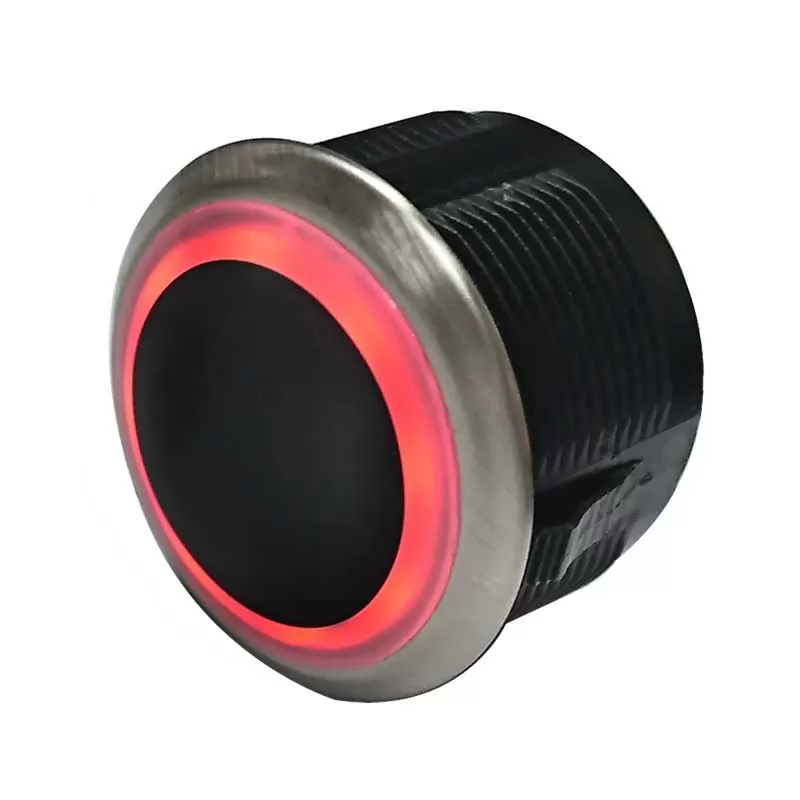

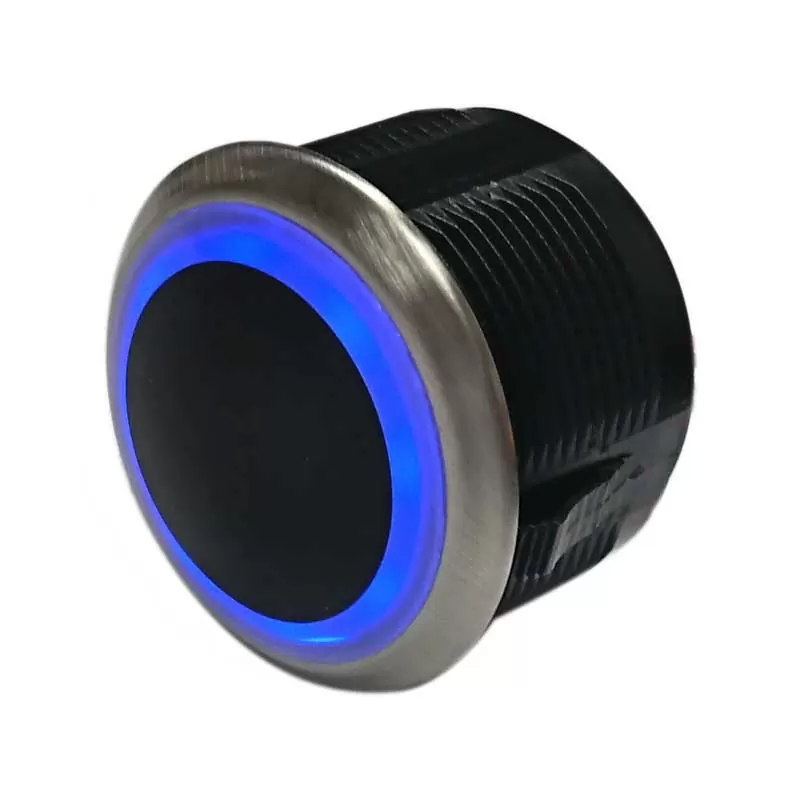

| LED STATUS INDICATOR | Power on: Red, Proximity: Blue (Optional Blue/Green) | |
| CASE MATERIAL | Stainless steel, UV & Fire Polycarbonate | |
| INSTALLATION DIAMETER | 38mm | |
| IP RATING | IP54 | |
| OPERATING LIFE | Relay: 100,000 cycles | |
Example Applications
| Elevator Buttons | Parking Lot Ticket Machine | Water Dispensers |
 |
 |
 |
| Ticket Machine | Device Switch | Hospital Door/Operating Room Automation control |
 |
 |
 |
| Anti-theft Detection | Automatic Location Detection | Gate/Door/Exit Automation control |
 |
 |
 |
Ordering information
We reserve the right to change the specification without prior notice or obligation!
Specification
IP Rating
IP54
Voltage / Current
DC10V (55mA)~24V(33mA)
Relay type
Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC
Output time
0.5~20 sec, Trigger / Toggle
LED Status indicator
Power on: Red, Proximity: Blue (Optional Blue/Green)
CASE MATERIAL
Stainless steel, UV & Fire Polycarbonate
Operating life
Relay: 100,000 cycles
Installation diameter
38mm
SENSOR RANGE
3~10cm
