Product Description

  • PFH-6750V is access controller with built in long range RFID reader that worked at 2.4GHz with stably sensitivity and excellent anti-collision performance.
  • LCD displays card number and related information, built-in memory records time and access control that can be collected by software for further application or integrated with other security devices.
  • Supplies variety reading range for option (15M/10M/3M or less) .
  • Supports maximum 80 cards reading simultaneously.
  • Can be set for a period of time without repeat reading.
  • PFH-5210 is Wiegand reader that can be interfaced with Pegasus PP-5878G / PP-85V / PP6750V / PP3702 or other standard access controller to be most economical access control system of personnel & vehicle.

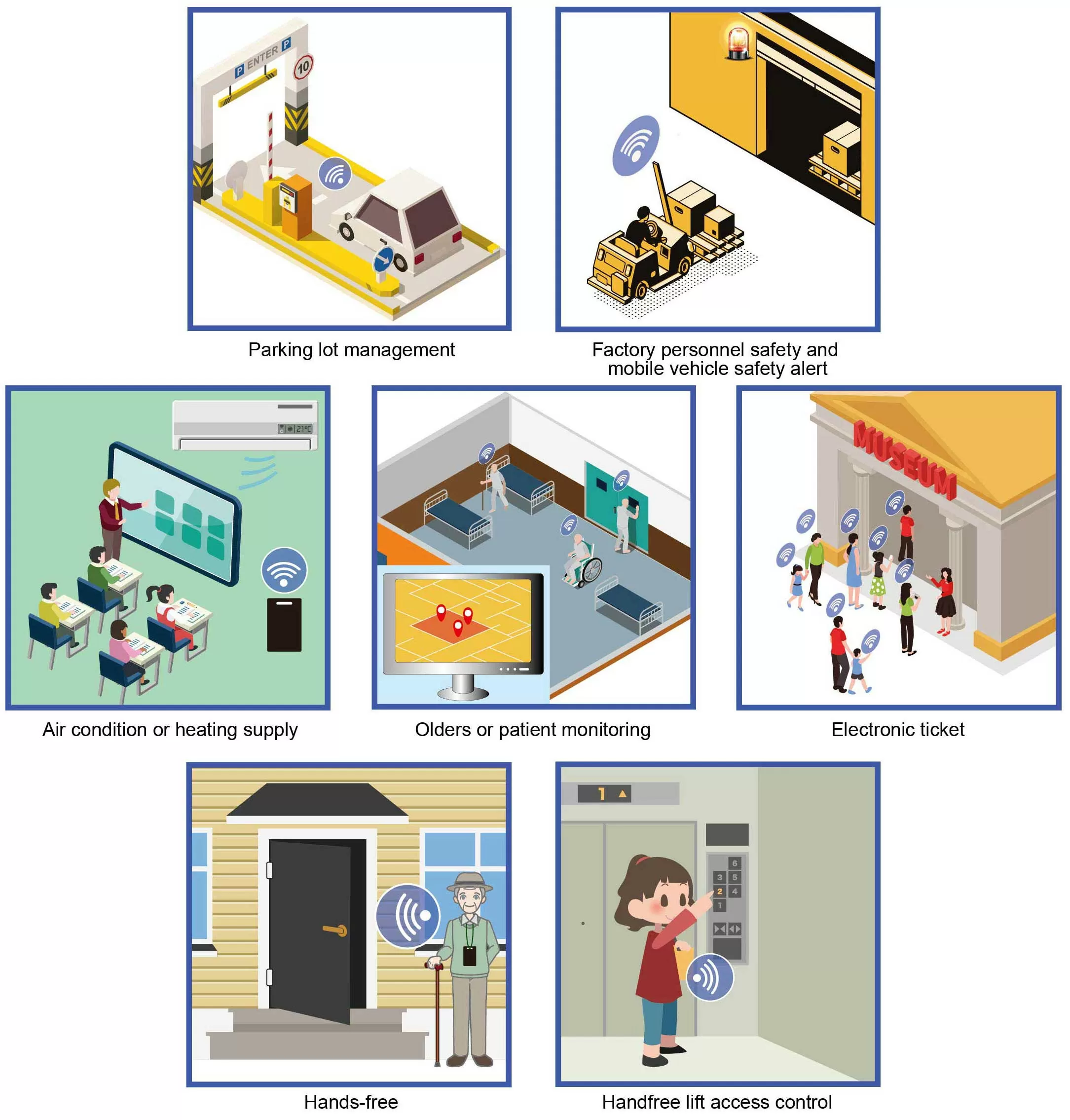

Available application

  • Factory personnel safety and mobile vehicle safety alert/
  • Handfree lift access control/
  • Parking lot management/
  • Time attendance/
  • logistics management/
  • production control/
  • Air condition or heating supply
  • Electronic ticket/
  • Olders or patient monitoring... etc.

Features

  • lCompare project number.
  • l8-digit card number (which can be assigned).
  • lCan read multiple cards at the same time(Up to 80 pcs)
proimages/Long_reader/PIC-for-PFH-6750V-E.jpg

Specifications

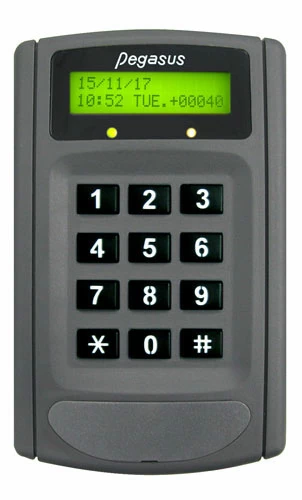

proimages/access_controller/2.4G-access-controller-PFH-6750V.jpg
Model No.PFH-6750V (Long Range 2.4G Active RFID Access Control / Reader)
RFID Frequency2.450~2.458GHz
Identification AngleHorizontal 360, vertical 360
Reading Range≧15M
Power input,Standby/ Operating currentDC 12V±10%, 98mA(Standby) / 120mA(Operating)
Serial InterfaceRS-485 / RS-232(Optional)
External ReaderWiegnad 26/34 bit Reader(Optional)
Weatherproof/DustproofIP45
Operating Temperature-20℃ ~ 70℃
Humidity10%~90%
MaterialABS
Net Weight340g ± 5%
Dimensions(LxWxH)mm137 x 85 x 29

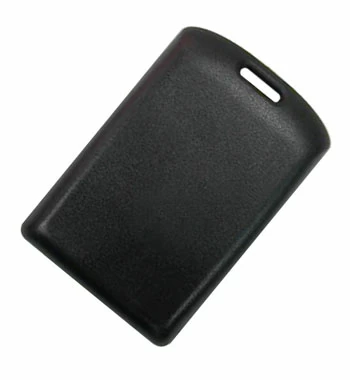

proimages/access_controller/PFH-240-Active-card.jpg
Model No.PFH-240(2.4G Active Card)
RFID frequency2.450~2.458GHz
RF Power<1mW
Data Rate≦2Mbps
Reading range≧15M
Operating ModeReading only, with Anti-Collision
Capable of batteryBattery (CR2032)x 4 pieces
Operating temperature-20℃~70℃
Humidity<95%
MaterialPC
Dimensions(LxWxH)mm87 x 55 x 7

How To Order

  • PFH-6750VX/R5 : 2.4G Active RFID Access Control / Reader, Reading Range 15m
  • PFH-6750VXR5S3 : 2.4G Active RFID Access Control / Reader, Reading Range 3m
  • PFH-6750VXR5S5 : 2.4G Active RFID Access Control / Reader, Reading Range 5m
  • PFH-5210W34 : 2.4G Reader, Wiegand 34bit
  • PFH-5210W26 : 2.4G Reader, Wiegand 26bit
  • PFH-240 : 2.4G Active Card
  • PST-ADV-E-ELE : Access Control / Time & Attendance Software

Specifications subject to change without notice for further modification.
