Mullion PC On-line Access controllerMullion PC On-line Access controllerMullion PC On-line Access controller

Model number: PP-45

Inquiry
Quantity

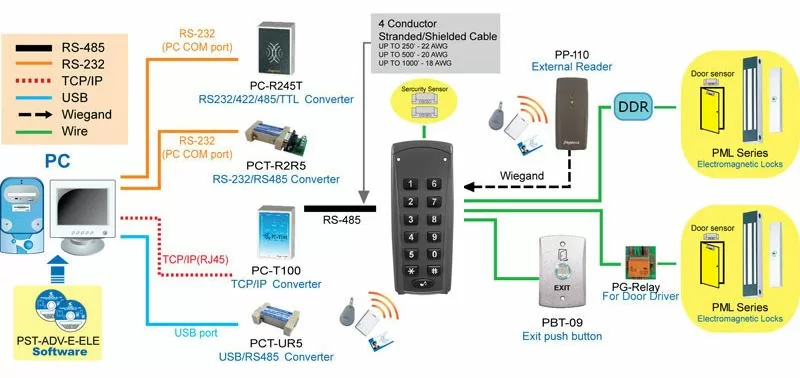

System configuration

proimages/access_controller/configuration/Configuration-for-lift-PP-85V.jpg

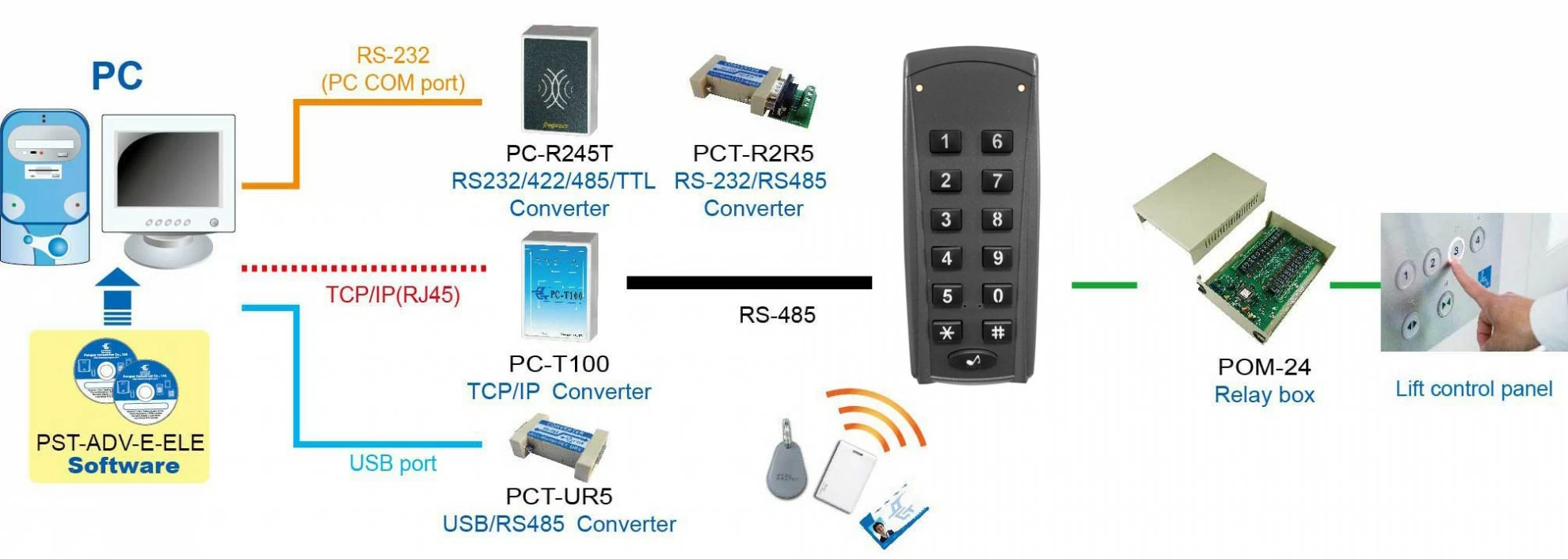

Lift access controller system

proimages/access_controller/configuration/Configuration-for-lift-PP-85V.jpg

Product Description

PP-45 is an intelligent time recording terminals designed to meet variant applications in time attendance and access control, lift control & ARM/DISARM security requirements. Each terminal can be operated independent simply or through PC/Internet adapter PC-T100 to fulfill the multiple doors access system. The recording terminal includes nearly all the necessary functions for time recording and access control with bountiful manual & PC executed commanded functions as well as friendly operation commanded for manual operation.

  • Unfading keypad by dual color ABA injection.
  • With Freescale CPU supported working temperature -55~155℃
  • Switching on alarm automatically, if failed input password for three times and warning management to avoid illegal entrance.
  • Relay supported with shockproof, to avoid illegal open door entrance.
  • Supported macro command to simplify access control & lift access setting.
  • For higher security, our M3 series is applied with anti-duplication HF card.
  • Security function to activate or deactivate all or selected sensors.
  • Support fire alarm signal to release the door automatically.
  • Not compare and add card by reading.
  • Free SDK available.

Features

Features for time recording application
  • Selectable batch or real time operation mode.
  • 79 duty codes, duty name defined by PC.
  • Possible in 8 digits ID for time attendance recording.
  • Totally 192 alarm schedules (8 schedules per hour) dry contacts output for periodic belling.
  • Could collect data by real time or one by one events or massive block dump.
  • High capacity with 8 digits card number. ( Either checking or without checking personal map )
Main features for access control application
  • System parameters and personal access map can be downloaded by PC or manually  programmed through keypad.
  • The personal access map is consisted of card ID, staff number and name, PIN and Time Zone Status, expiry date and Anti-passback.
  • Excellent multiple operation modes :(1) Card only (2) Card + PIN (3)Door PIN only  (4)Card Number+PIN (5)Free access (6) Automatic operation mode by time zones.
  • All operation modes with PIN are supported by selectable duress function. Also, keypad is lockable to become dumb.
  • Individual personal access map can be edited by block range add or delete card in group basis by on-lined PC or by manual thru. single / block range card number or by directly reading card thru. learning mode.
  • Selectable immediate or batched conditional sorting and then printing out events thru. serial output interface.
  • With complete door release, held monitoring and intruded alarm period and error trials.
  • Supports 8/24/48/64/96 floors lift access control.
  • Full APB (anti-passback), time zone.
  • Could dump all personal map in system by single PC or manual command.

Specification

Dimensions140x 58 x 25.5mm
Power supplyDC 12V±10%, 34mA~53mA(not include power requirement for lock & alarm)
Transmission rateDefault 9,600 bps N,8,1(2,400/4,800)(19,200bps/38,400)
Operating temperature-20℃ ~ 70℃
Operating humidity10%~90%
WaterproofYes
PasswordProgrammable 4 digits PIN for each person
Serial interfaceRS-485 / RS-232(Optional)
Serial output1. For connection with serial printer.
2. To drive DDR (digital door relay) for secure assess control function.
3. To drive 8/24/48/64 relay output modules for lifts access control
4. Bountiful application functions requested by customer
Events / Card capacityX Series : 32,000 card capacity,32,000 events.
Other capacity combination requested by order
Card standard125KHz ASK EM / 125KHz FSK / 13.56MHz Mifare (ISO 14443A , ISO 14443B) / 13.56MHz ISO 15693 / 13.56MHz Felica (ISO 18092 UID) / Q type / NFC (card simulation)
※ Support customized card.
External readerWith one or optional two port for external Wiegand
(26/34/35/36/37/40 bits definable by command) &
ABA input (by order)

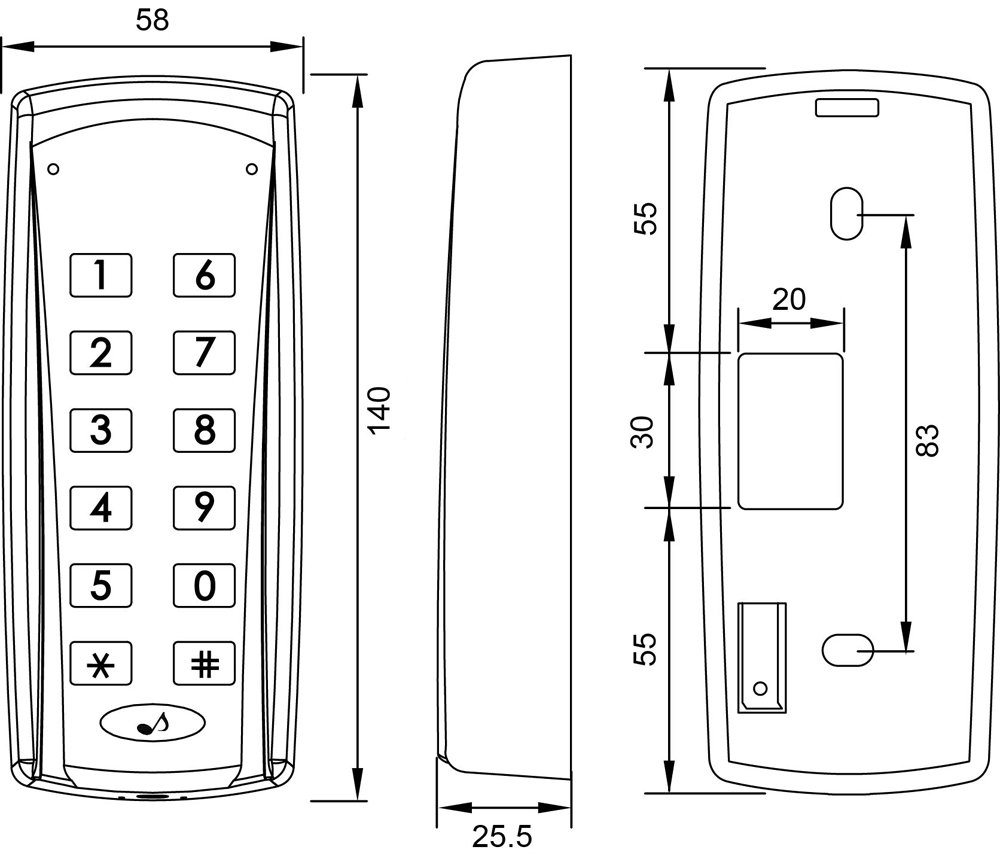

Dimension: mm

Mullion PC On-line Access controller

Ordering information

PP-45XNR5EM controller&reader,32000 users,32000 events,RS485
PP-45XM0R5 Mifare controller&reader,32000 users,32000 events,RS485

Mifare is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.



We reserve the right to change the specification without prior notice or obligation!
