IR Proximity Sensor, ø22mm, Polycarbonate

Waterproof 22mm Touchless Infrared sensor switchWaterproof 22mm Touchless Infrared sensor switch

Model number： PBT-22IRV

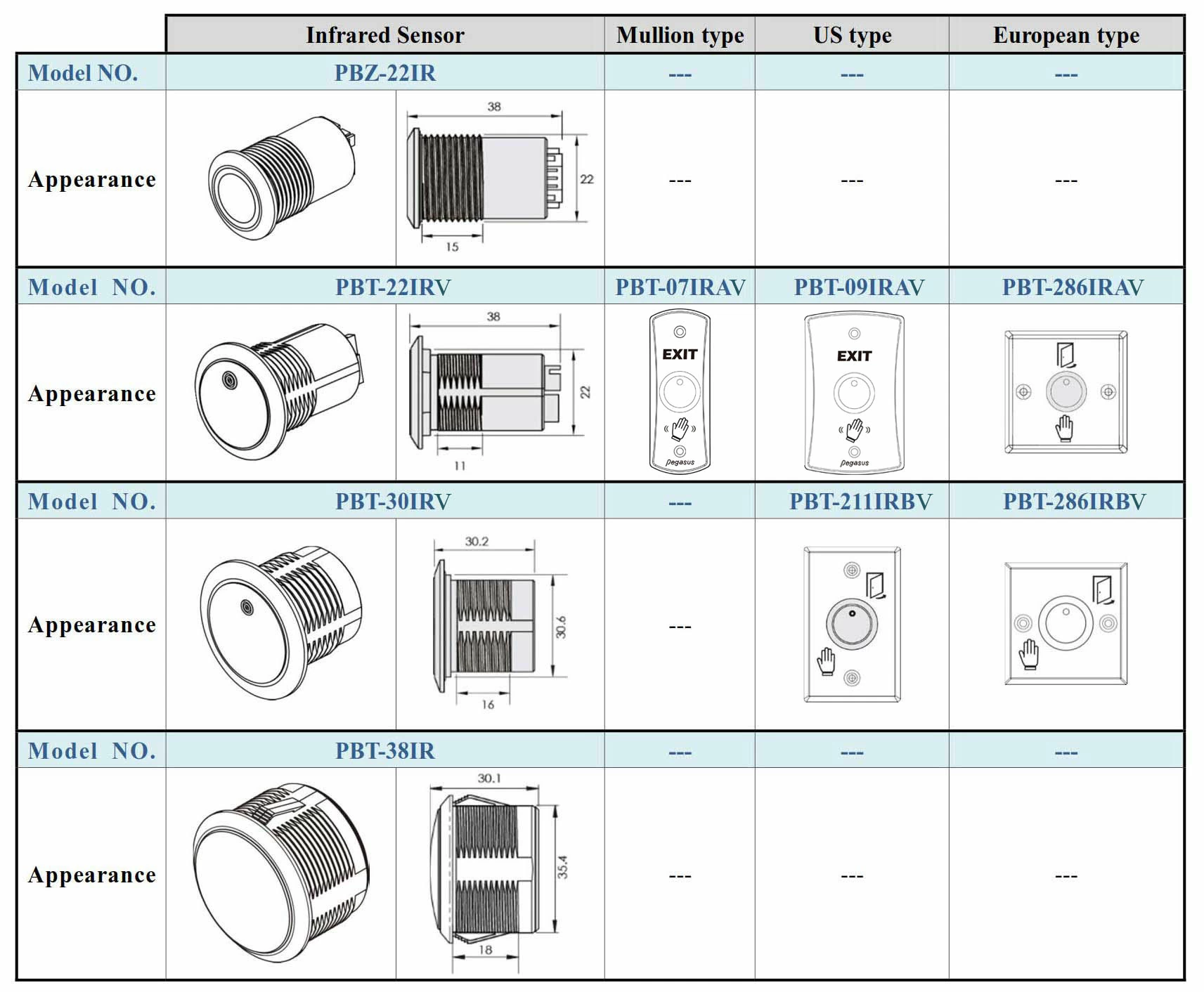

Selection Guides For Infrared Sensor Switch Series
Inquiry
Quantity
    Share

    Features

    • Form C relay output (1A@30VDC)
    • Adjustable output time 0.5~20 sec. Trigger / Toggle
    • Adjustable sensing range 0.5~10cm/3-15cm
    • Voltage : 10V/24V DC (auto-adjusting)
    • Front panel IP65 weatherproof for outdoor use

    Specification

    Model No.PBT-22IRVPBT-22IRSV
    Dimension(mm)/storage/system/Exit_push_button/dimensions-PBT-22IR.webp
    Voltage / CurrentDC10V (47mA)~24V(28mA)
    Relay typeForm C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC
    Output time0.5~20 sec, Trigger / Toggle
    Sensor Range3~15cm0.5~10cm
    LED Status indicatorPower on: Red, Proximity: Blue (Optional Blue/Green)
    Case materialUV & Fire Polycarbonate
    IP RatingIP65
    Operating lifeRelay: 100,000 cycles
    /storage/system/Exit_push_button/PBT-22IRall.webp

    Example Applications


    Elevator ButtonsParking Lot Ticket MachineWater Dispensers
    Elevator ButtonsParking Lot Ticket MachineWater Dispensers

    Ticket MachineDevice SwitchHospital Door/Operating Room
    Automation control
    Ticket MachineDevice SwitchHospital Door/Operating Room Automation control

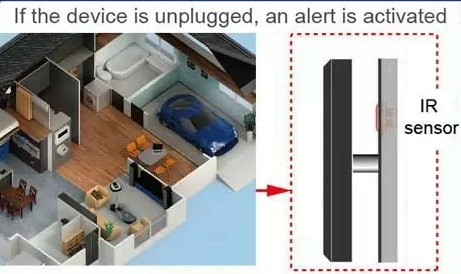

    Anti-theft DetectionAutomatic Location DetectionGate/Door/Exit Automation control
    Anti-theft DetectionAutomatic Location DetectionGate/Door/Exit Automation control


    Ordering information


    PBT-22IRVDC10~24V Contactless Infrared Sensor Switch, Adjustable proximity range: 3~15cm
    PBT-22IRSVDC10~24V Contactless Infrared Sensor Switch, Adjustable proximity range: 0.5~10cm
    /storage/system/Exit_push_button/PBZ-22IR/IR-SensorE.webp

    We reserve the right to change the specification without prior notice or obligation!
