Electric Bolt Lock for Automatic Door - Fail-Safe

DA-70 Electric Deadbolt Lock (For automatic or skid door)DA-70 Electric Deadbolt Lock (For automatic or skid door)

Model number： DA-70

Selection Guides For Electric Drop bolt
Inquiry
Quantity
    Share

    Features

    • With micro switch door position sensor
    • Door position status monitor output contact
    • Support Time Delay Setting

    Specification

    Model No.DA-70
    Voltage / CurrentDC12V(Standby:250mA, Working:900mA)
    Time Delay5 Sec. / 4 Sec. / 3 Sec. / 2 Sec. / 1 Sec.
    LED indicator---
    Door position sensorYES
    Dimension (LxWxD)mmFaceplate203x33x3
    Lock143x32x40
    Net Weight (g)2000g±1%
    BracketIncluded

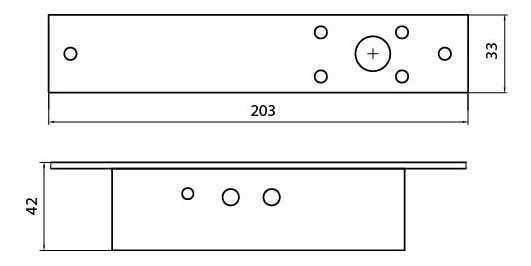

    Dimension: Unit(mm)

    /storage/system/electric_lock/Dimension-for-DA-70.jpg/storage/system/electric_lock/DA-70-E.jpg/storage/system/electric_lock/DA-70_pic_.jpg/storage/system/electric_lock/DA-70-exe.jpg

    We reserve the right to change the specification without prior notice or obligation!
