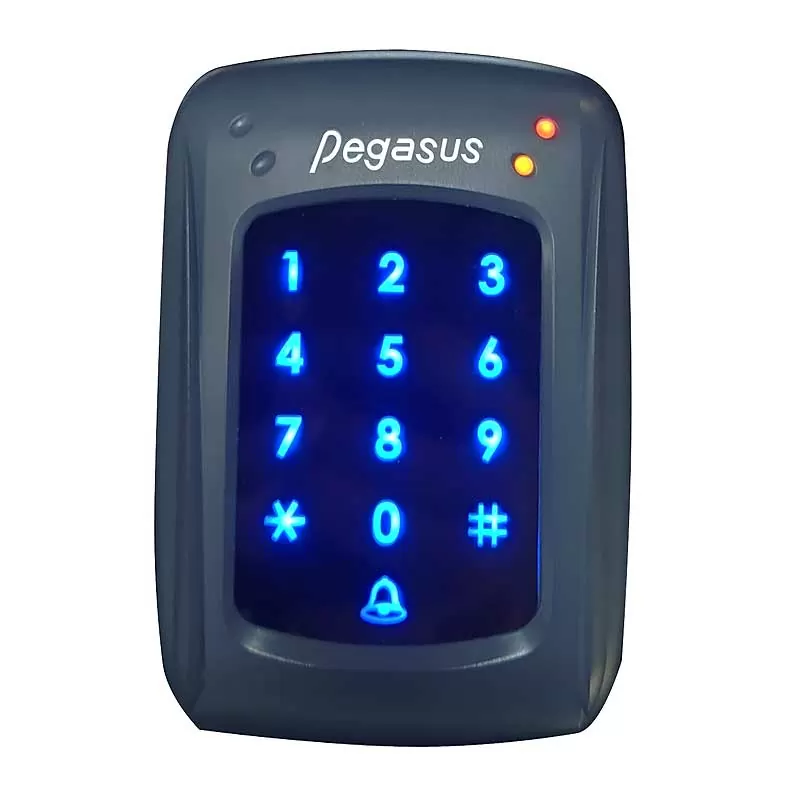

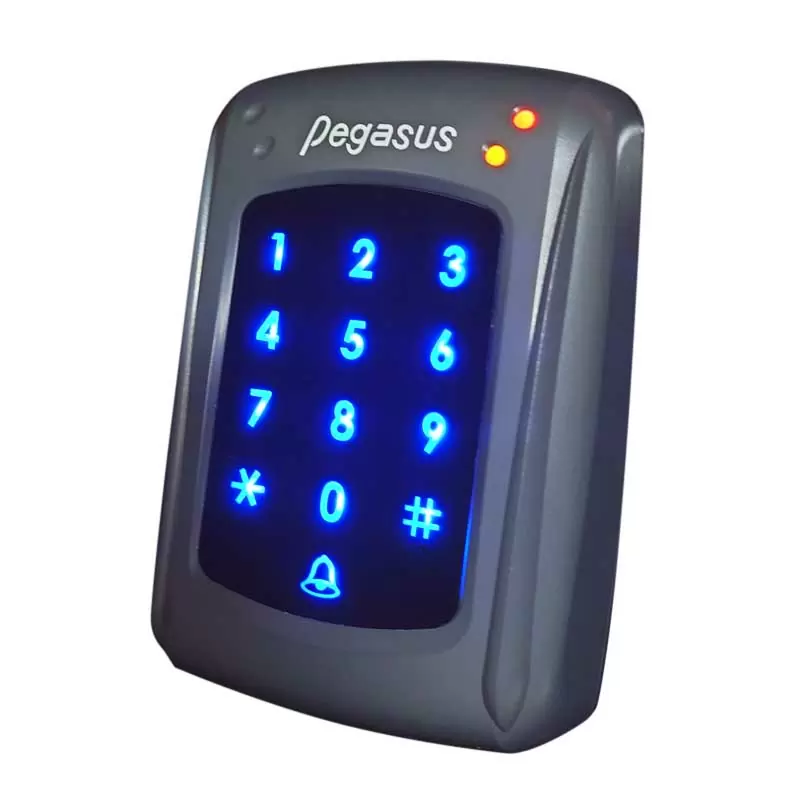

Model：PP-83
Touch Keypad Networked Controller
Product
Features
- Security function to activate or deactivate all or selected sensors.
- Support fire alarm signal to release the door automatically.
- Not compare and add card by reading.
- Switching on alarm automatically, if failed input password for three times and warning
management to avoid illegal entrance. - Relay supported with shockproof, to avoid illegal open door entrance.
- Up to 90 codes 4 digits door PIN.
- Setting door monitoring time becomes second unit or minute unit. Up to 98 minutes.
- Setting door release time becomes second unit or minute unit. Up to 97minutes.
Excellent multiple operation modes :(1) Card only (2) Card + PIN (3)Door PIN only
(4)Card Number+PIN (5)Free access (6) Automatic operation mode by time zones. - All operation modes with PIN are supported by selectable duress function. Also, keypad is lockable to become dumb.
- Supports 8/24/48/64/96 floors lift access control.
- Group function by pressing password.
- Full APB (anti-passback), time zone.
Specification
| MODEL NO. | PP-83XN | PP-83XH | PP-83XM0 | PP-83XF |
| FREQUENCY | 125KHz ASK | 125KHz FSK | 13.56MHz | 13.56MHz |
| COMPATIBILITY | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | H.I.D. | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional) | ISO18092 FeliCa |
| USER CAPACITY | 32,000 card capacity, 32,000 events | |||
| POWER VOLTAGE | DC12~24V | |||
| INTERFACE | RS-485 / RS-232 / TCP/IP(Optional) | |||
| WIEGAND INPUT | Wiegand 26 /34bits | |||
| INPUT | Exit push button / Door monitor / Security sensor | |||
| OUTPUT | Alarm output / Tamper switch output / Electric lock output | |||
| KEYPAD | YES | |||
| MATERIAL | ABS | |||
| DIMENSIONS (LXWXH)MM |
116x81x30 | |||
| IP RATING | IP54 | |||
| DOORBELL | YES | |||
System configuration

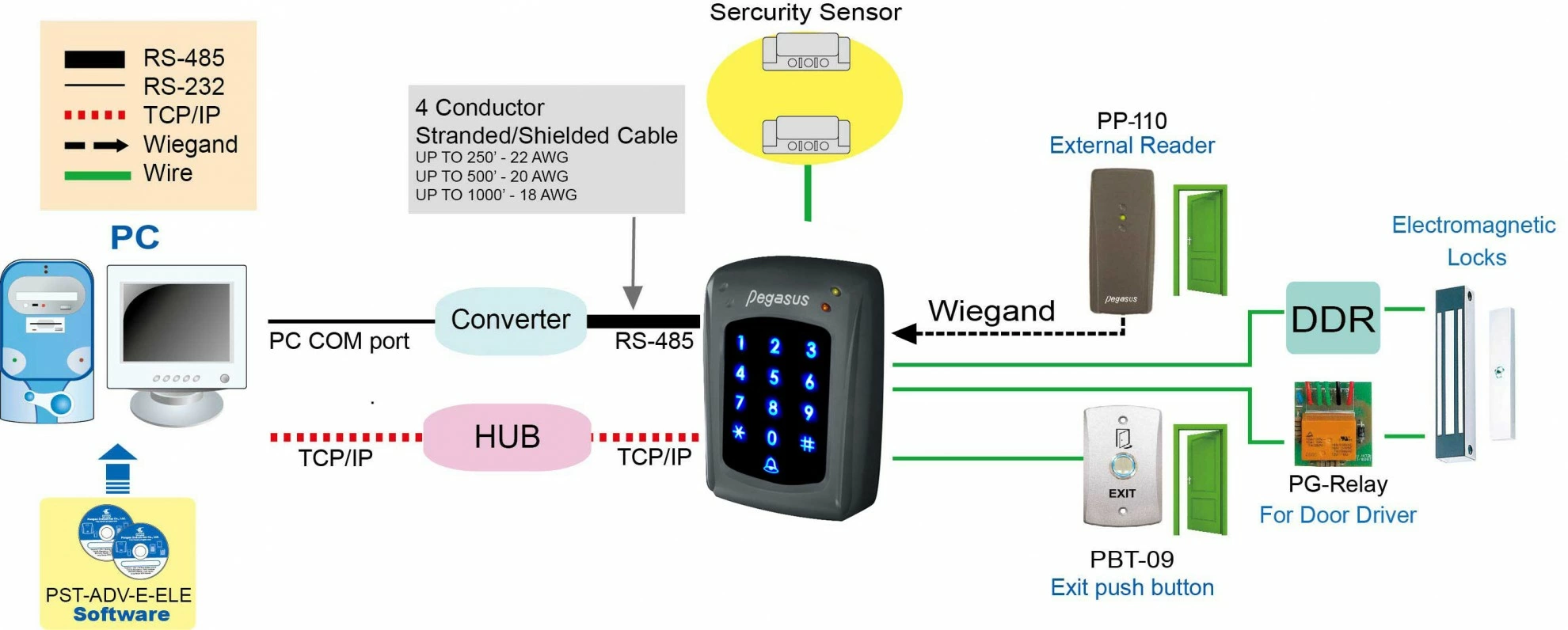

Access controller system

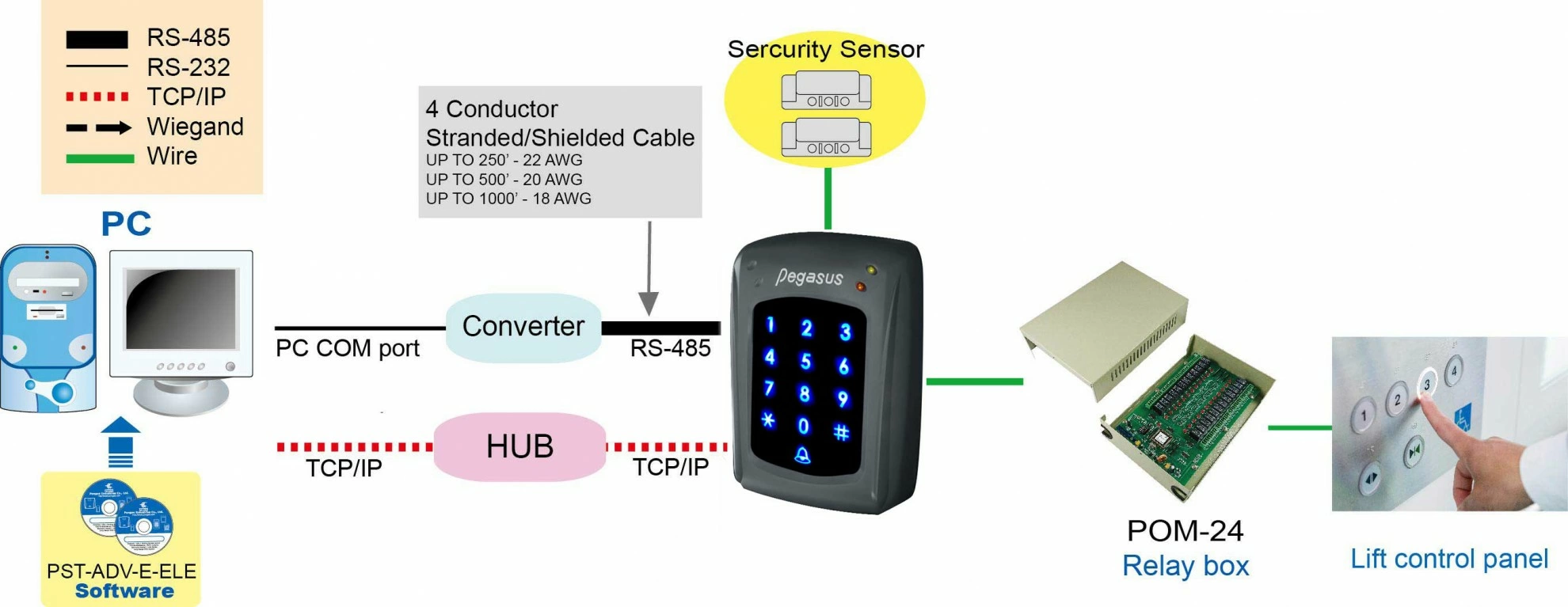

Lift access controller system

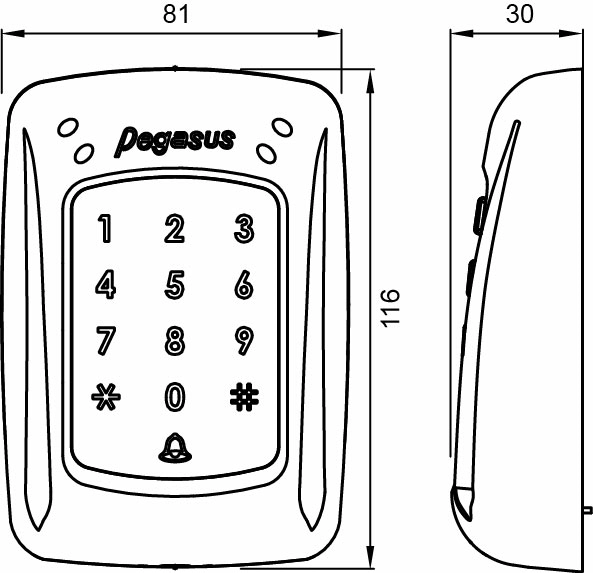

Dimension: mm
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PP-83XN ; PP-83XH ; PP-83XM0 ; PP-83XF
Frequency
125KHz ASK ; 125KHz FSK ; 13.56MHz ; 13.56MHz
Compatibility
SO18000-2 EM4001, 4100, 4102, TEMIC 5567 ; H.I.D. ; ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional) ; ISO18092 FeliCa
User Capacity
32,000 card capacity, 32,000 events
Power Voltage
DC12~24V
Interface
RS-485 / RS-232 / TCP/IP(Optional)
Wiegand Input
Wiegand 26 /34bits
Input
Exit push button / Door monitor / Security sensor
Output
Alarm output / Tamper switch output / Electric lock output
Keypad
YES
Material
ABS
Dimensions (L x W x D) mm
116x81x30
IP Rating
IP54
Door bell
YES
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
