Model：PP-53

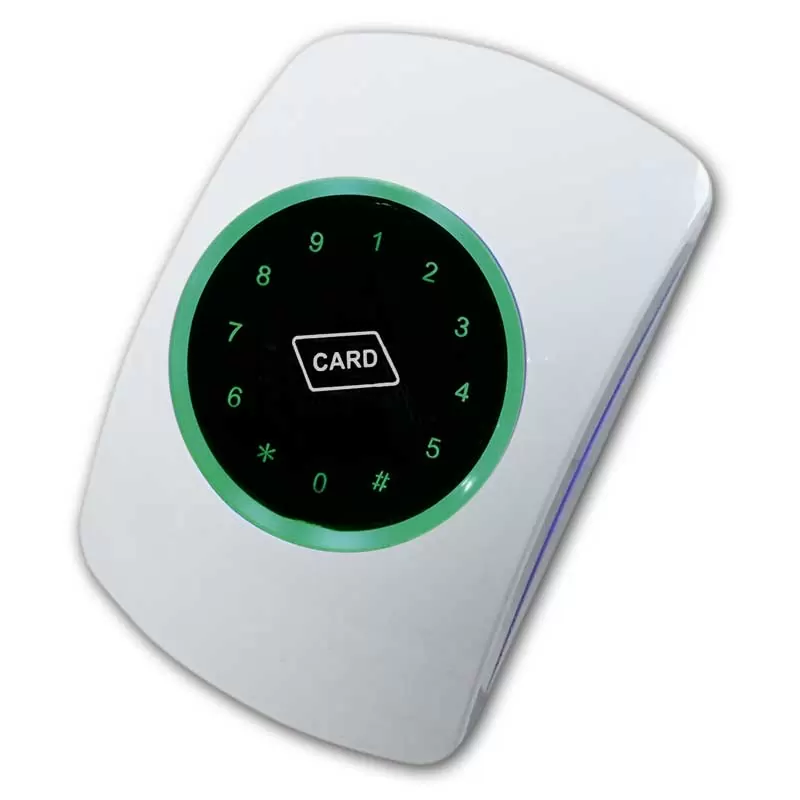

Touch Keypad Networked Controller
Product
Features
- Single door (one-way or two-way control)
- Classic and slim design, suitable for installation in narrow place
- Support 32000 Cards (Standalone/Networked)
- Built-in LED and Buzzer indicator, door bell
- Multiple access method: Card only, PIN code only, Card with PIN code
- IP54 weatherproof for indoor/outdoor use
Specification
| MODEL NO. | PP-53XNR5T3 | PP-53XM0R5T3 | PP-53XFR5T3 |
| FREQUENCY | 125KHz ASK | 13.56MHz | 13.56MHz |
| COMPATIBILITY | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional) | ISO18092 FeliCa |
| USER CAPACITY | 32,000 card capacity, 32,000 events | ||
| POWER VOLTAGE | DC 12V | ||
| INTERFACE | RS-485 / RS-232/ TCP/IP | ||
| WIEGAND INPUT | Wiegand (26/34 bits) | ||
| INPUT | Exit push button / Door monitor / Security sensor | ||
| OUTPUT | Alarm output / Tamper switch output / Electric lock output | ||
| KEYPAD | Touch Keypad | ||
| MATERIAL | ABS | ||
| DIMENSIONS (LXWXH)MM |
125 x 83 x 27 | ||
| IP RATING | IP54 | ||

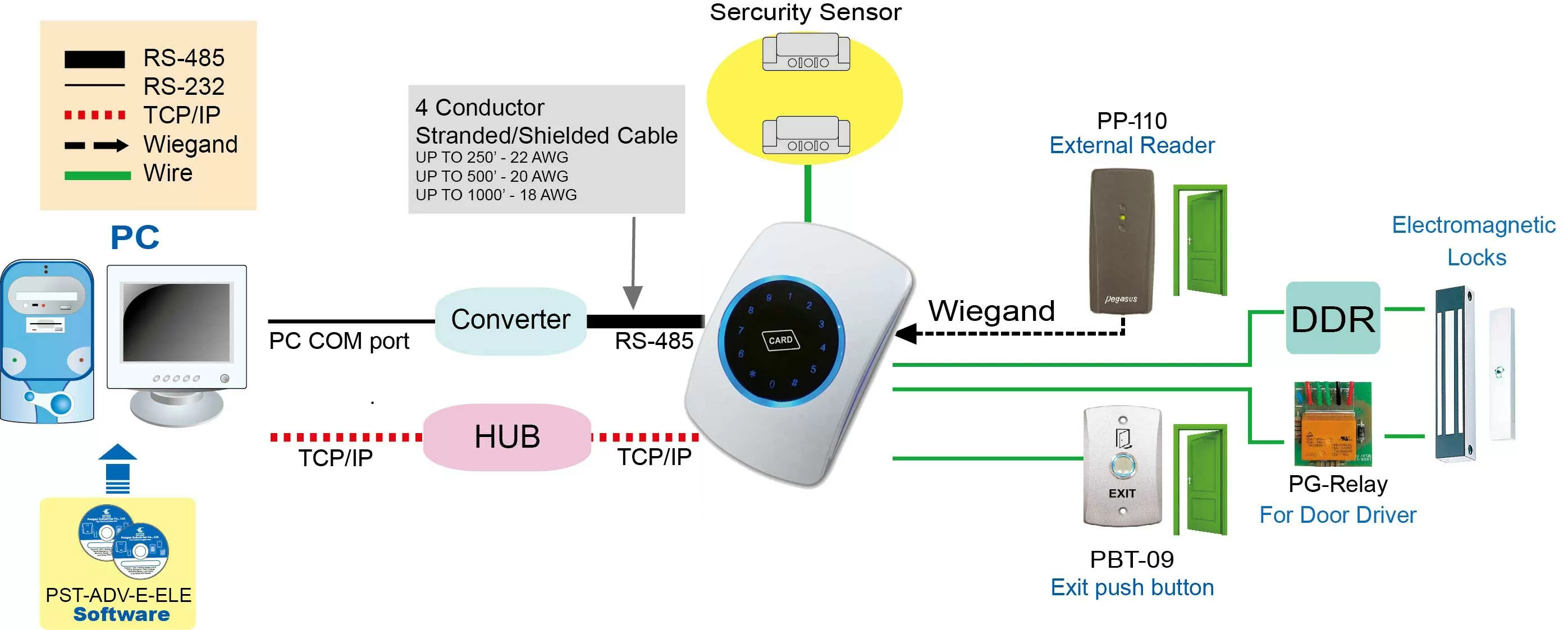

System configuration

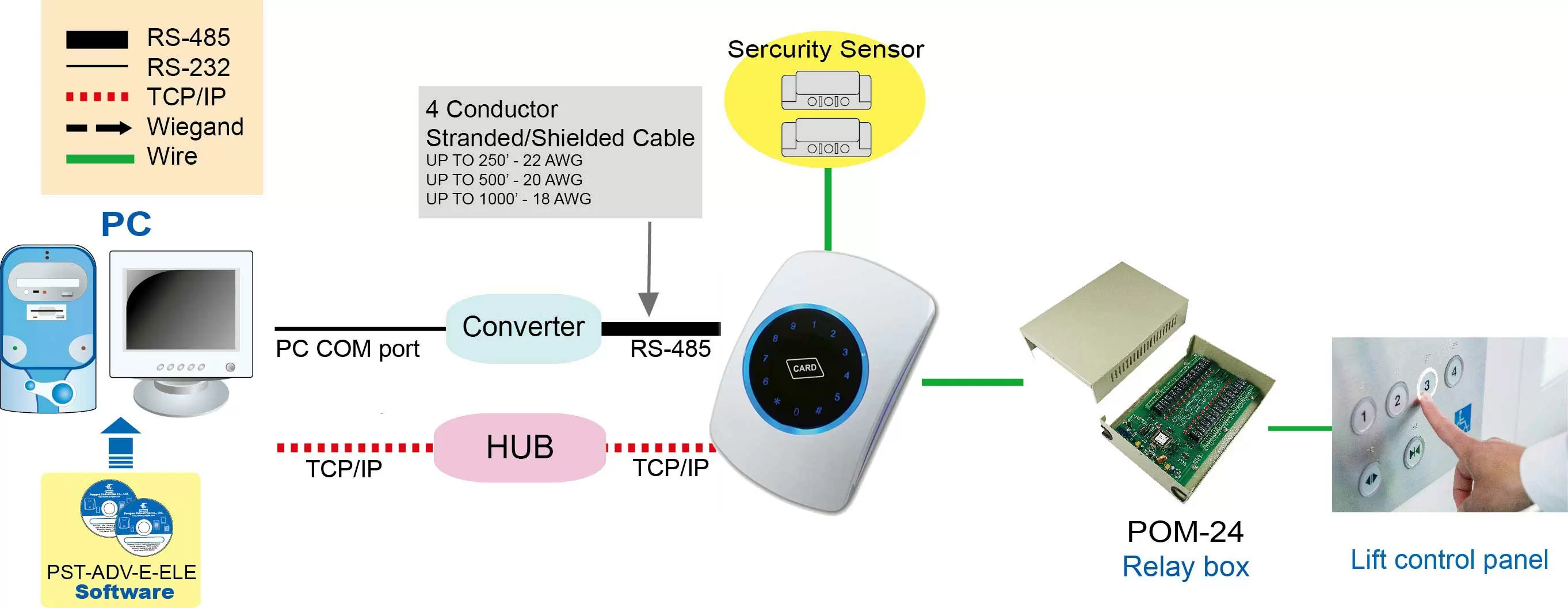

Lift access controller system

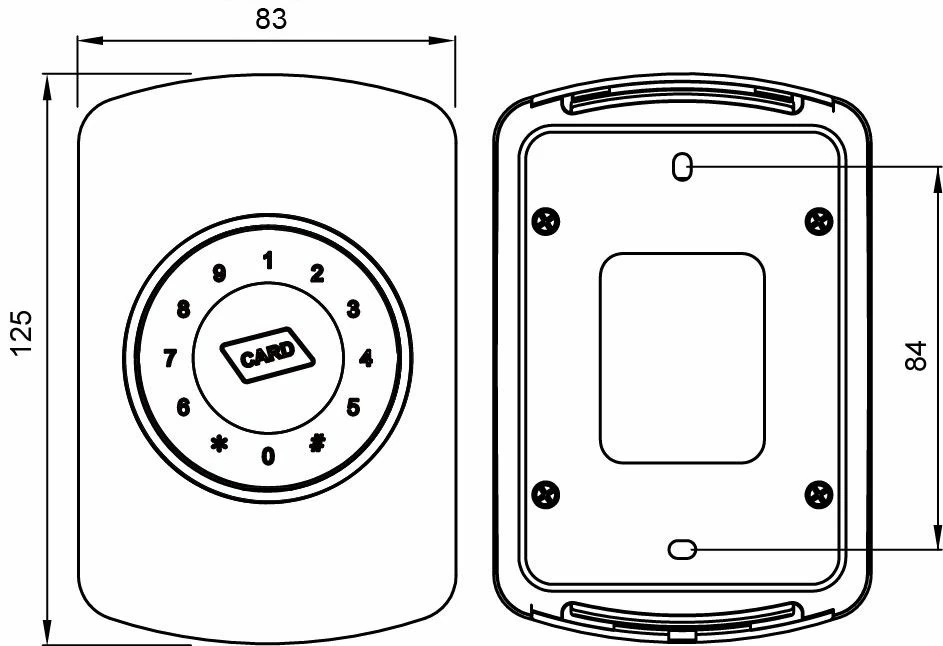

Dimension: mm
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PP-53XNR5T3 ; PP-53XM0R5T3 ; PP-53XFR5T3
Frequency
125KHz ASK ; 13.56MHz ; 13.56MHz
Compatibility
ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 ; ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional) ; ISO18092 FeliCa
User Capacity
32,000 card capacity, 32,000 events
Power Voltage
DC 12V
Interface
RS-485 / RS-232/ TCP/IP
Wiegand Input
Wiegand (26/34 bits)
Input
Exit push button / Door monitor / Security sensor
Output
Alarm output / Tamper switch output / Electric lock output
Keypad
Touch Keypad
Material
ABS
Dimensions (L x W x D) mm
125 x 83 x 27
IP Rating
IP54
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
