Model：PP-36
Proximity Networked controller
Compare
Product
Features
- Single door (one-way or two-way control)
- Classic and slim design, suitable for installation in narrow place
- Support 2000 Cards (Standalone/Networked)
- Built-in LED and Buzzer indicator, door bell
- Access method: Card only
- IP54 weatherproof for indoor/outdoor use

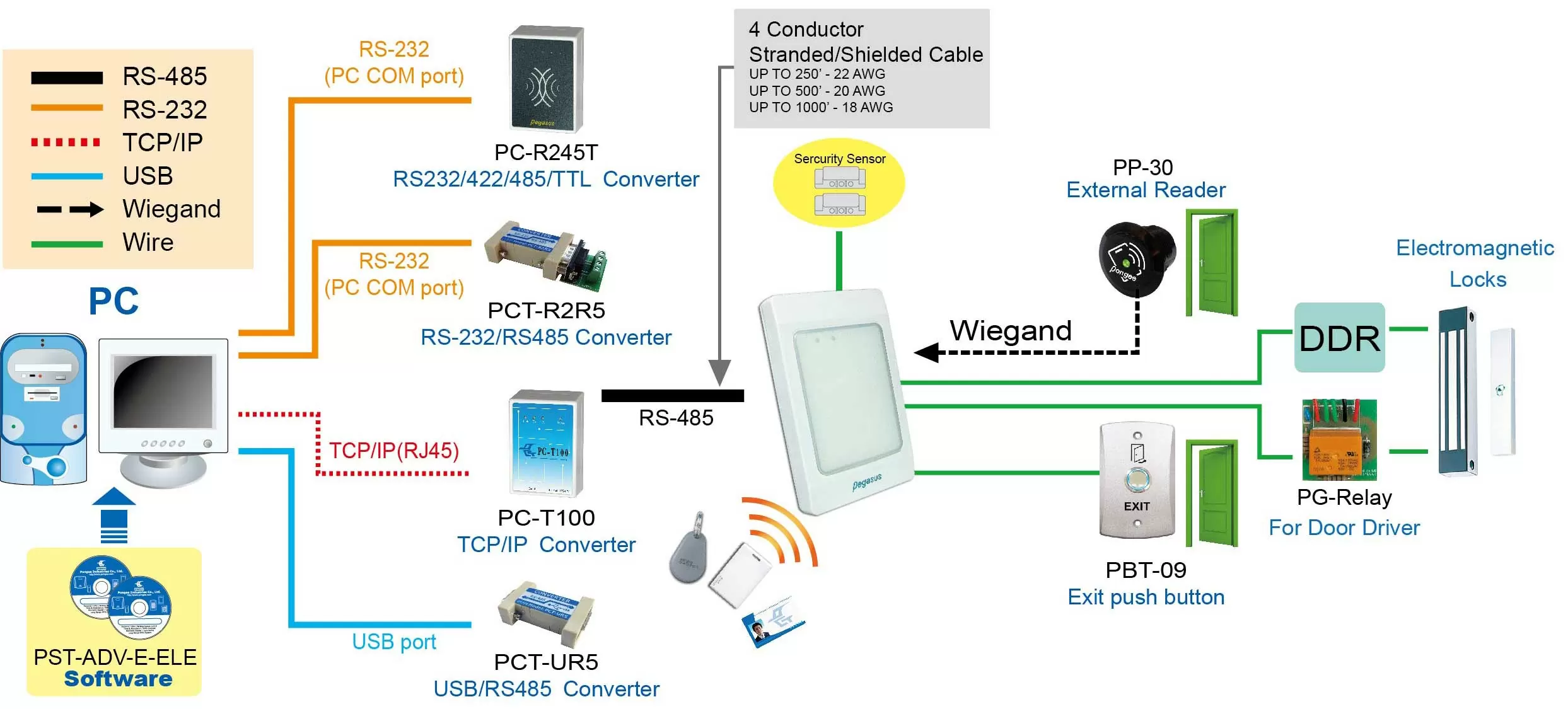

System configuration

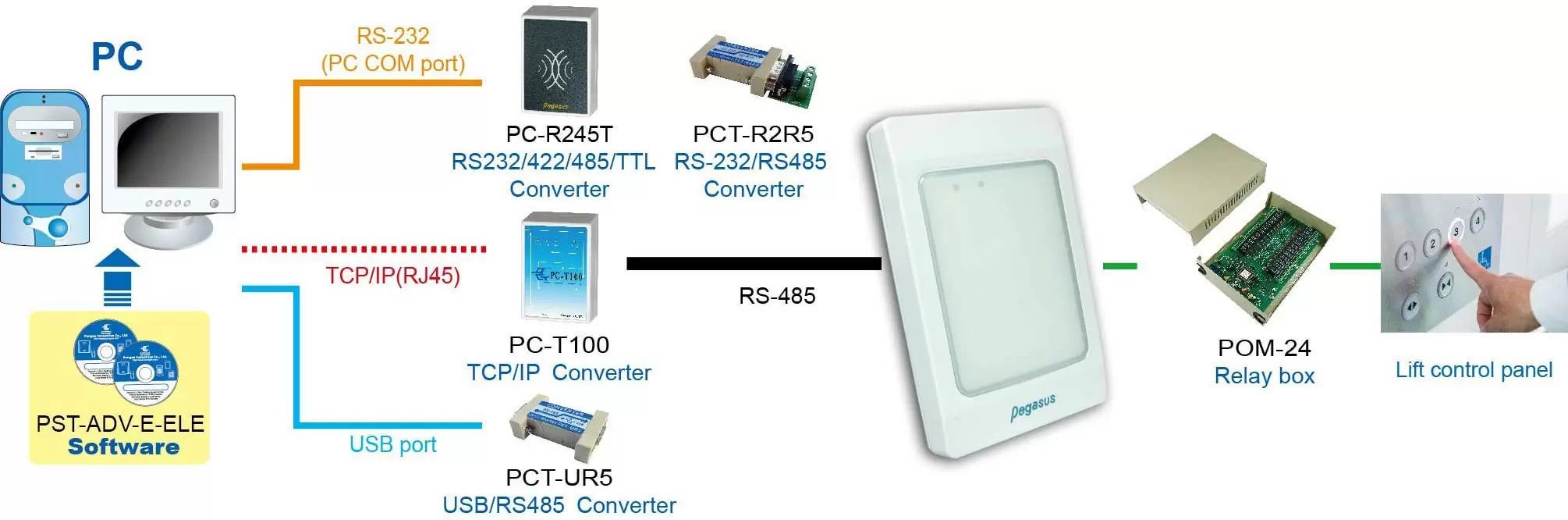

Lift access controller system

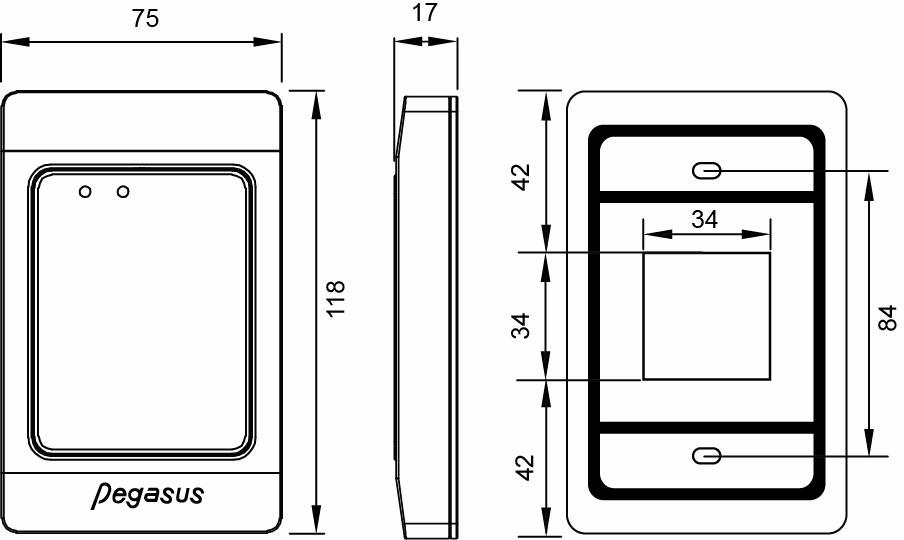

Dimension: mm
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Specification
Material
ABS
IP Rating
IP54
Interface
RS-485, RS-232
User Capacity
2,000 card capacity, 1,000 events
Power Voltage
DC 12V
WIEGAND INPUT
Wiegand (26/34 bits)
Input
Exit push button / Door monitor / Security sensor
Output
Alarm output / Tamper switch output / Electric lock output
Keypad
NO
Dimensions (LxWxH)mm
118x75x17
