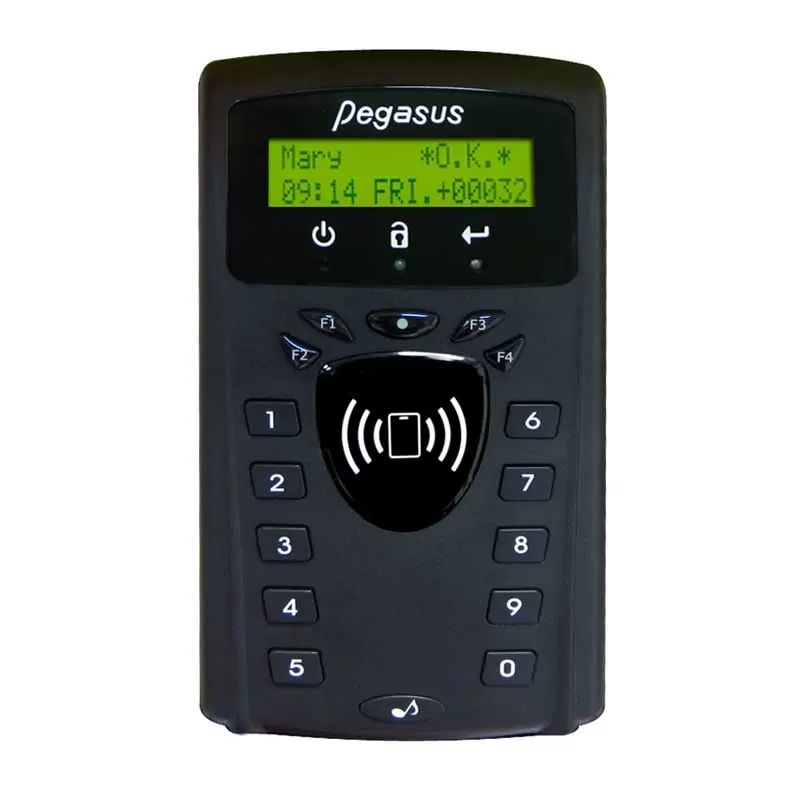

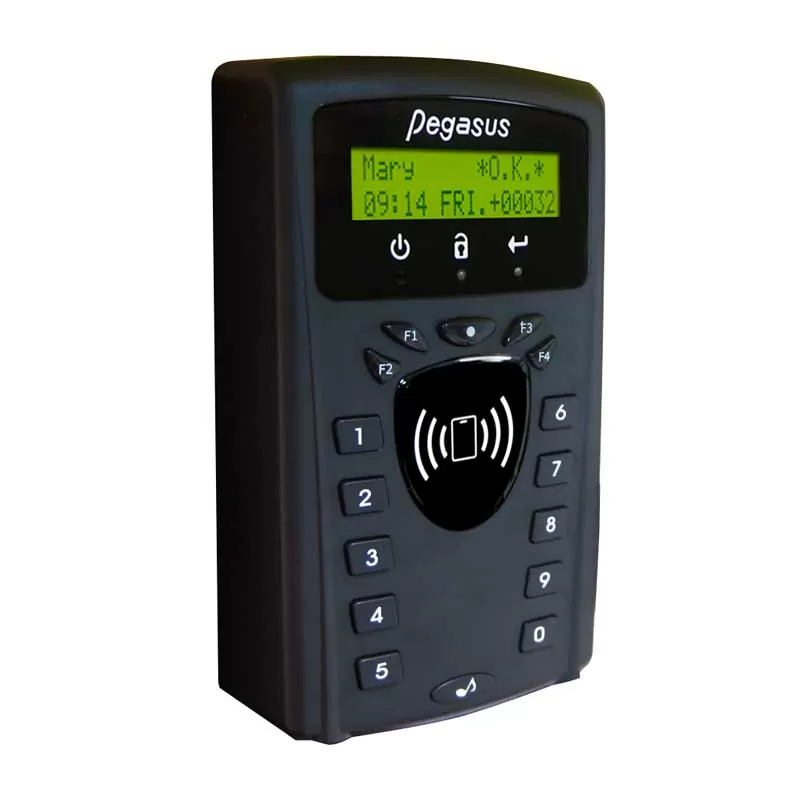

Model：PP-3702T
Multi-Function Networked controller (TCP/IP)
Product
Features
- Single door (one-way or two-way control)
- Classic Graphic Display Multi-Function Controller
- Support 32000 Cards (Standalone/Networked)
- Built-in LED and Buzzer indicator, door bell
- Multiple access method: Card only, PIN code only, Card with PIN code
- IP54 weatherproof for indoor/outdoor use
Specification
| MODEL NO. | PP-3702XNT | PP-3702XHT | PP-3702XM0T | PP-3702XFT |
| FREQUENCY | 125KHz ASK | 125KHz FSK |
13.56MHz | 13.56MHz |
| COMPATIBILITY | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | H.I.D. | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(optional) | ISO18092 FeliCa |
| USER CAPACITY | 32000 card capacity ; 32000 events | |||
| POWER VOLTAGE | DC 12V | |||
| INTERFACE | RS-485, TCP/IP, RS-232(Optional) | |||
| WIEGAND INPUT | Wiegand (26/34 bits) | |||
| INPUT | Exit push button / Door monitor / Security sensor | |||
| OUTPUT | Alarm output / Tamper switch output / Electric lock output | |||
| LCD PANEL | YES | |||
| KEYPAD | YES | |||
| MATERIAL | ABS | |||
| DIMENSIONS (LXWXH)MM |
174x100x43 | |||
| IP RATING | IP54 | |||
System configuration

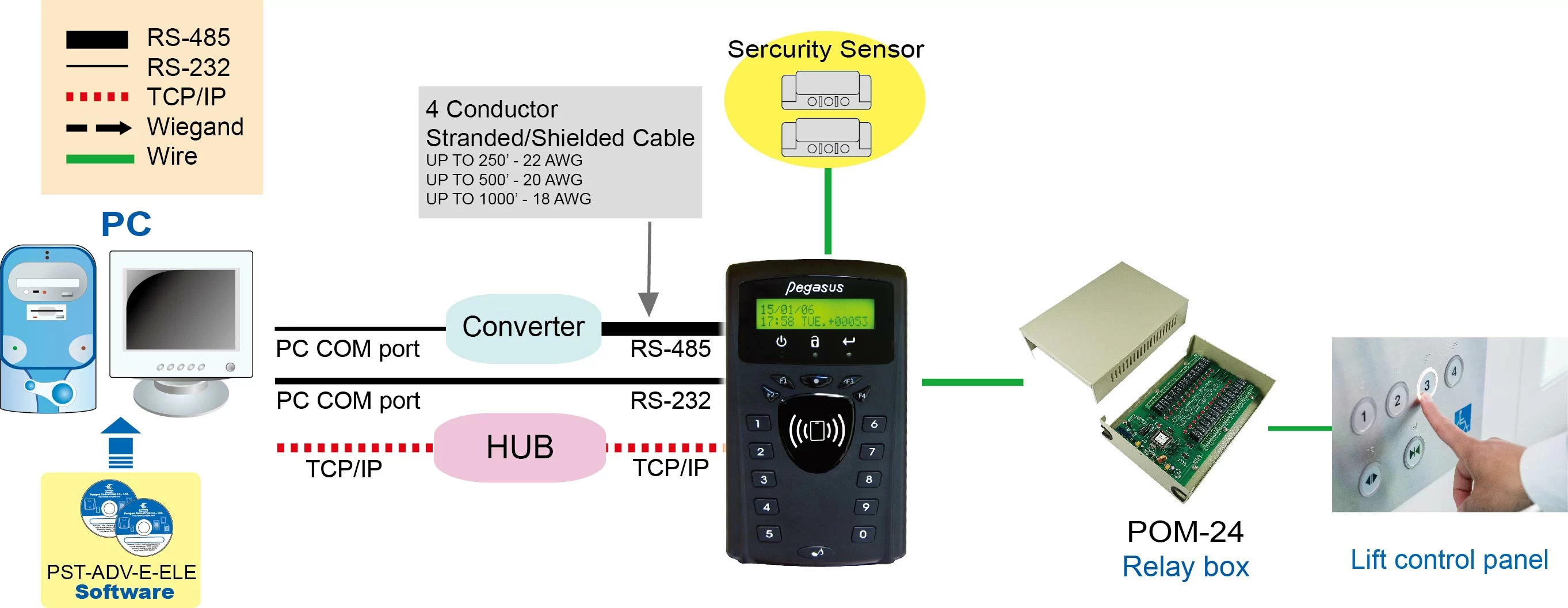

Lift access control system

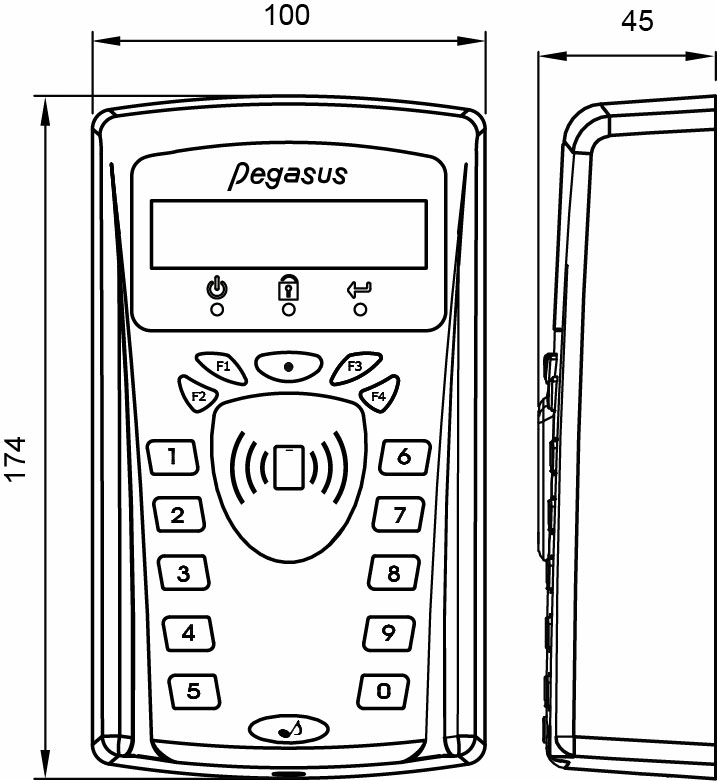

Dimension: mm
Ordering information
| PP-3702XM0T1 | Mifare UID controller & reader,32000 users,32000 events, TCP/IP, RS485 |
| PP-3702XNT1 | EM controller & reader,32000 users,32000 events, TCP/IP, RS485 |
| PP-3702XHT1 | H.I.D. controller & reader,32000 users,32000 events, TCP/IP, RS485 |
| PP-3702XFT1 | FeliCa controller & reader,32000 users,32000 events, TCP/IP, RS485 |
| PP-3702XNM0T1 | Mifare UID & EM controller & reader,32000 users,32000 events, TCP/IP, RS485 |

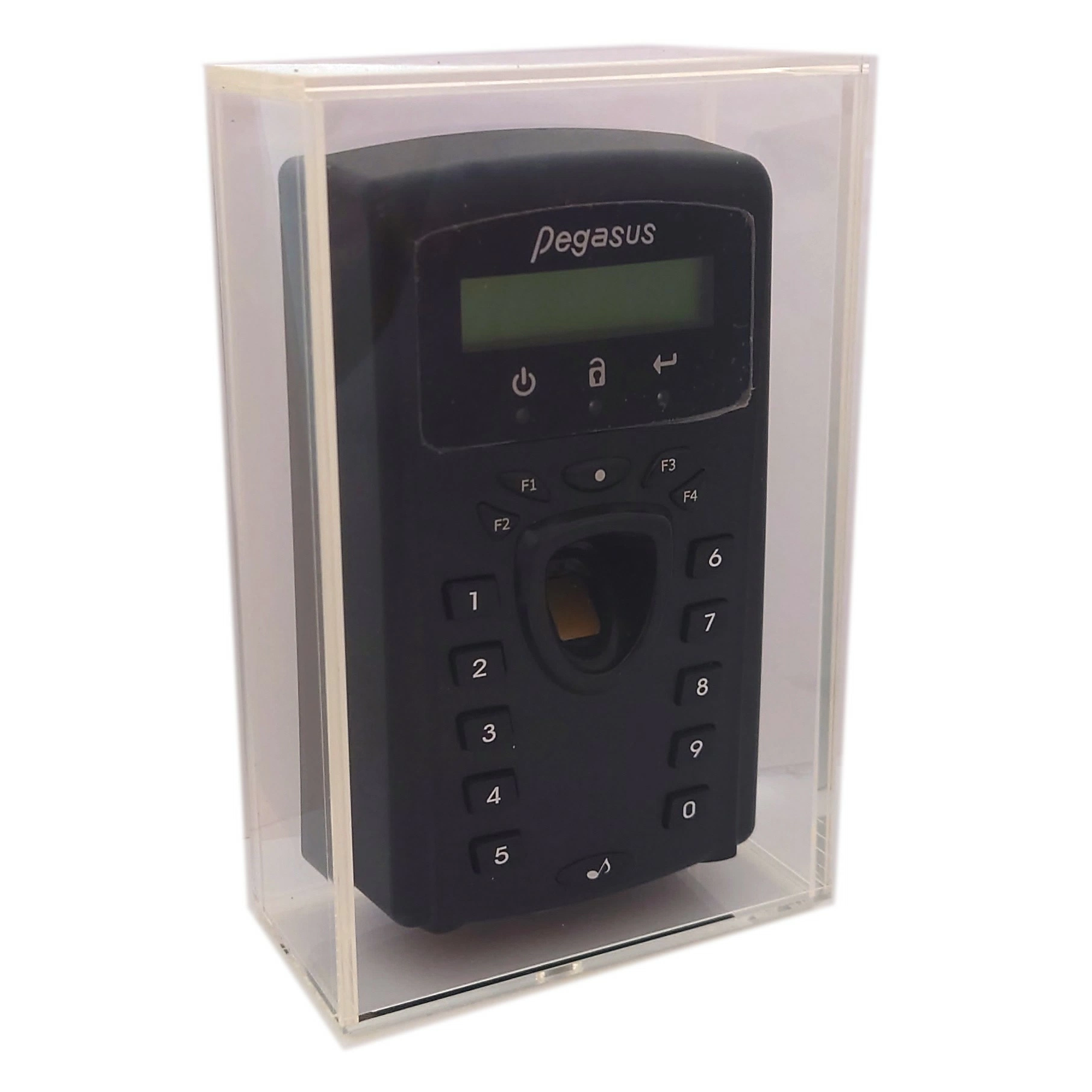

Shielding housing
- Model No. M-10-3750-2
- Dimensions: 200(L) x 125(W) x 60(H)mm
- Material: Acrylic
- To avoid the wind and rain for extending use life.
- Waterproof protection.
- To prevent press the button by the random.
- To avoid dust contaminate the machine.
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PP-3702XNT ; PP-3702XHT ; PP-3702XM0T ; PP-3702XFT
Frequency
125KHz ASK ; 125KHz FSK ; 13.56MHz ; 13.56MHz
Compatibility
ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 ; H.I.D. ; ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(optional) ; ISO18092 FeliCa
User Capacity
32000 card capacity ; 32000 events
Power Voltage
DC 12V
Interface
RS-485, TCP/IP, RS-232(Optional)
Wiegand Input
Wiegand (26/34 bits)
Input
Exit push button / Door monitor / Security sensor
Output
Alarm output / Tamper switch output / Electric lock output
LCD Panel
YES
Keypad
YES
Material
ABS
Dimensions (L x W x D) mm
174 x 100 x 43
IP Rating
IP54
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
