Exit push Button(switch sealed to IP65)

PBT-211001 Exit push Button(switch sealed to IP65)

Model number： PBT-211001

Inquiry
Quantity
    Share

    Specification

    Size5(plate) / 26.7(total depth) x 75(W) x 120(L)mm
    Net Weight60g±5%
    Hole distance84mm
    MaterialFace plate: stainless steel / Button: stainless steel
    Operating temperature-20℃ ~ 55℃
    CircuitPUSH ON
    Maximum limit power2A / 36V
    Contact resistance≦50mΩ
    Insulation resistance≧50MΩ
    Insulation strength500VAC 1min
    Life1,000,000 cycles (Mechanical) / 200,000 cycles (Electrical)
    Key stroke2 mm
    IP RATINGSwitch sealed to IP65

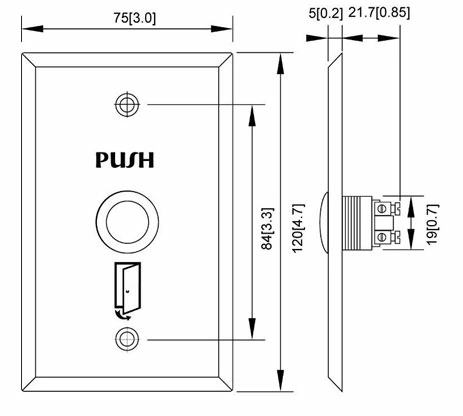

    Dimension: mm[inch]

    /storage/system/Exit_push_button/Dimensions-for-PBT-211001.webp

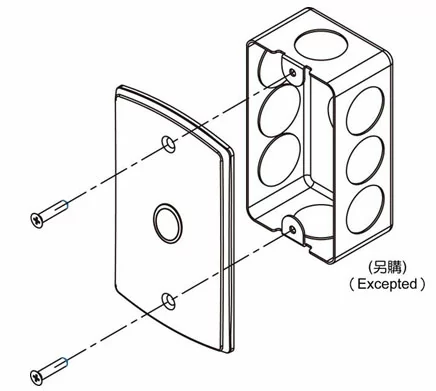

    How to assembly

    /storage/system/Exit_push_button/How-to-assembly-for-PBT-211001.webp

    We reserve the right to change the specification without prior notice or obligation!
