Touch Keypad Networked ControllerTouch Keypad Networked Controller

Model number: PP-83

Inquiry
Quantity

Features

  • Security function to activate or deactivate all or selected sensors.
  • Support fire alarm signal to release the door automatically.
  • Not compare and add card by reading.
  • Switching on alarm automatically, if failed input password for three times and warning
    management to avoid illegal entrance.
  • Relay supported with shockproof, to avoid illegal open door entrance.
  • Up to 90 codes 4 digits door PIN.
  • Setting door monitoring time becomes second unit or minute unit. Up to 98 minutes.
  • Setting door release time becomes second unit or minute unit. Up to 97minutes.
    Excellent multiple operation modes :(1) Card only (2) Card + PIN (3)Door PIN only
    (4)Card Number+PIN (5)Free access (6) Automatic operation mode by time zones.
  • All operation modes with PIN are supported by selectable duress function. Also, keypad is lockable to become dumb.
  • Supports 8/24/48/64/96 floors lift access control.
  • Group function by pressing password.
  • Full APB (anti-passback), time zone.
Touch Keypad Networked Controller

Specification

MODEL NO.PP-83XNPP-83XHPP-83XM0PP-83XF
FREQUENCY125KHz ASK125KHz FSK13.56MHz13.56MHz
COMPATIBILITYISO18000-2 EM4001,
4100, 4102, TEMIC 5567
H.I.D.ISO14443 A, MIFARE® Classic, Plus,
Ultralight, DESFire, NFC (card simulation),
ISO14443 B(Optional), ISO15693(Optional)
ISO18092 FeliCa
USER CAPACITY32,000 card capacity, 32,000 events
POWER VOLTAGEDC12~24V
INTERFACERS-485 / RS-232 / TCP/IP(Optional)
WIEGAND INPUTWiegand 26 /34bits
INPUTExit push button / Door monitor / Security sensor
OUTPUTAlarm output / Tamper switch output / Electric lock output
KEYPADYES
MATERIALABS
DIMENSIONS (LXWXH)MM116x81x30
IP RATINGIP54
DOORBELLYES

System configuration

Access controller system
Touch Keypad Networked Controller

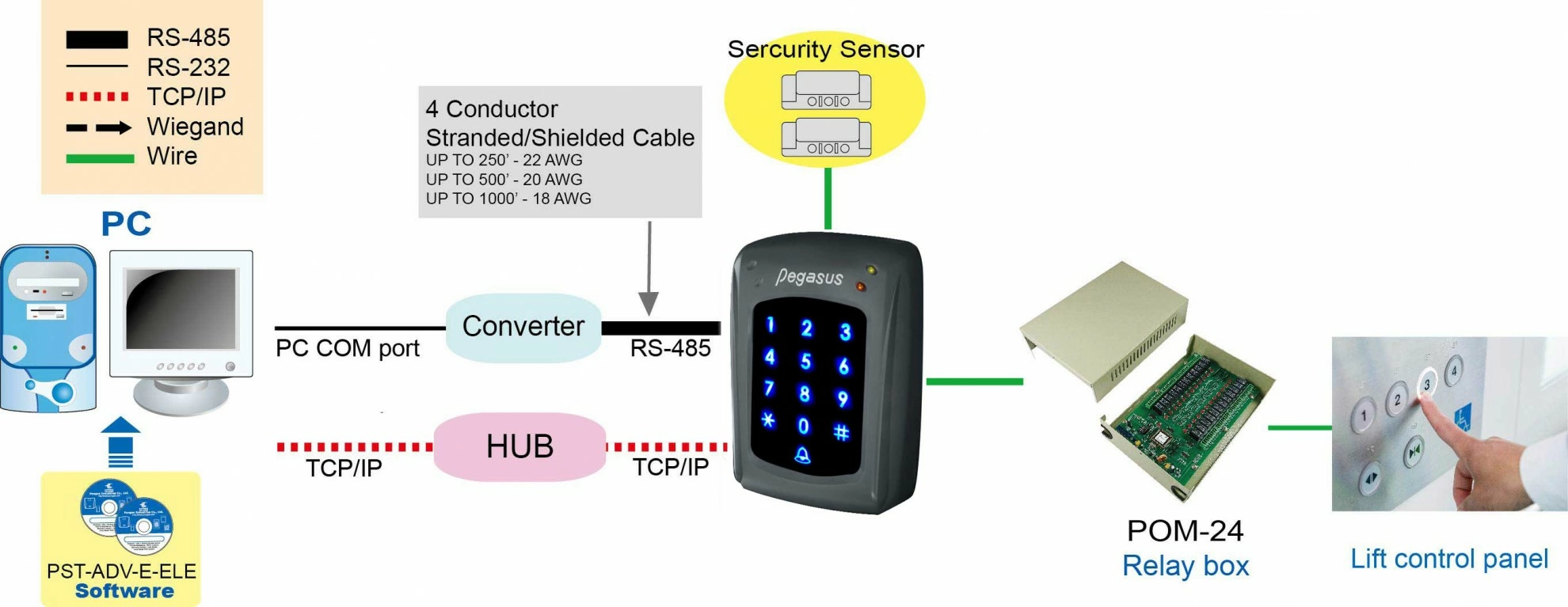

Lift access controller system
Touch Keypad Networked Controller

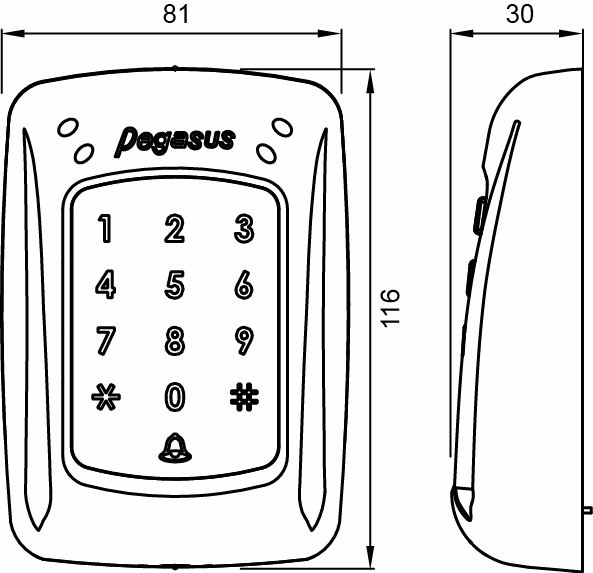

Dimension: mm

Touch Keypad Networked Controller
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.

We reserve the right to change the specification without prior notice or obligation!
