Model：PGL-180F
400LBs, 180KGs Waterproof Electromagnetic Lock(Side Mount)
Product
Features
- Holding force: 400LBs (180KGs)
- Voltage : 12V/24VDC (Selectable)
- Optional bracket available to install
- Suitable for security door (Out Swing)
- Waterproof IP rate for outdoor installation
Specification
| Holding Force | 400 LBS (180 KGS) | |
| Voltage / Current | DC 12V (370 mA) / DC 24V (185 mA) | |
| Door Monitoring | — | |
| LED Indicator | — | |
| Timer | — | |
| Relay Dry Contact Rating | — | |
| Material | Magnet | Stainless steel |
| Armature Plate | Steel | |

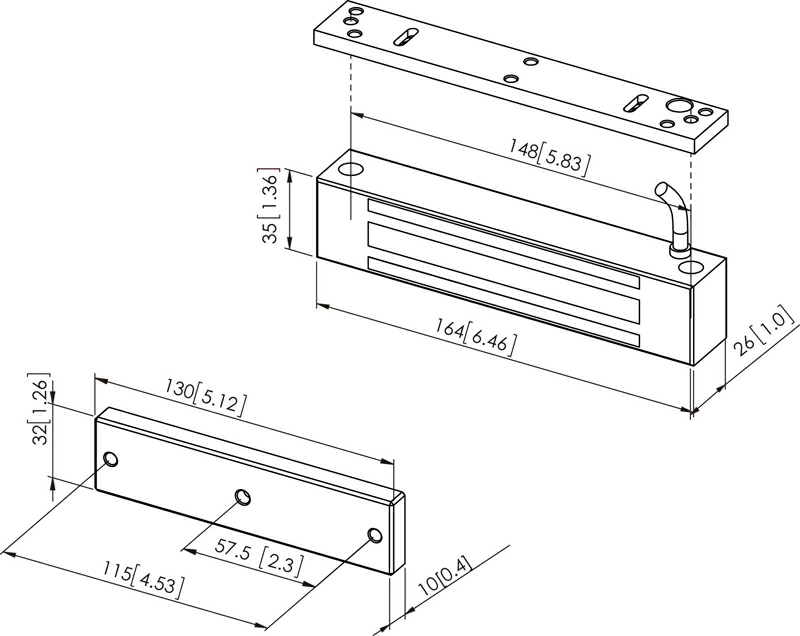

| Dimensions (L x W x D) | Magnet | 164 x 35 x 26 mm |
| Armature Plate | 130 x 32 x 10 mm | |
| Unit Weight | 1.5 kg ± 1% | |
| Ingress Protection (IP) | YES | |
| Bracket Type | • L Bracket: PG-BLO180 • L & Z Bracket: PG-BLZ180 |
|
Application
For aluminum steel or wooden door, brass door, glass door with frame
Accessories
L type fixed bracket PG-BLO180
L & Z type fixed bracket PG-BLZ180
We reserve the right to change the specification without prior notice or obligation!
Specification
Holding Force
400LBs (180KGs)
Voltage / Current
DC 12V(370mA) / DC 24V(185mA)
Door monitoring
---
LED indicator
---
Timer
---
Relay dry contact rating
---
Material
Magnet：Stainless steel / Magnet：Steel
Dimensions (L x W x D) mm
Magnet：164x35x26 / Magnet：130x32x10
Unit weight (kg)
1.5kgs±1%
Ingress Protection (IP)
YES
Bracket Type
L Bracket: PG-BLO180 / L & Z Bracket: PG-BLZ180
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
