Model：PGL-401

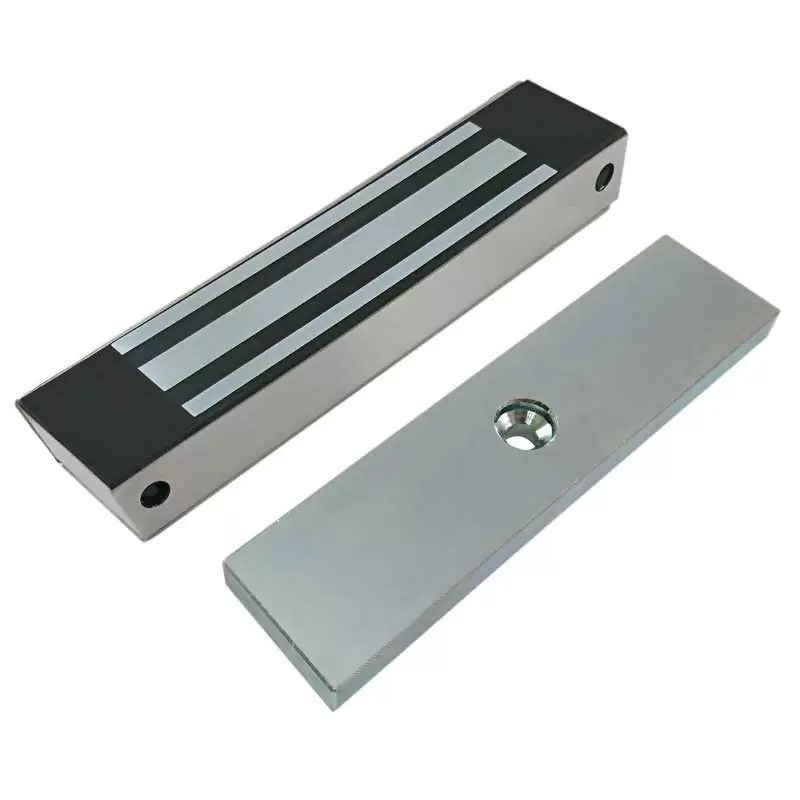

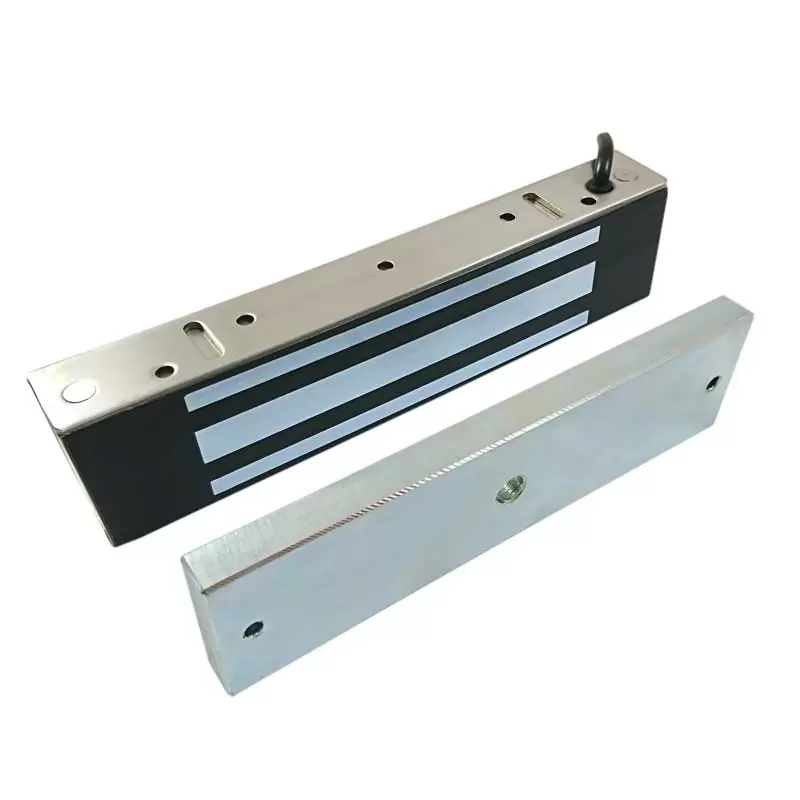

800LBs, 360KGs Waterproof Electromagnetic Lock(Side Mount)
Compare
Product
Features
- Holding force: 800LBs (360KGs)
- Voltage : 12V/24VDC (Selectable)
- Optional bracket available to install
- Suitable for security door (IN & Out Swing)
- Waterproof IP rate for outdoor installation
Specification

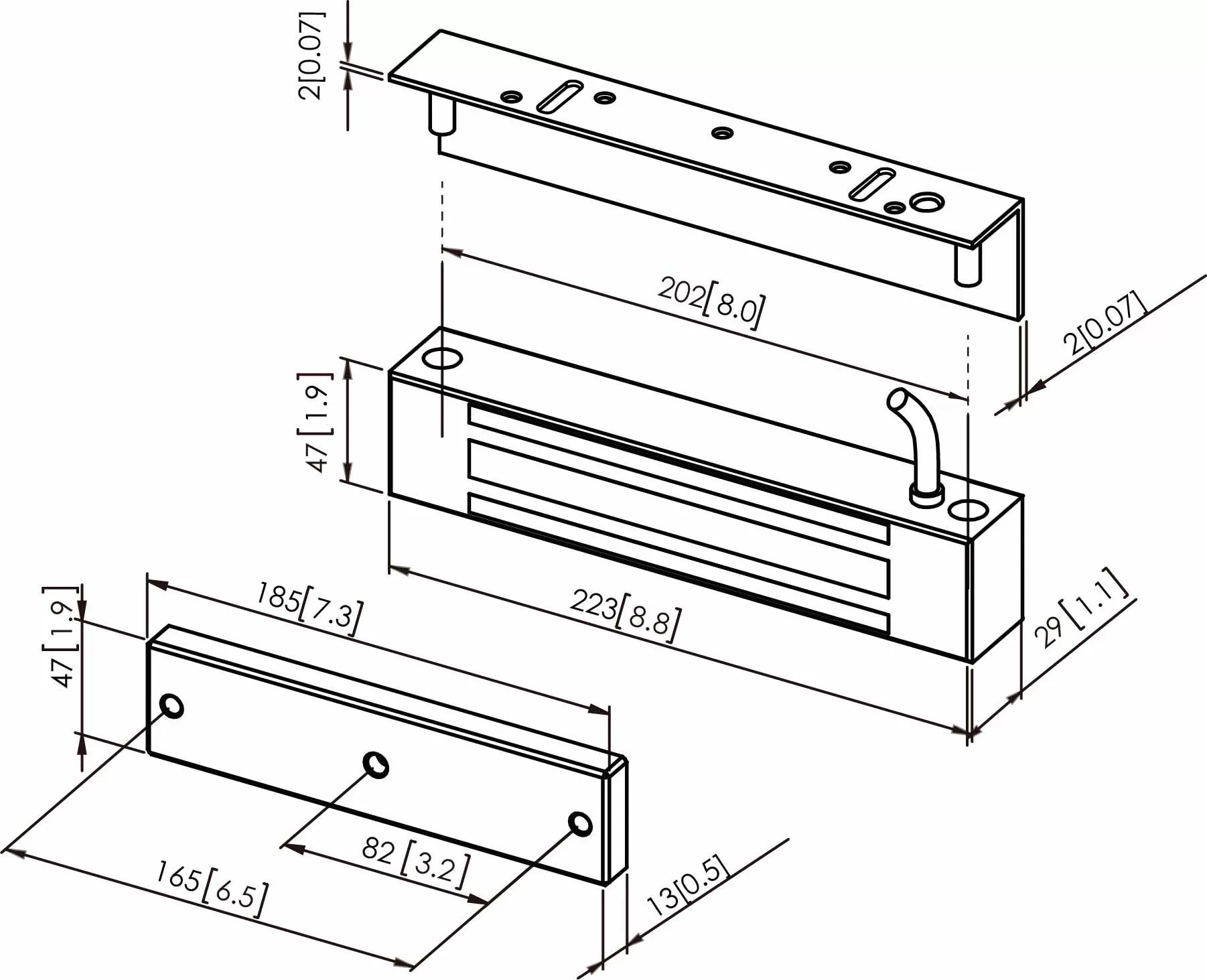

Dimensions: mm[inch]
Application
For aluminum steel or wooden door, brass door, glass door with frame
Accessories
Z fixed bracket (For In-Swing Door) PG-BOZ110A
We reserve the right to change the specification without prior notice or obligation!
Specification
Voltage /Current
DC 12V(420mA) / DC 24V(210mA)
Holding Force
800LBs (360KGs)
Door monitoring
YES
LED indicator
---
TIMER
---
Relay dry contact rating
---
Armature
Steel
Unit weight (kg)
3kgs±1%
Bracket Type
Z Bracket: PG-BOZ110A
Ingress Protection(IP)
YES
