Model：PGL-600F

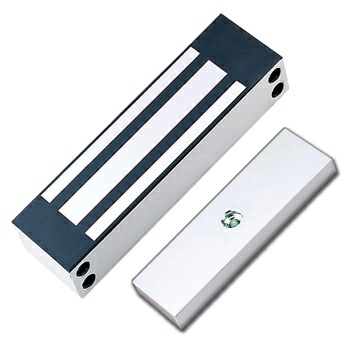

1300Lb,600Kgs Weather Proof Electromagnetic Lock(Side Mount)
Compare
Product
Features
- Holding force: 1300LBs (600KGs)
- Voltage : 12V/24VDC (Selectable)
- Optional bracket available to install

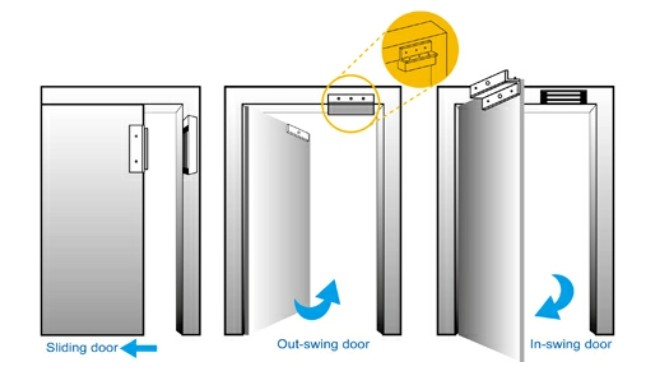

- Suitable for security door (Out Swing)
- Waterproof IP rate for outdoor installation

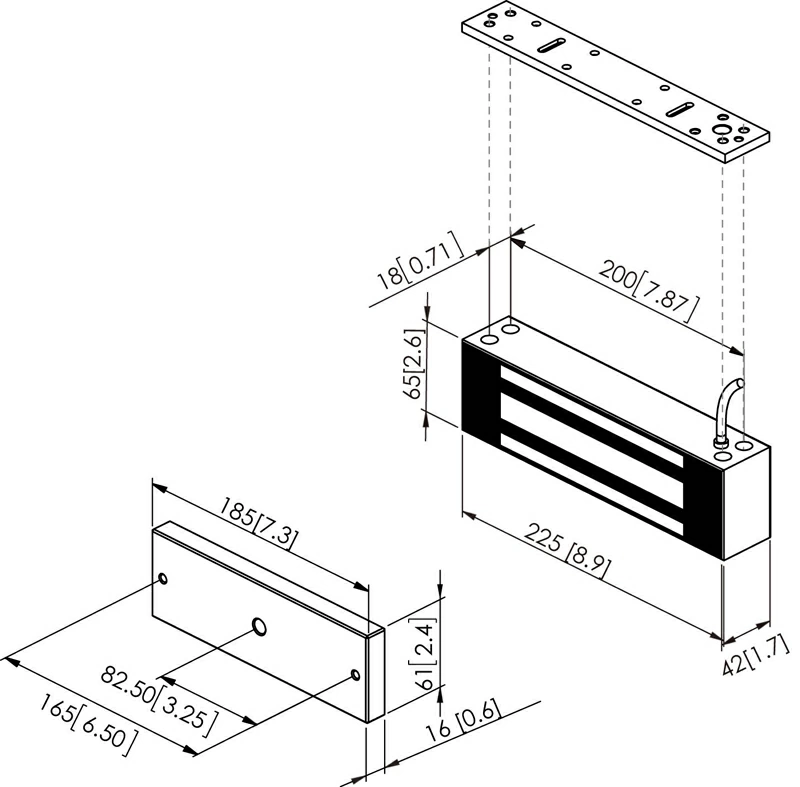

Dimensions: mm[inch]
Application
For aluminum steel or wooden door, brass door, glass door with frameAccessories

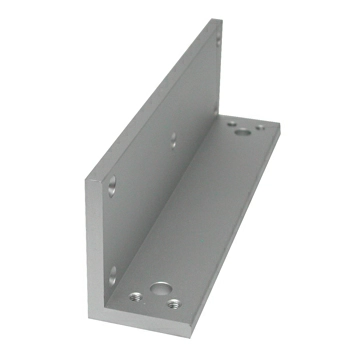

L type fixed bracket PG-BLO600FWe reserve the right to change the specification without prior notice or obligation!
Specification
Voltage /Current
DC 12V(500mA) / DC 24V(250mA)
Holding Force
1300LBs (600KGs)
Door monitoring
YES
LED indicator
---
TIMER
---
Relay dry contact rating
1A ,24VDC/AC
Armature
Steel
Unit weight (kg)
5kgs±1%
Bracket Type
L Bracket: PG-BLO600F L & Z Bracket: PG-BLZ600F
Ingress Protection(IP)
YES
MAGNET
185x61x16
