Model：PGL-600

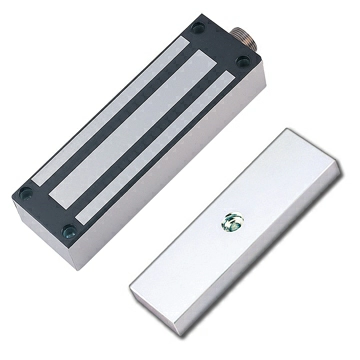

1300LBs, 600KGs Waterproof Electromagnetic Lock(Front Mount)
Product
Features
- Holding force: 1300LBs (600KGs)
- Voltage : 12V/24VDC (Selectable)
- Optional bracket available to install

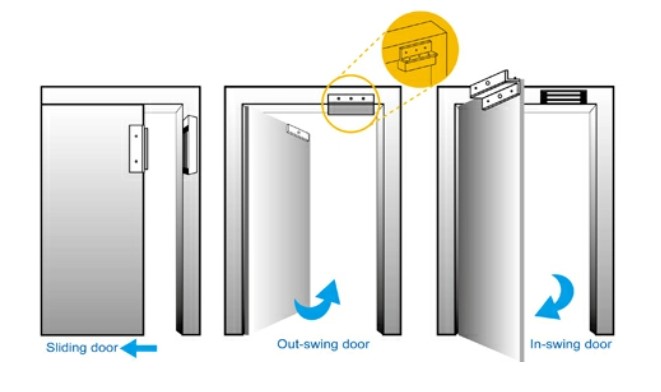

- Suitable for security door (IN Swing)
- Waterproof IP rate for outdoor installation

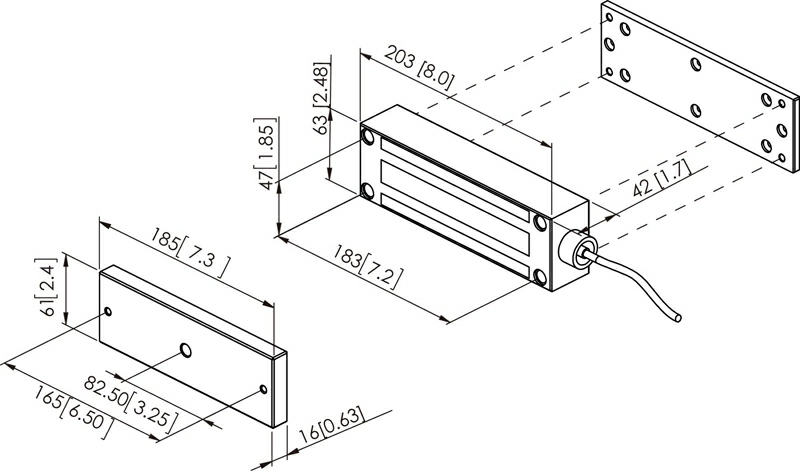

Dimensions: mm[inch]
Application
For aluminum steel or wooden door, brass door, glass door with frame

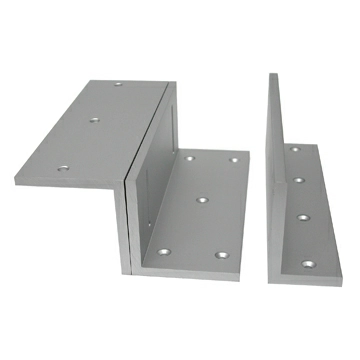

Accessories
L type fixed bracket PG-BLO600
L & Z type fixed bracket PG-BLZ600
We reserve the right to change the specification without prior notice or obligation!
Specification
Holding Force
1300LBs (600KGs)
Voltage / Current
DC 12V(500mA) / DC 24V(250mA)
Door monitoring
YES
LED indicator
---
Timer
---
Relay dry contact rating
1A ,24VDC/AC
Material
MAGNET：Stainless steel / ARMATURE：Steel
Dimensions (L x W x D) mm
MAGNET：203x63x42 / ARMATURE：185x61x16
Unit weight (kg)
5kgs±1%
Ingress Protection (IP)
YES
Bracket Type
L Bracket: PG-BLO600 / L & Z Bracket: PG-BLZ600
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
