Model：PGL-180

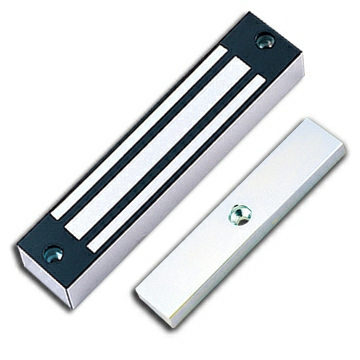

400LBs, 180KGs Waterproof Electromagnetic Lock(Front Mount)
Compare
Product
Features
- Holding force: 400LBs (180KGs)
- Voltage : 12V/24VDC (Selectable)
- Optional bracket available to install

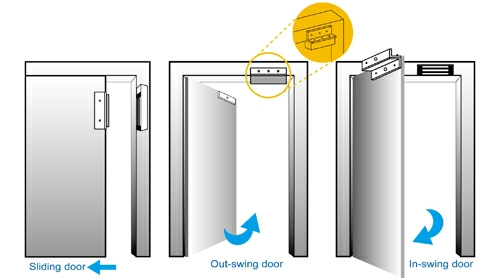

- Suitable for security door (IN Swing)
- Waterproof IP rate for outdoor installation

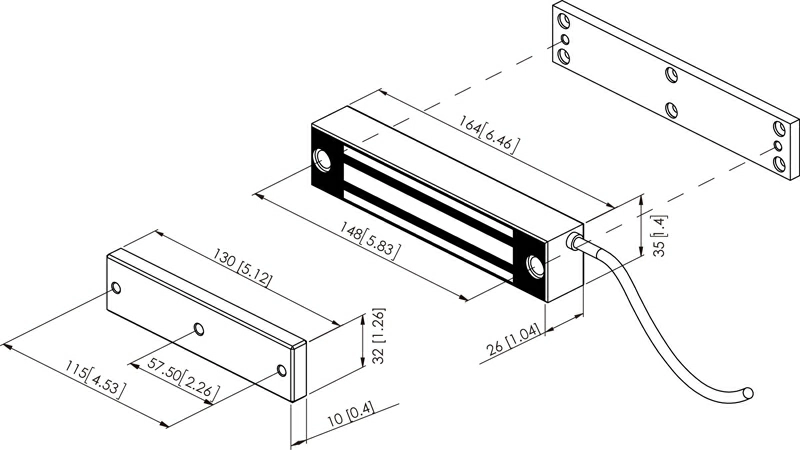

Dimensions: mm[inch]
Application
For aluminum steel or wooden door, brass door, glass door with frame
Accessories

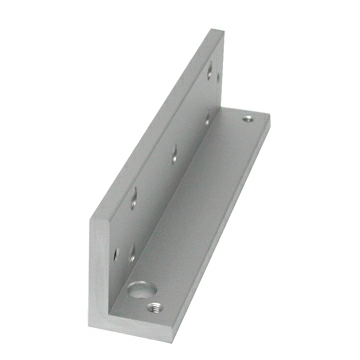

L bracket PG-BLO180

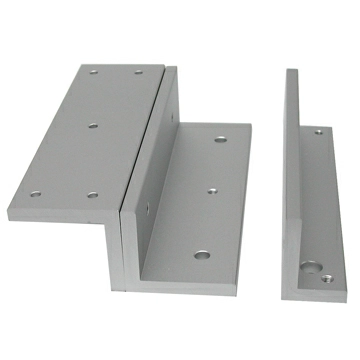

L & Z fixed bracket PG-BLZ180
We reserve the right to change the specification without prior notice or obligation!
Specification
Voltage /Current
DC 12V(370mA) / DC 24V(185mA)
Holding Force
400LBs (180KGs)
Door monitoring
---
LED indicator
---
TIMER
---
Relay dry contact rating
---
Armature
Steel
Unit weight (kg)
1.5kgs±1%
Bracket Type
L Bracket: PG-BLO180 L &Z Bracket: PG-BLZ180
Ingress Protection(IP)
YES
