Model：PGS-702B
Fail Safe Type Electric Strike
Compare
Product
Product Description
- Fail safe type(Released as power off)
- Operation pair with dead bolt mechanical lock.(MK-338)
- Could be continuously energized.

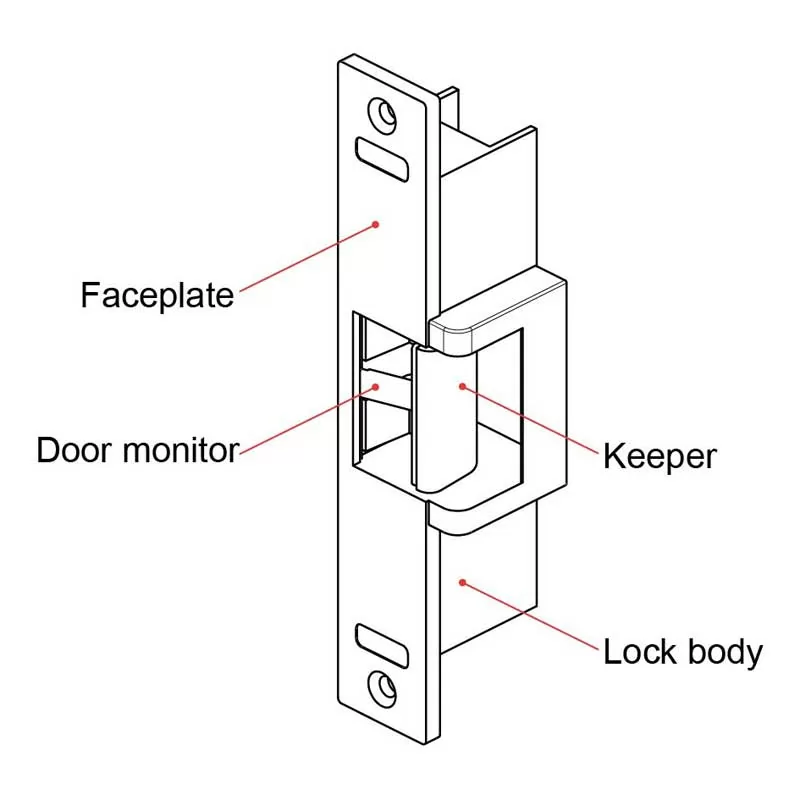

- With door monitoring switch.
- Professional electric strike lock for heavy-duty doors.
- Application: For aluminum, steel, wooden or brass door.

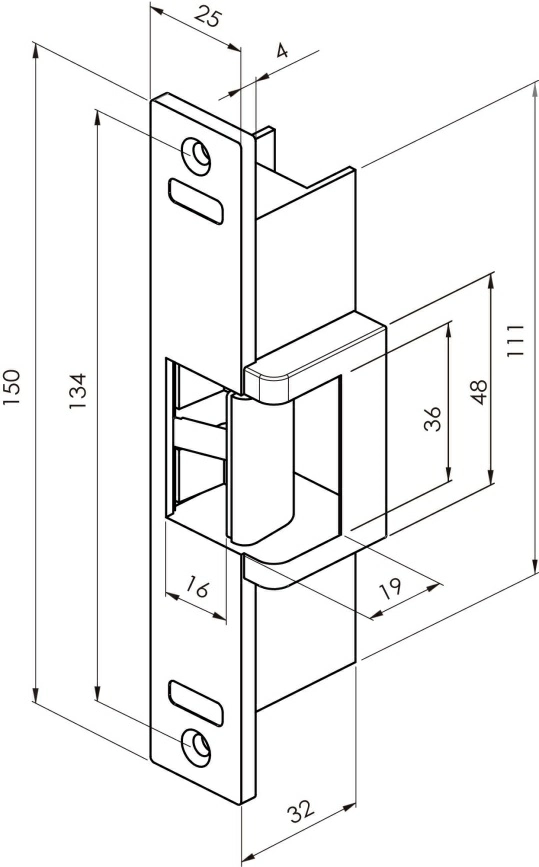

Dimension:
Ordering information
| PGS-702B | Fail safe type Electric Strike, 12V |
|---|---|
| PGS-702B-24V | Fail safe type Electric Strike, 24V |
We reserve the right to change the specification without prior notice or obligation!
Specification
Material
Zinc alloy(Faceplate/Lock body) / Stainless steel(Latch)
Lock size (mm)
150(L) x 25(W) x 32(H)
Approx. weight
420g±1%
Nominal voltage
DC12V / DC24V
Standby current
120mA(12V) / 60mA(24V)
Working current
0mA
Temp. range
-20oC ～70oC
Power consumption
1.5W
Depth of lock slot
15mm
