Model：PGS-501

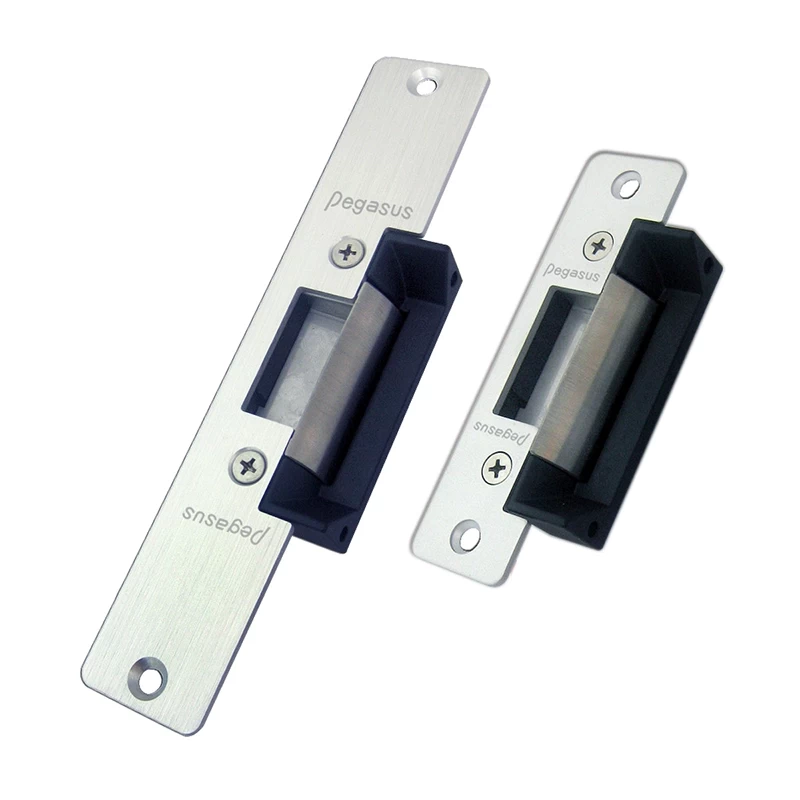

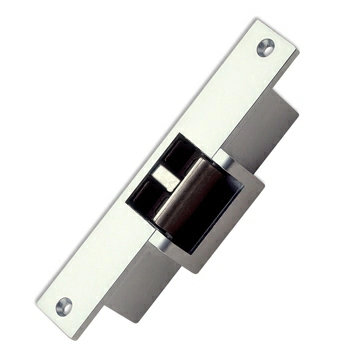

ANSI standard Fail-Safe / Secure Adjustable Electric Strike
Compare
Product
Features

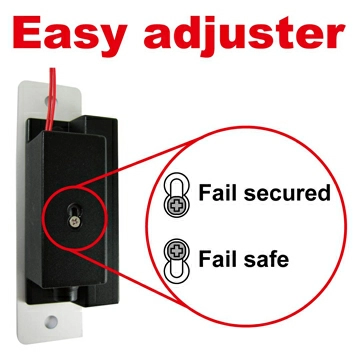

- Fail Secure / Fail Safe Selectable Electric type(ANSI Strike plate)。
- All metal construction, safe and durable
- Suitable for Aluminum door, iron door, copper sulfide door, wooden door

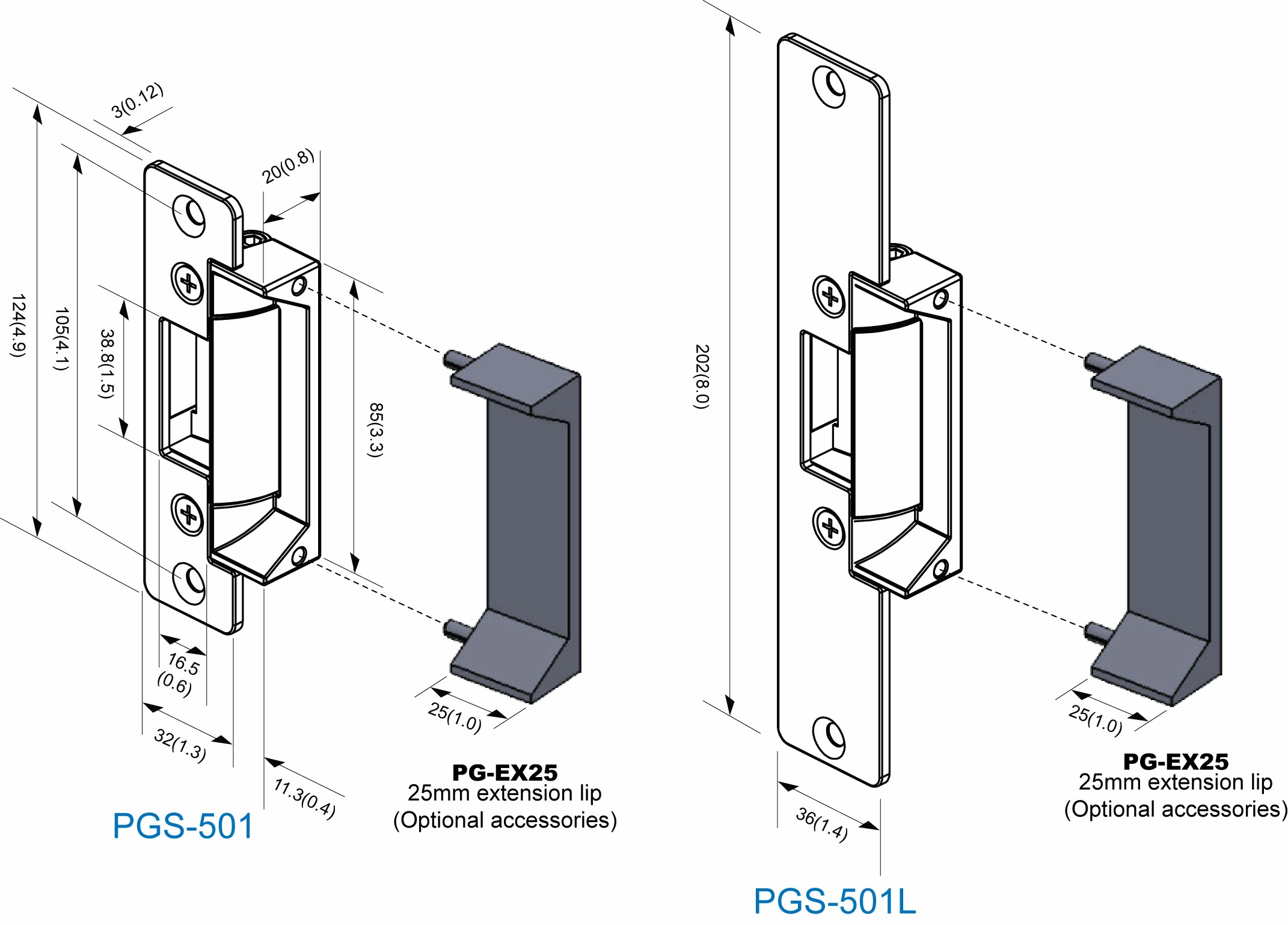

Dimensions: mm[inch]
Optional accessories
 |
 |
| PG-EX25 25mm extension lip |
PG-EX50 50mm extension lip |

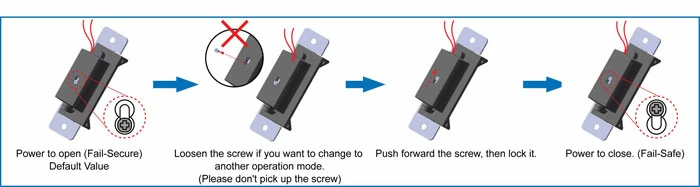

How to change operation mode of electric strike
Accessories
| Model No. | MK-738 |
|---|---|
| Dimensions(LxWxD)mm | 130x24.5x50 |
| Approx. weight | 690g±1% |
| Features | Pair with latch bolt lock. Could be released by key or knob. (By key: MK-738-1(optional) |
| Applications | For Aluminum door, iron door, copper sulfide door |
| Door thickness | 36~56mm |
Ordering information
Front plate(Optional)※The minimum order quantity: 200 pcs
| Model No. | Appearance | Dimensions | Material |
|---|---|---|---|
| PG-FP150 |  |
150 x 28.6mm | Stainless steel |
| PG-FP182 |  |
182 x 32mm | Stainless steel |
| PG-FP202 |  |
201.6 x 32 x 16mm | Aluminum |
| PG-FP209 |  |
209 x 31.7mm | Stainless steel |
| PG-FP251 |  |
251 x 25mm | Stainless steel |
We reserve the right to change the specification without prior notice or obligation!
Specification

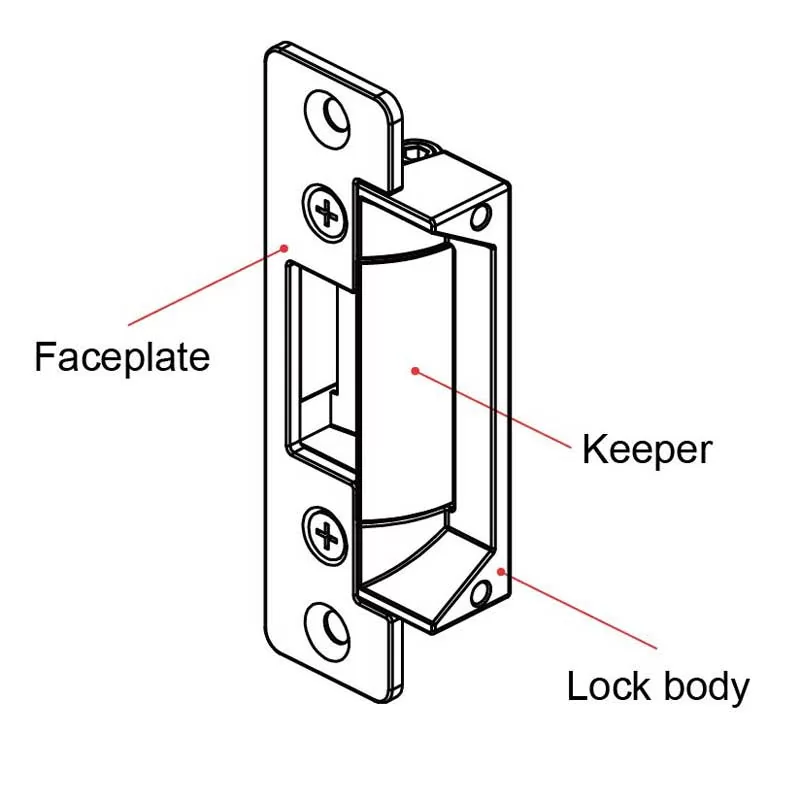

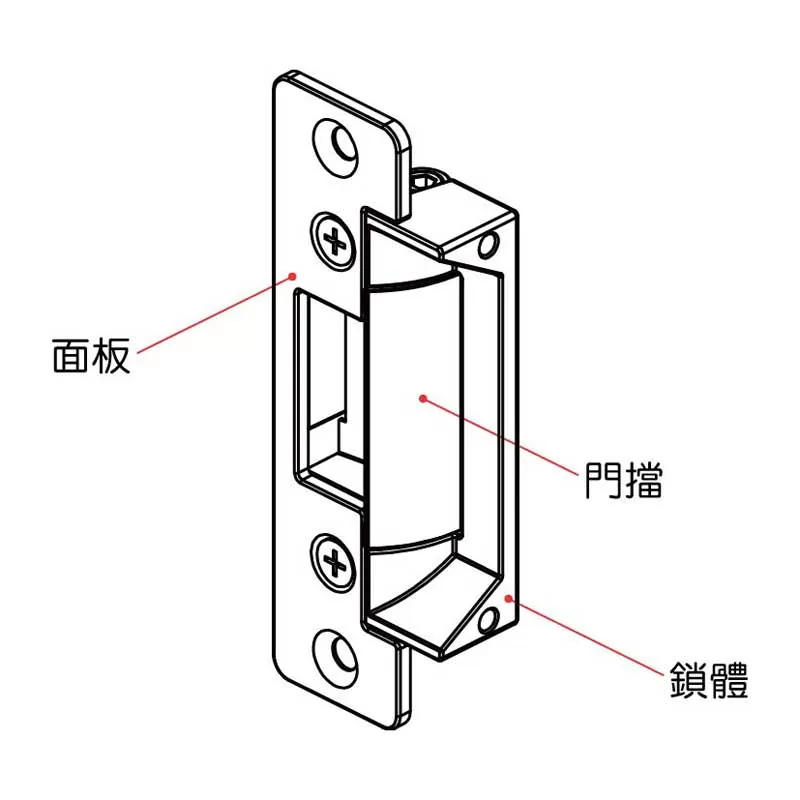

Keeper
Stainless steel
Net Weight (g)
PGS-501:165g±1% PGS-501L:280g±1%
Type
Fail Secure / Fail Safe selectable
Lock
Aluminum alloy
PGS-501L
PGS-501L-24V
PGS-501S
PGS-501S-24V
PGS-501SL
PGS-501SL-24V
Latch bold
Up to 15mm
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
