Model：PGS-502NS
ANSI standard Fail-Secure Electric Strike
Compare
Product
Features
- The PGS-502 is a ANSI size electric door strike.
- Fail-Secure Type.
- Could be continuously energized.
- For heavy duty door.
- Holding force: 1200Kg
- Endurance:1,000,000 cycles.

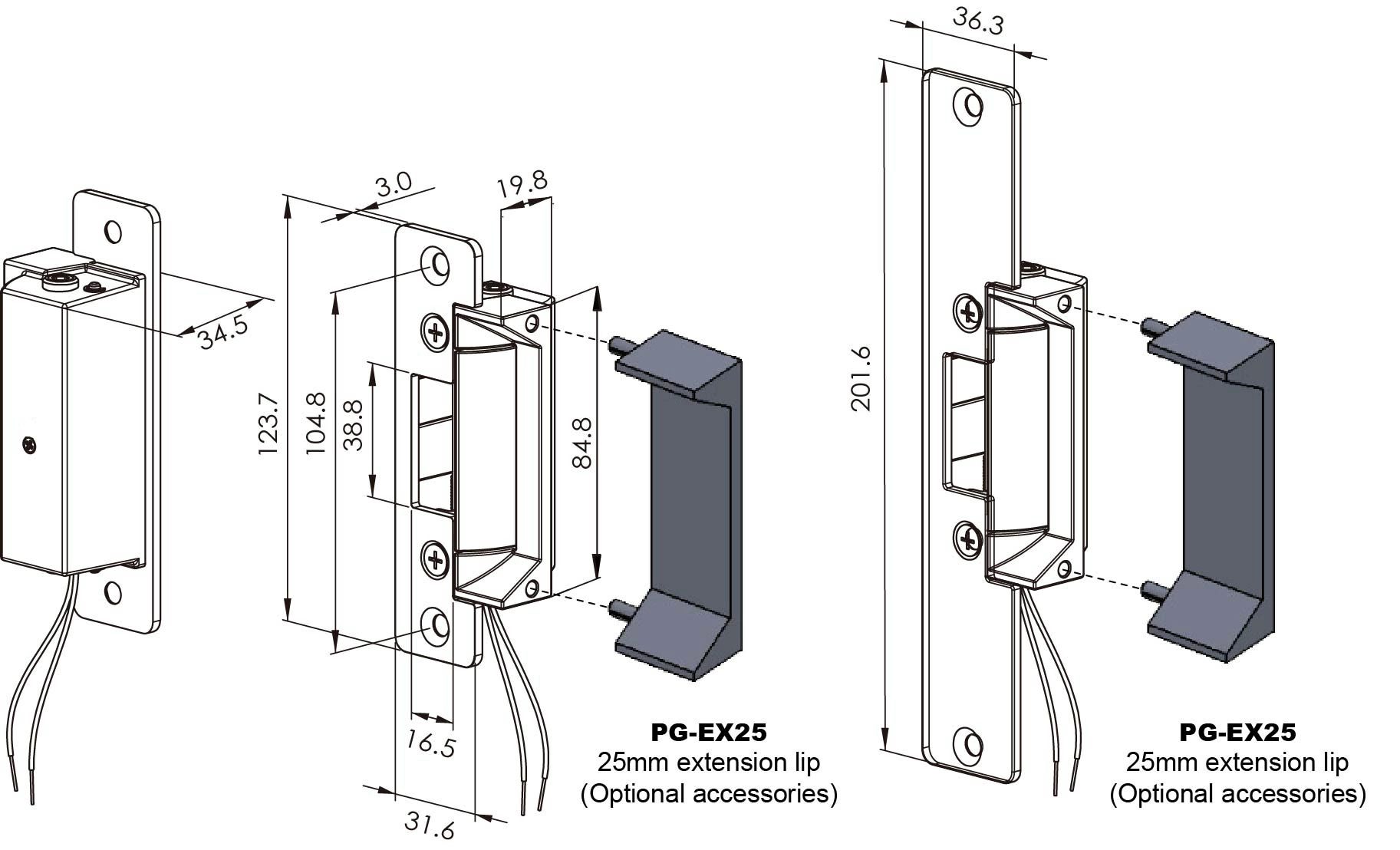

Dimensions: mm
Optional accessories
PG-EX25
25mm extension lip
PG-EX50
50mm extension lip
Ordering information
| PGS-502NS | : ANSI Standard electric strike, front plate: 123.7x31.6mm, aluminum, DC12V |
| PGS-502NSL | : ANSI Standard electric strike, front plate: 201.6x36.3mm, aluminum, DC12V |
| PGS-502NSS | : ANSI Standard electric strike, front plate: 123.7x31.6mm, stainless steel, DC12V |
| PGS-502NSSL | : ANSI Standard electric strike, front plate: 201.6x36.3mm, stainless steel, DC12V |
We reserve the right to change the specification without prior notice or obligation!
Specification
Voltage /Current
DC12V (400mA)
DOOR MONITORING SWITCH
NO
Keeper
Stainless steel
Net Weight (g)
PGS-502NS:205g±1% PGS-502NSL:320g±1%
Model No.
PGS-502NS
Type
Fail Secure
Lock
Aluminum alloy
Latch bold
Up to 15mm
Maximum for door latch
38(W) x16(H)mm
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
