Elevator payment systemElevator payment system

Model number: PP-6750VLM1R5-FLV

Inquiry
Quantity
/storage/system/lift_access_control_system/Prepaid-Access-Control-System.jpg

Introduction

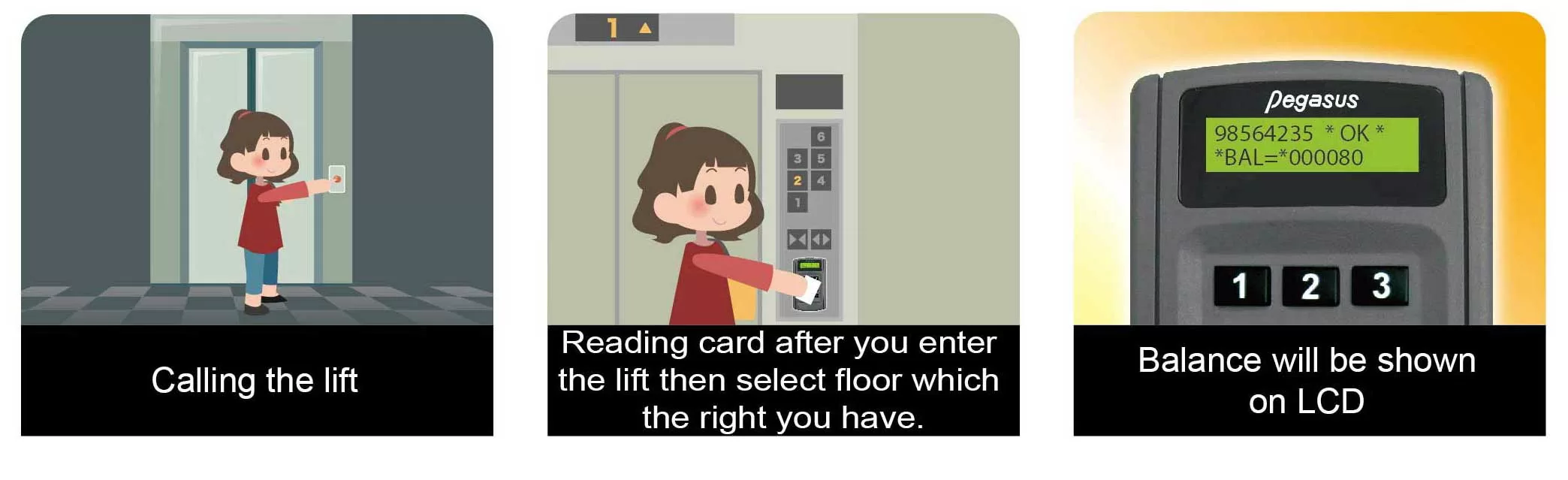

  • This system is designed to pay elevator usage fees by contactless prepaid smartcard.
  • Supporting on-line or standalone operation.
  • The card dispensing software defines and stores the ID number, building number,
  • expiry date, prepaid amount and accessible floors into the card.
  • Supports access control for maximum 40 floors.
  • The controller would alarm when the value is less than 15 units by error sound.
  • Supports user card enrollment from controller operation or software upload.
  • Prepaid card is locked with specific key to increase security of data.
  • For easy different project management, the key can be specified according to request.

System configuration

https://sc01.alicdn.com/kf/UTB84PhifFfJXKJkSamHq6zLyVXaH/200226972/UTB84PhifFfJXKJkSamHq6zLyVXaH.jpg

Ordering information

  • PP-6750VL/M1R5-FLV : Elevator access controller
  • PUA-310V-0M2R2Y4 : 13.56MHz dispenser(RS-232 interface)
  • PUA-310V-0M2U2Y4 : 13.56MHz dispenser(USB interface)
  • PG-OUTMOD-8 : 8 floors relay box
  • POM-24 : 24 floors relay box
  • PCT-R2R5 : RS-232/RS485 Converter
  • PC-T100 : TCP/IP Converter
  • PCT-UR5 : USB/RS485 Converter
  • PSA-ADV-E-FLV : Elevator payment system software
/storage/system/access_controller/6750V/SolutionI-6750V.jpg

We reserve the right to change the specification without prior notice or obligation!
