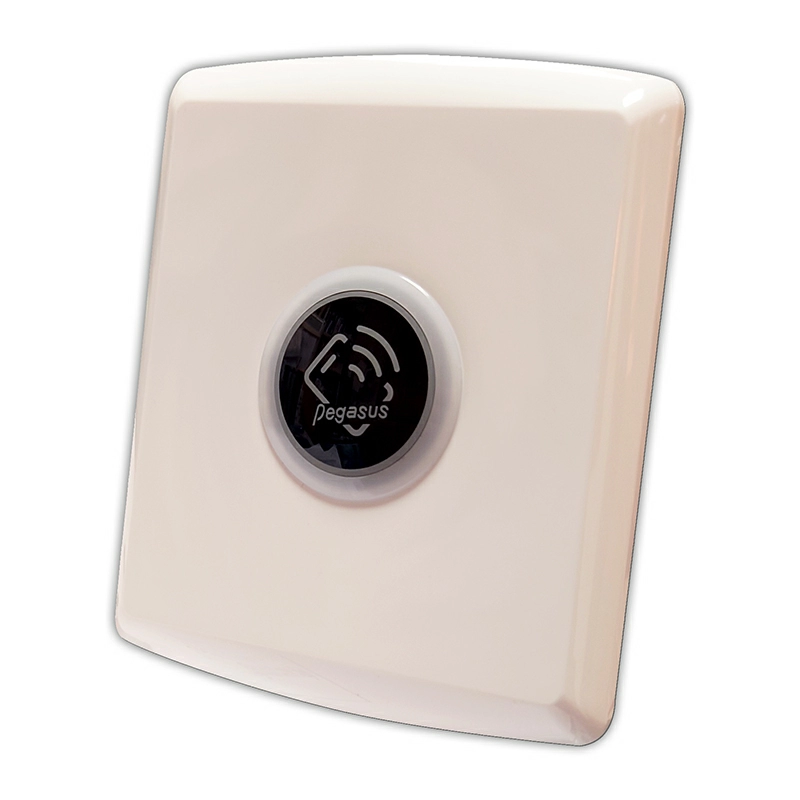

Flush-Mount RFID reader

Flush-Mount RFID readerFlush-Mount RFID readerFlush-Mount RFID readerFlush-Mount RFID readerFlush-Mount RFID reader

Model number： PP-810

Inquiry
Quantity
    Share

    Features

    • Easily interfaced with Pongee or other standard access controller for management of access control, time attendance & lift access control systems.
    • With bi-color power and status LED indication.
    • Built-in buzzer for sound notification.
    • Supplies buzzer & LED responding signal.
    • Provides tamper switch.
    • Card reader with different card formats output thru DIP switch selection.
    • Built-in CPU watch dog device to prevent the shot down.
    • Ability to read multiple formats.

    Specification

    Model No.PP-810M0WT
    FREQUENCY
    13.56MHz

    COMPATIBILITYMifare S50, Mifare Ultralight , Mifare DESFire, NFC Tag, COMBO Card
    POWER VOLTAGEDC7V-28V
    OUTPUT FORMAT/
    INTERFACE    		Wiegand 26 & 34bits & TTL
    IP RATING ---
    DIMESIONS(LXWXD)MM98x86x8

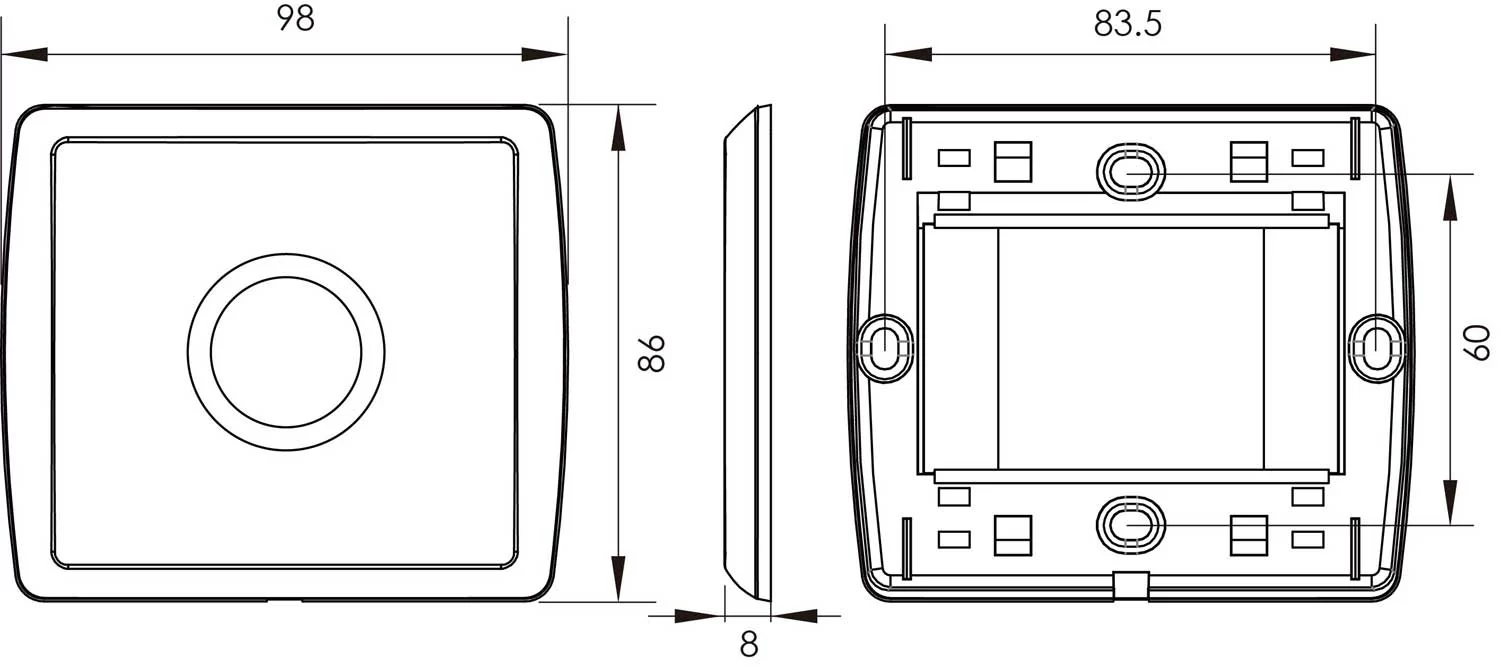

    Dimension: Unit:mm

    Flush-Mount RFID reader
    RFID Reader-Charging stationRFID Reader-HMI、PLCRFID Reader-Production controlRFID Reader-Vehicle rental system
    Charging stationHMI、PLCProduction controlVehicle rental system
    RFID Reader-Kiosk/POS SystemRFID Reader-Membership SystemRFID Reader-Library automation
    Kiosk/POS SystemMembership SystemLibrary automation

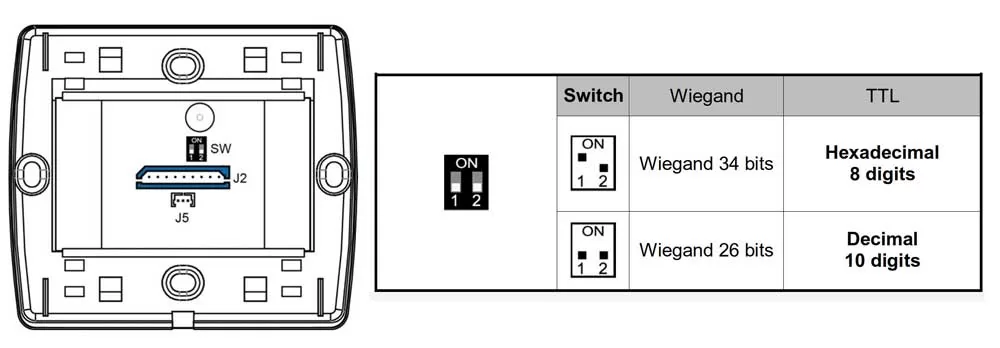

    Selectable format output thru Switch setting

    Flush-Mount RFID reader

    How to assembly

    Flush-Mount RFID readerFlush-Mount RFID reader
    Mounting box for EU standardMounting box for US standard





    Mifare is a registered trademark of NXP B.V.
    MIFARE DESFire is a registered trademark of NXP B.V.



    Specifications subject to change without notice for further modification.
