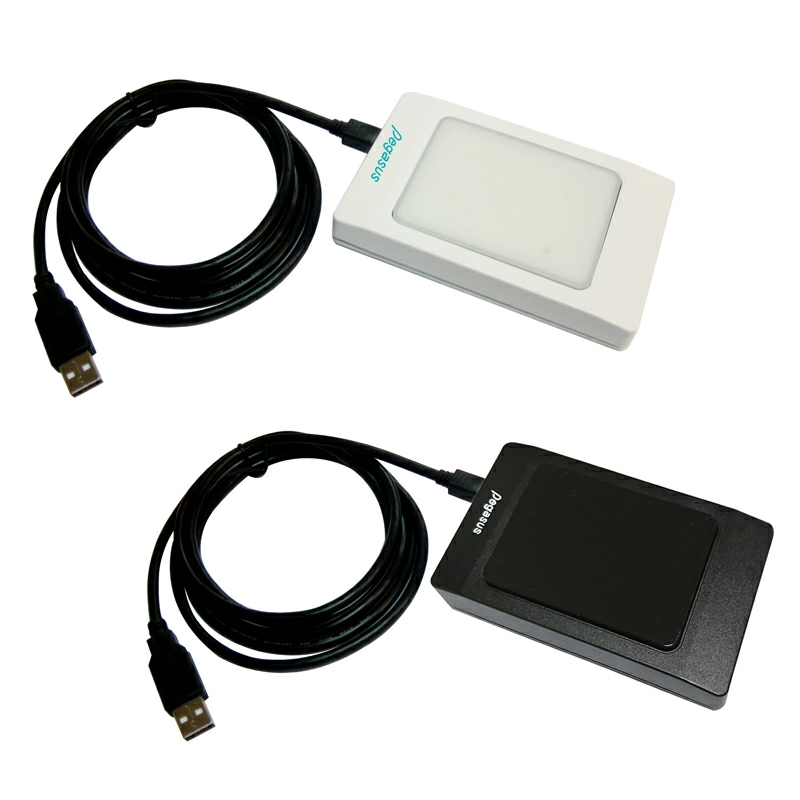

Model：PUA-310PA
RFID HF Desktop Reader

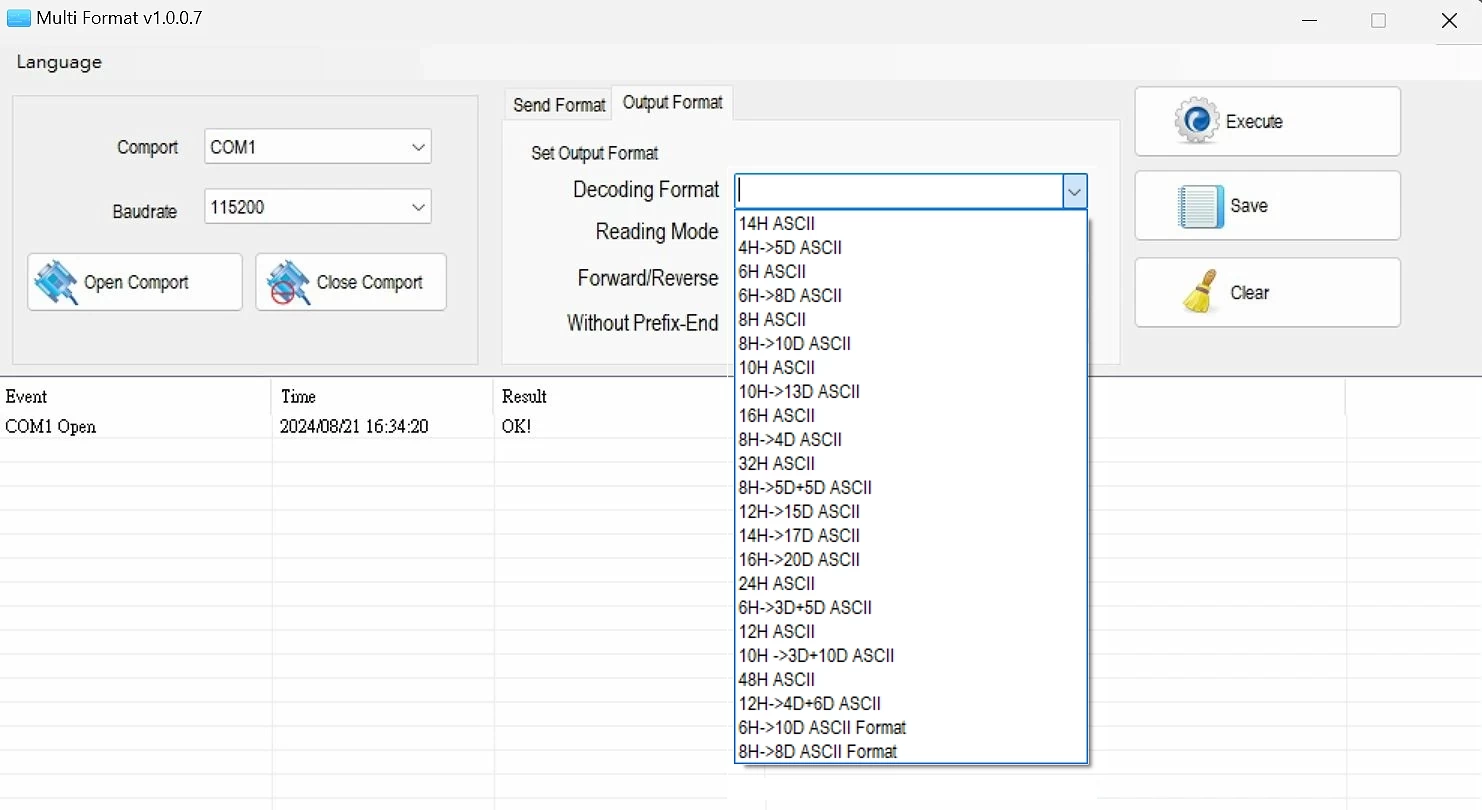

With multi card formats output by the software
Compare
Product
Features
- With multi card formats output by the software.
- Applicable cards: Mifare, Mifare Ultralight, Mifare DESFire, NFC Tag
- Serial port emulator thru USB interface.
- With CPU watch-dog function to prevent malfunction.
- LED indicators show power and operation status.
- Built-in buzzer for sound notification.
Application field
 |
 |
 |
 |
| Charging station | HMI、PLC | Production control | Vehicle rental system |
 |
 |
 |
| Kiosk/POS System | Membership System | Library automation |
MIFARE DESFire is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
Specification
Material
PC
Operating temperature
-10℃~70℃
Storage temperature
-20℃~85℃
Reading range
Max. 5cm
Output format
By Software (MultiFormat)
Compatibility
Mifare, Mifare Ultralight, Mifare DESFire, NFC Tag
Power input
By USB
RFID frequency
13.56MHz
System Support
Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10 / 11 Mac OS 8/9, OS X / Linux / Android
Dimension(mm / inch)
118 x 75 x 17 / 4.6 x 3.0 x 0.7
