Product
Features
- Multi RFID reader & writer
- Support 125KHz & 13.56MHz UID
- Support Bluetooth function. (Optional)
- 13.56MHz Writer
- Surface mount, waterproof
- Device Driver Operating System Support:
*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10
*Mac OS 8/9, OS X
*Linux/Android
*Windows 11(Optional)

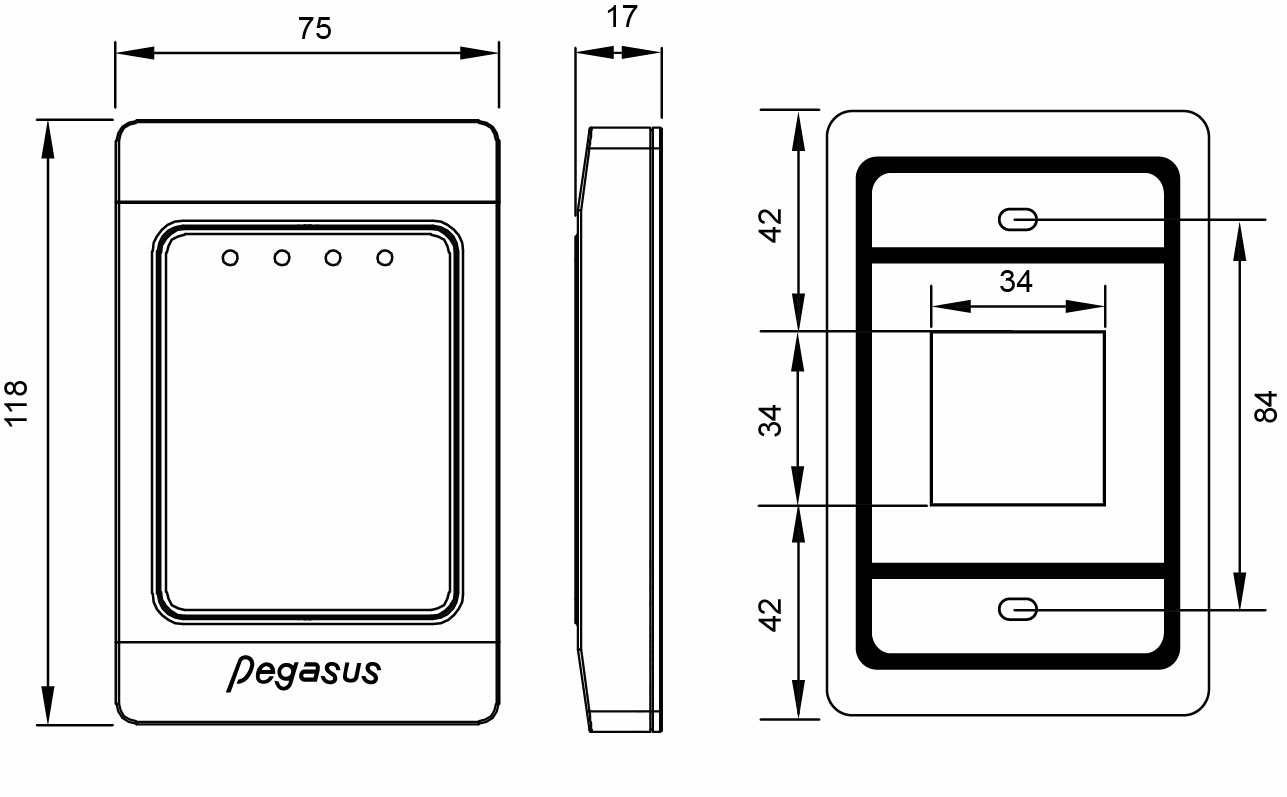

Dimension: Unit(mm)
Application field
 |
 |
 |
 |

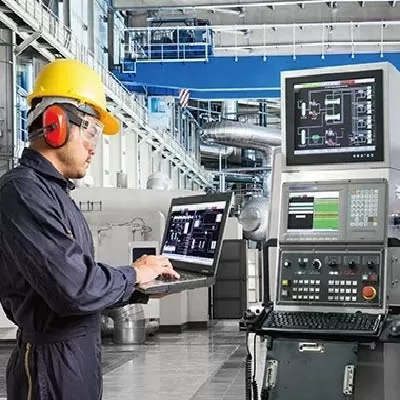

| Charging station | HMI、PLC | Production control | Vehicle rental system |
 |
 |
 |
| Kiosk/POS System | Membership System | Library automation |
Ordering information
Accessories
| Feature | Avoid intervention |
|---|---|
| Model No. | R-21-310-3N(White) / R-21-310-3B(Black) |
| Dimension | 119.6(L) x 76.6(W) x 15(H)mm |
| Material | Acrylic |
MIFARE DESFire is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Specifications subject to change without notice for further modification.
Specification
IP Rating
IP54
Power Voltage
DC 5V / 12V / 24V±10%, DC 7V~32V(Optional)
DIMESIONS(LXWXD)MM
118x75x17
Output Format/ Interface
Wiegand / ABA / UART / RS-232 / RS-485 / USB
