Product
Features
- Multi RFID reader & writer
- Support 125KHz & 13.56MHz UID
- Support Bluetooth function. (Optional)
- 13.56MHz Writer
- Surface mount, waterproof
- Device Driver Operating System Support:
*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10
*Mac OS 8/9, OS X
*Linux/Android
*Windows 11(Optional)
Specifications
| MODEL NO. | PUA-310V1-0N | PUA-310V1-0H | PUA-310V1-0M0 | PUA-310V1-0G | PUA-310V1-0NM0 |
| FREQUENCY | 125KHz ASK | 125KHz FSK | 13.56MHz | 13.56MHz | 125KHz & 13.56MHz |
| COMPATIBILITY | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | H.I.D. | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC(card simulation) | Felica, Mifare, Mifare Ultralight, Mifare DESFire, NFC(card simulation), ISO14443B, ISO15693 | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567, ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC(card simulation) |
| POWER VOLTAGE | DC 5V / 12V / 24V±10%, DC 7V~32V(Optional) | ||||
| OUTPUT FORMAT/ INTERFACE |
Wiegand / ABA / UART / RS-232 / RS-485 / USB | ||||
| DEVICE DRIVER OPERATING SYSTEM SUPPORT |
*Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10 *Mac OS 8/9, OS X *Linux/Android *Windows 11(Optional) |
||||
| IP RATING | IP54 | ||||
| DIMENSIONS(LXWXD)MM | 118x75x17 | ||||

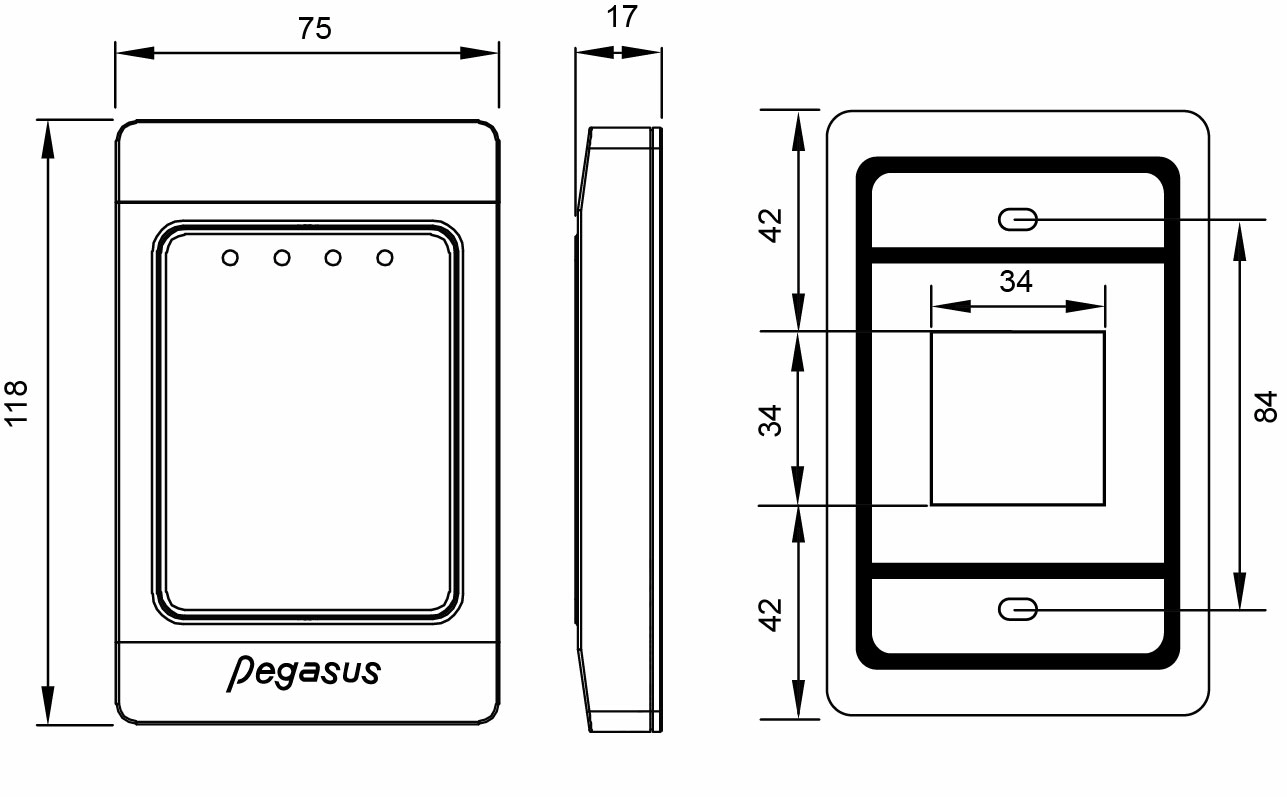

Dimension: Unit(mm)
Application field
 |
 |
 |
 |
| Charging station | HMI、PLC | Production control | Vehicle rental system |
 |
 |
 |
| Kiosk/POS System | Membership System | Library automation |
Ordering information
Accessories
| Feature | Avoid intervention |
|---|---|
| Model No. | R-21-310-3N(White) / R-21-310-3B(Black) |
| Dimension | 119.6(L) x 76.6(W) x 15(H)mm |
| Material | Acrylic |
MIFARE DESFire is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Specifications subject to change without notice for further modification.
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
