Model：PZ-810-2

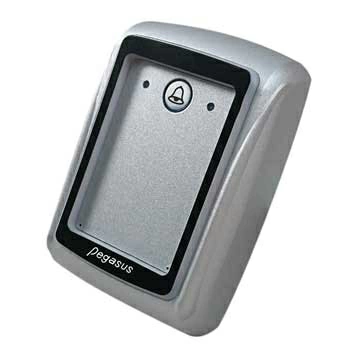

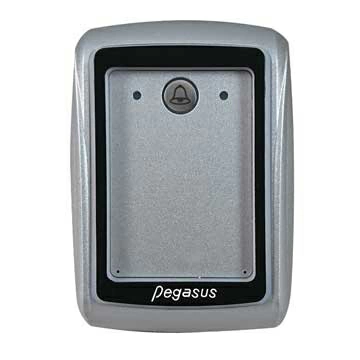

Metal Case Contactless Card Reader(TCP/ IP Embedded)
Compare
Product
Introduction
- Easily interfaced with access controller for management of access control, time attendance & lift access control systems.
- LED indicators show power and operation status.
- Built-in buzzer for sound notification.
- Provides tamper switch.
- Supports Multi-frequency (EM, Mifare ISO15693 /ISO14443A/B, Felica ISO18092, NFC Tag)reader. (by optional)
- With CPU watch-dog function to prevent malfunction.

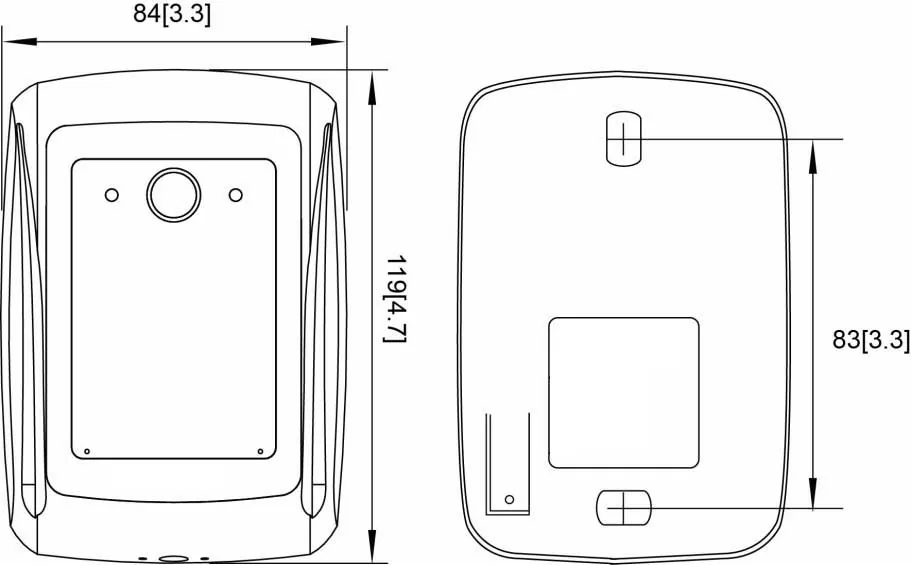

Dimension: Unit: mm[inch]

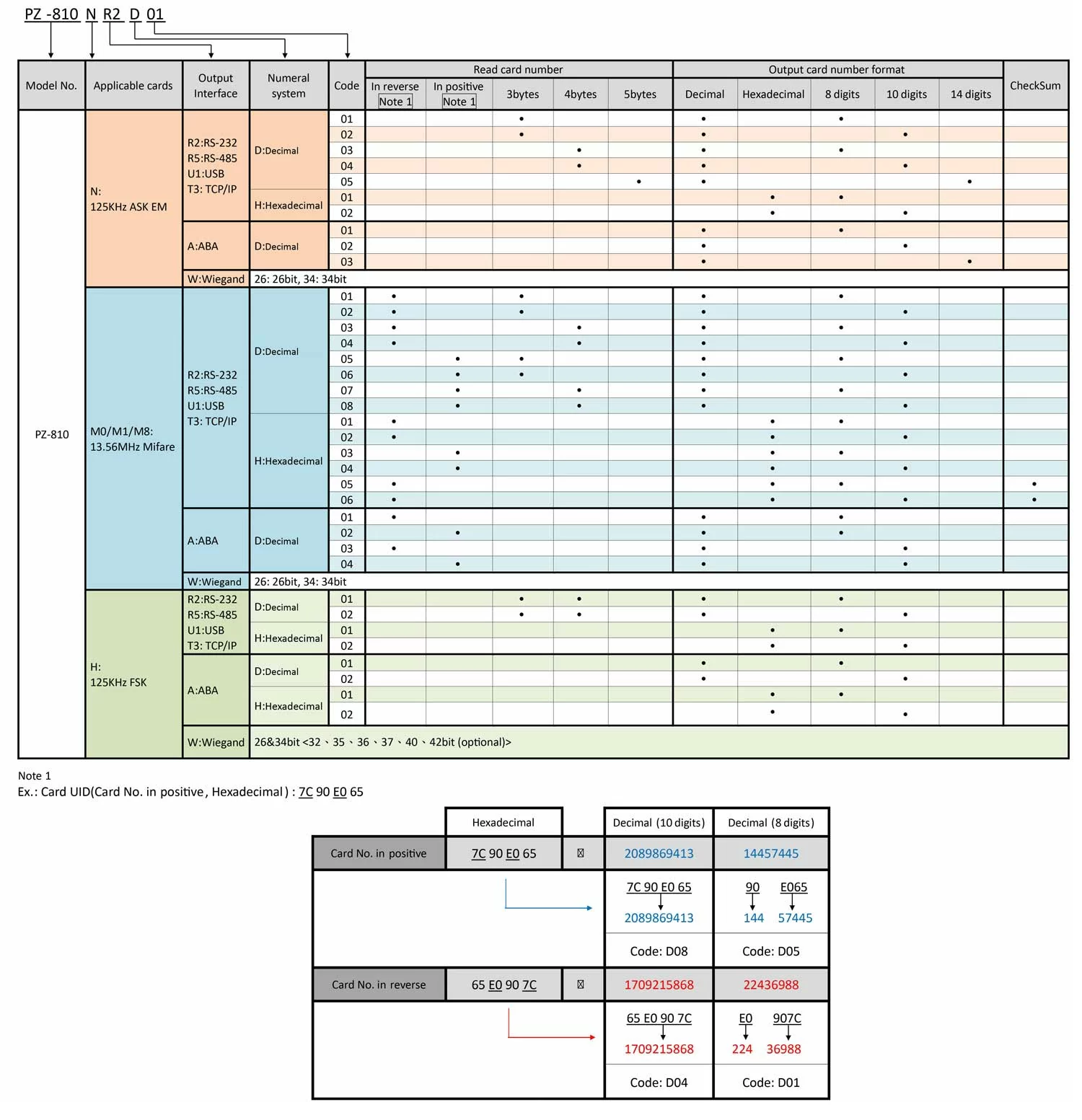

Ordering information
| PZ-810NT3D05 | 125KHz EM Card Reader, TCP/IP, Read card number:5 bytes,Decimal,14 digits |
|---|---|
| PZ-810M0T3H01 | 13.56MHz Mifare Card Reader, TCP/IP, Hexadecimal, 8 digits |
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Specifications subject to change without notice for further modification.
Specification
Operating temperature
-10°C ~ 75°C
Reading range
Max.3.5 cm
Frequency
125 KHz / 13.56MHz
Applicable cards
125KHz: EM4100, EM4102, EM4200, TK4100, EM4305, ATA5577, T5567, Temic5557 13.56MHz: Mifare 1 S50, NTAG203, NTAG213, NTAG215, NTAG216, FM11RF08, IS23SC4439, GT23SC4439, Mifare 1 S70, GT23SC4469 4K, FM11RF32, Mifare Ultralight , Mifare plus S 2K/4K, Mifare DESFire EV1 8K, Mifare DESFire EV2, SRT512, SRIX4K, ICODE SLI, ICODE-2, Tag-it HF-I standard, Tag-it HF-I Pro, Tag-it HF-I Plus, TI256, LEGIC, RC-S962(FeliCa), RC-S966(FeliCa Lite-S), NFC Tag, LRI2K
Dimension
119 (L) x 84(W) x 32(H) mm
Interface
TCP/IP
Power supply
12VDC±10%
Mounting
Surface mount
Waterproof
YES
