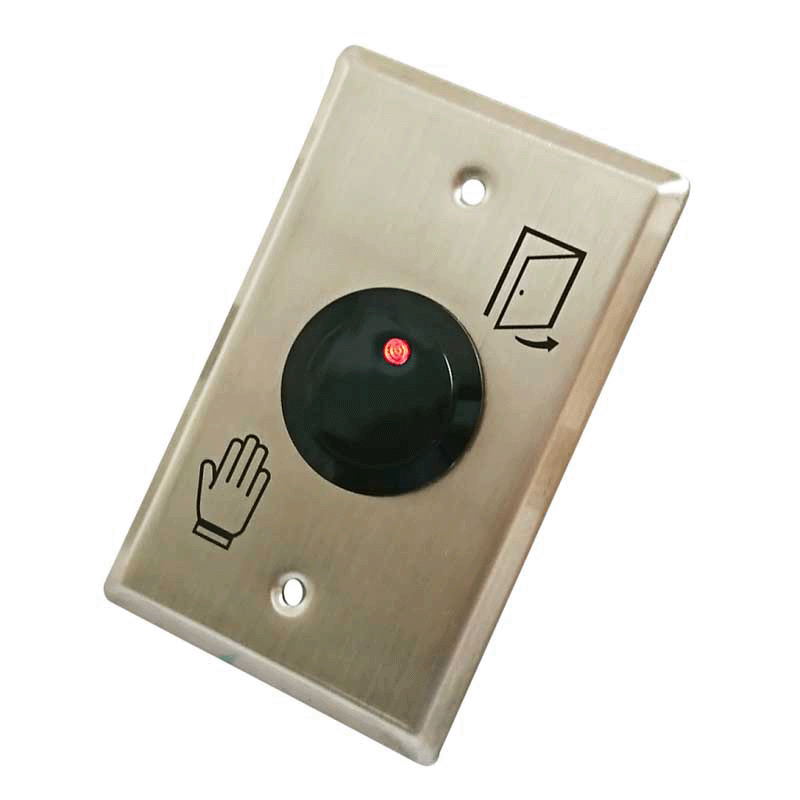

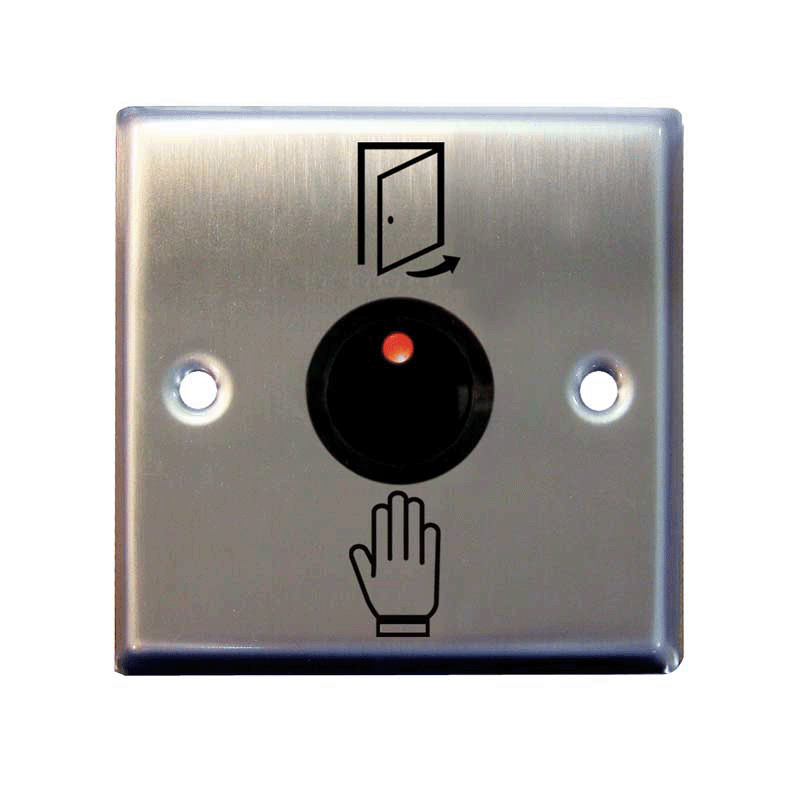

Model：PBT-286IRAV / PBT-211IRBV

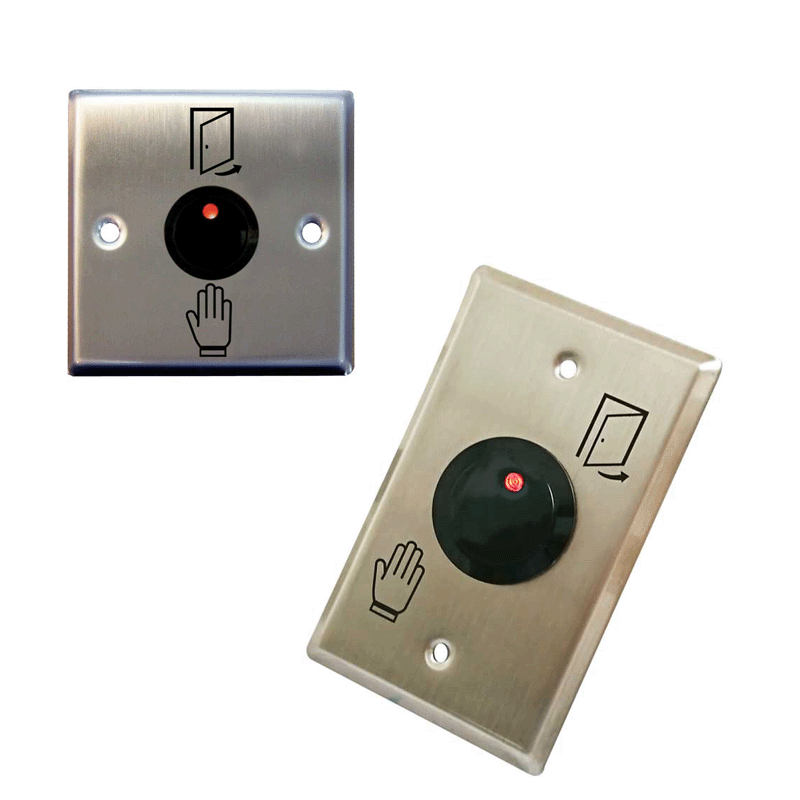

Touchless Infrared Sensor Button, Stainless Steel
Product
Features
- Form C relay output (1A@30VDC)
- Adjustable output time 0.5~20 sec. Trigger / Toggle
- Adjustable sensing range 3~15cm
- Voltage : 10V/24V DC (auto-adjusting)
- The front of the detector is waterproof design.
Specification
| Model No. | PBT-286IRAV | PBT-211IRBV | |
|---|---|---|---|

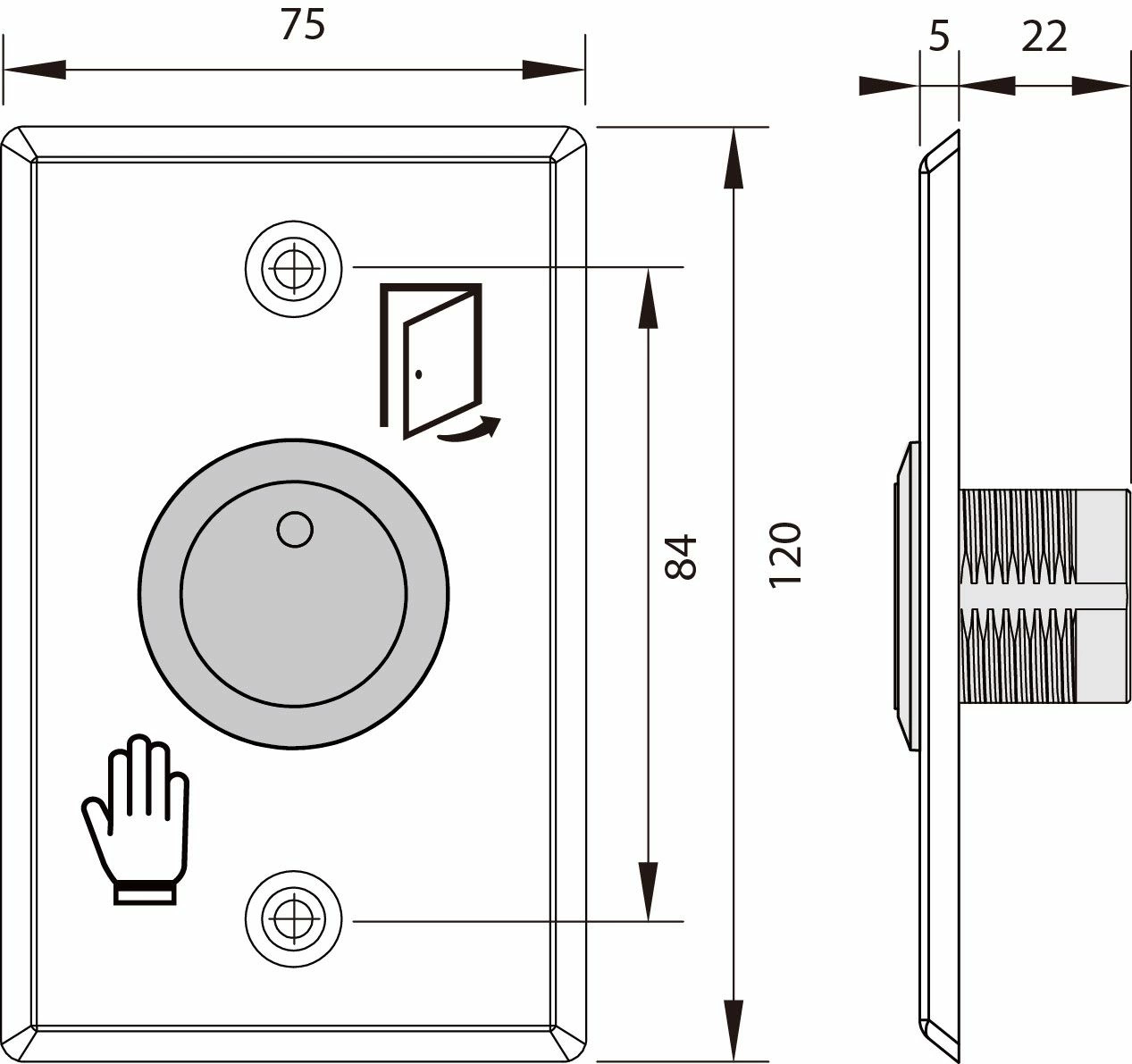

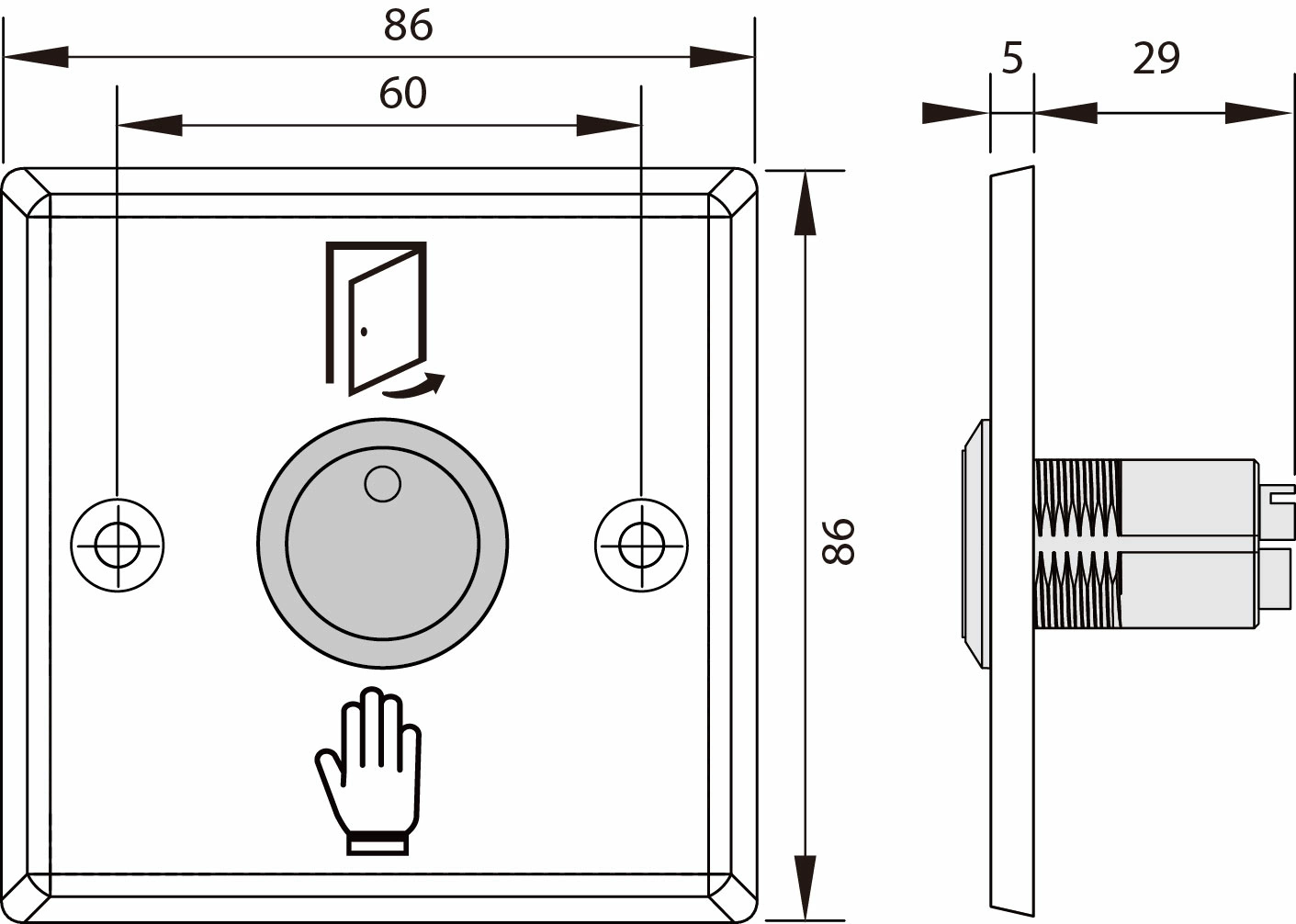

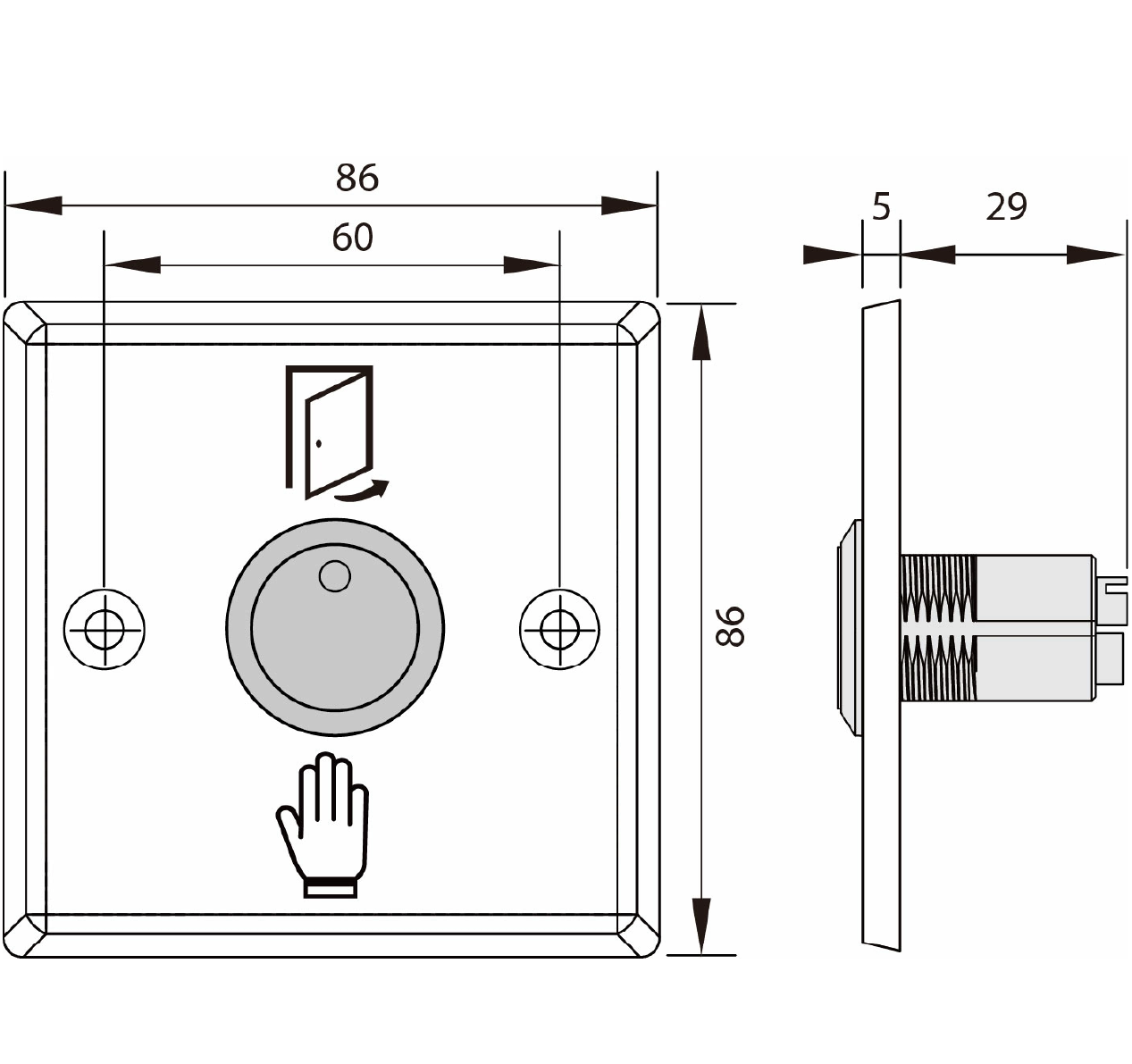

| Dimensions(mm) |  |
 |
|
| Voltage / Current | DC10V (47mA)~24V(28mA) | DC10V (42mA)~24V(26mA) | |
| Relay type | Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC | Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@60VDC, 0.5A@125VAC | |
| Output time | 0.5~20 sec, Trigger / Toggle | ||
| Sensor Range | 3~15cm | ||
| LED Status indicator | Power on: Red, Proximity: Blue (Optional Blue/Green) | ||
| Case material | IR Sensor | UV & Fire Polycarbonate | |
| Face plate | Stainless Steel | ||
| IP Rating | IP65 (IR Sensor) | ||
| Operating life | Relay: 100,000 cycles | ||
How to assembly
Example Applications
| Elevator Buttons | Parking Lot Ticket Machine | Water Dispensers |
 |
 |
 |
| Ticket Machine | Device Switch | Hospital Door/Operating Room Automation control |
 |
 |
 |
| Anti-theft Detection | Automatic Location Detection | Gate/Door/Exit Automation control |
 |
 |
 |
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PBT-286IRAV ; PBT-211IRBV
Voltage / Current
DC10V (47mA)~24V(28mA) ; DC10V (42mA)~24V(26mA)
Relay type
Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC ; Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@60VDC, 0.5A@125VAC
Output time
0.5~20 sec, Trigger / Toggle
Sensor Range
3~15cm
LED Status indicator
Power on: Red, Proximity: Blue (Optional Blue/Green)
Material
IR Sensor：UV & Fire Polycarbonate ; Face plate：Stainless Steel
IP Rating
IP65 (IR Sensor)
Operating life
Relay: 100,000 cycles
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
