Model：PBT-186IRC

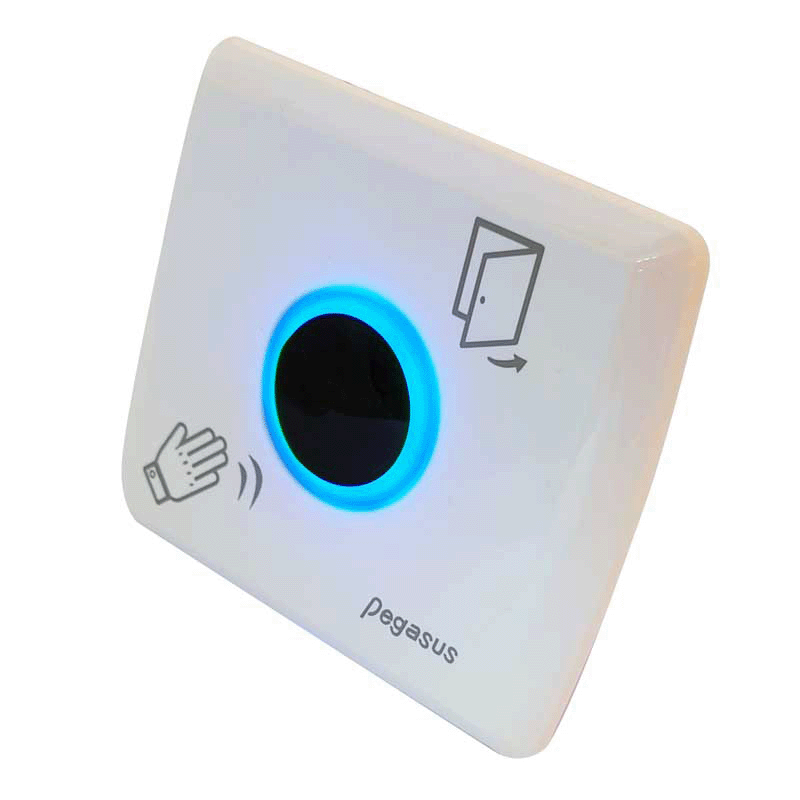

Flush-Mount Touchless Infrared Sensor Button
Compare
Product
Features
- Form C relay output (1A@30VDC)
- Adjustable output time 1~15 sec. Trigger / Toggle
- Adjustable sensing range 1.5~10cm
- Voltage : 10V/24V DC/AC (auto-adjusting)
Specification
| Model No. | PBT-186IRC | ||
|---|---|---|---|
| Dimensions(mm) |  |
||
| Voltage / Current | DC10V (145mA)~24V(65mA) AC10V(177mA)~24V(110mA) |
||
| Relay type | Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC | ||
| Output time | 1~15 sec, Trigger / Toggle | ||
| Sensor Range | 1.5~10cm | ||
| LED Status indicator | Power on: Blue, Proximity: Green | ||
| Case material | IR Sensor | UV & Fire Polycarbonate | |
| Face plate | ABS | ||
| IP Rating | --- | ||
| Operating life | Relay: 100,000 cycles | ||

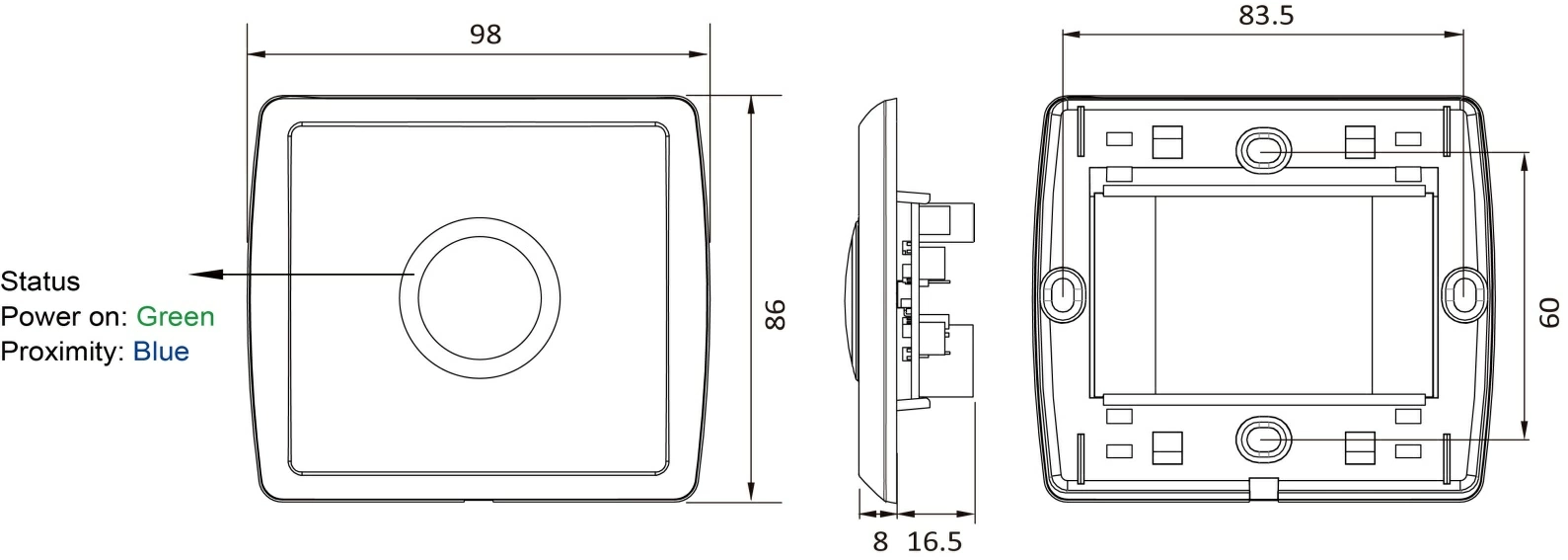

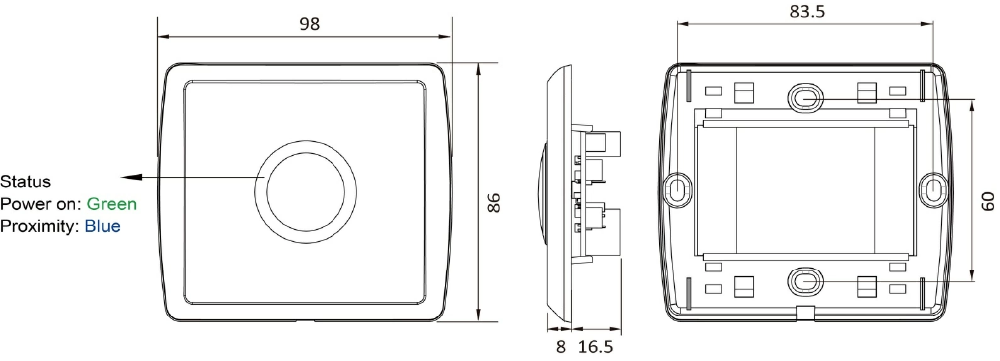

Dimension: mm
How to assembly

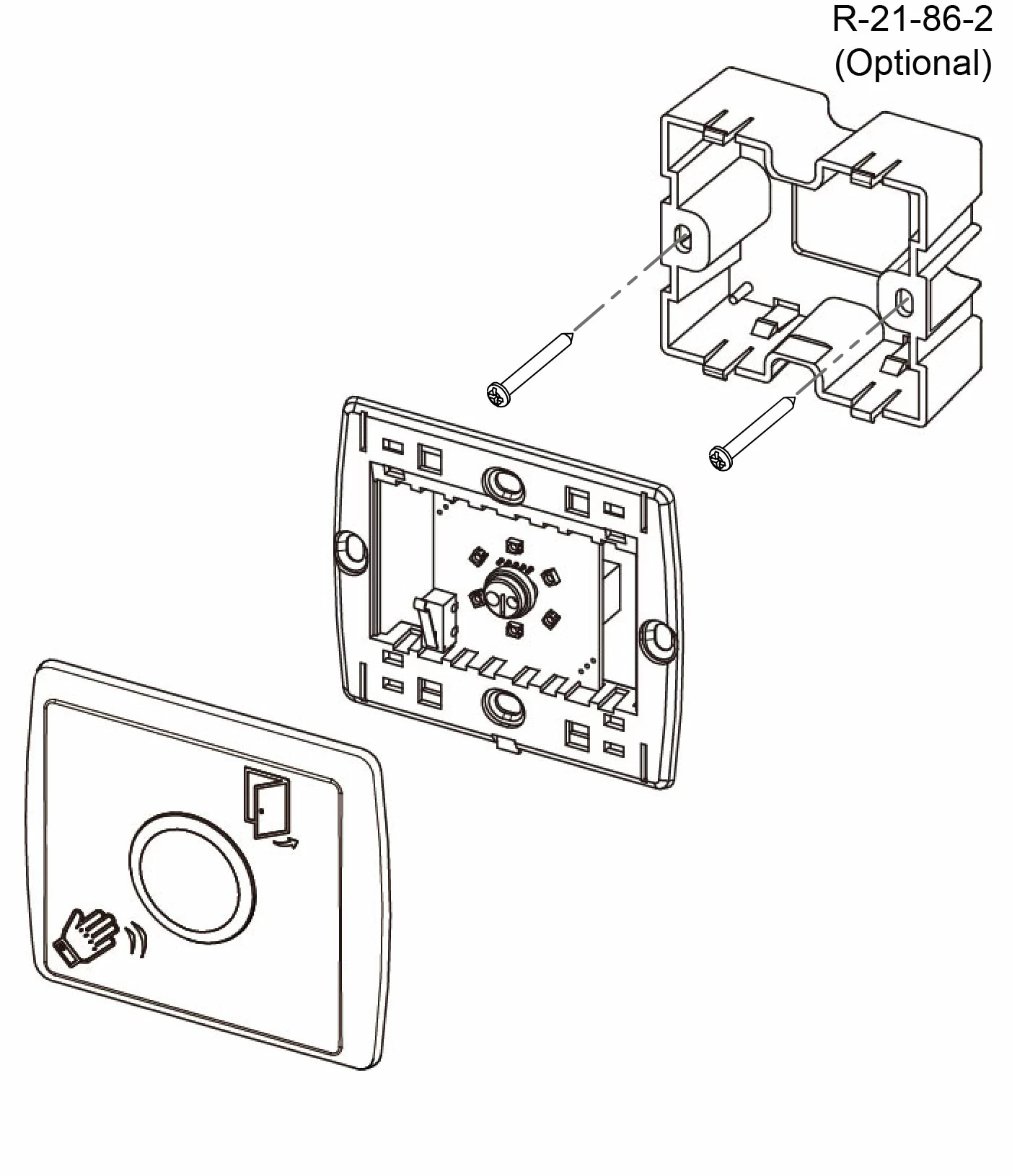

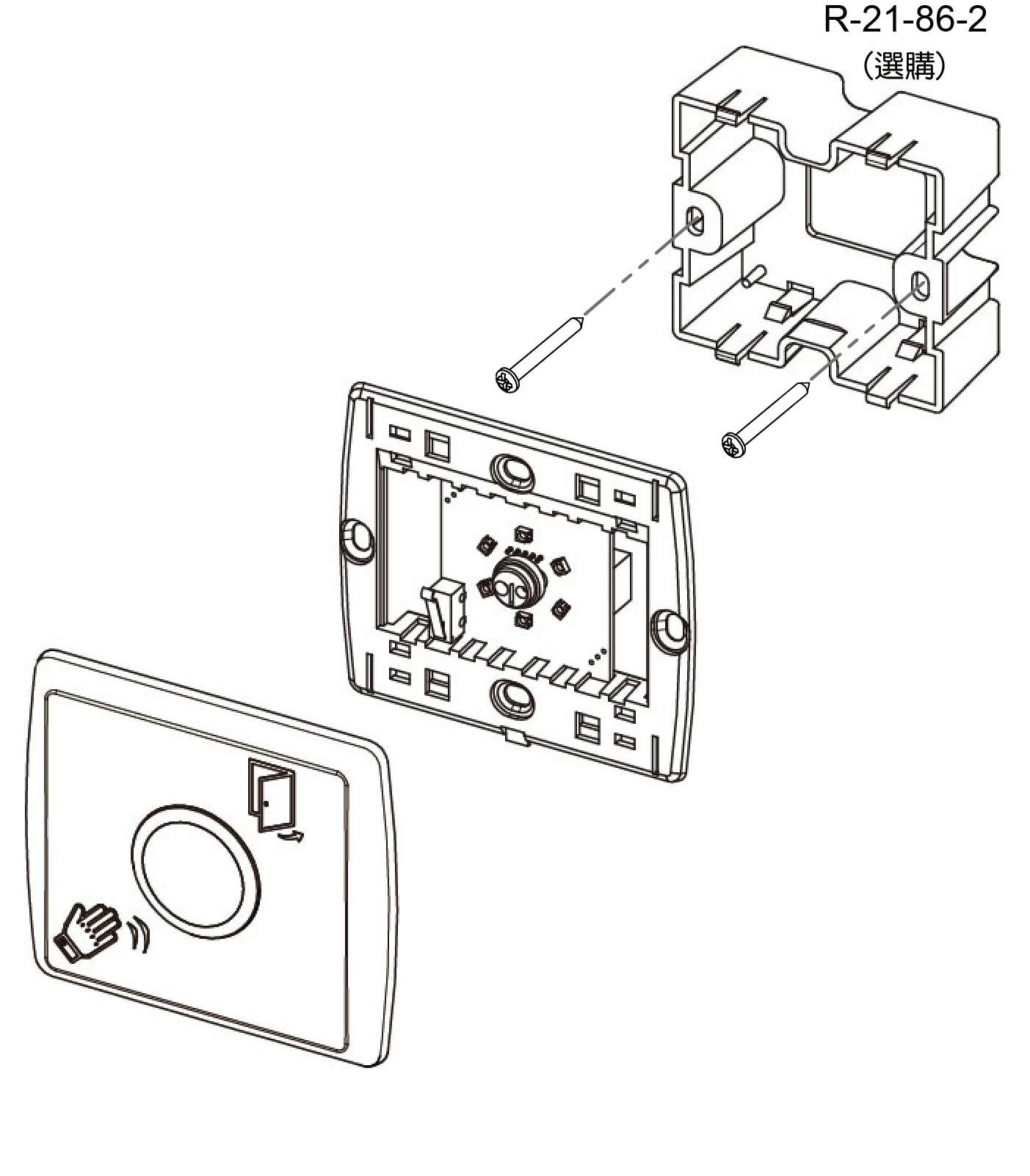

Mounting box for EU standard

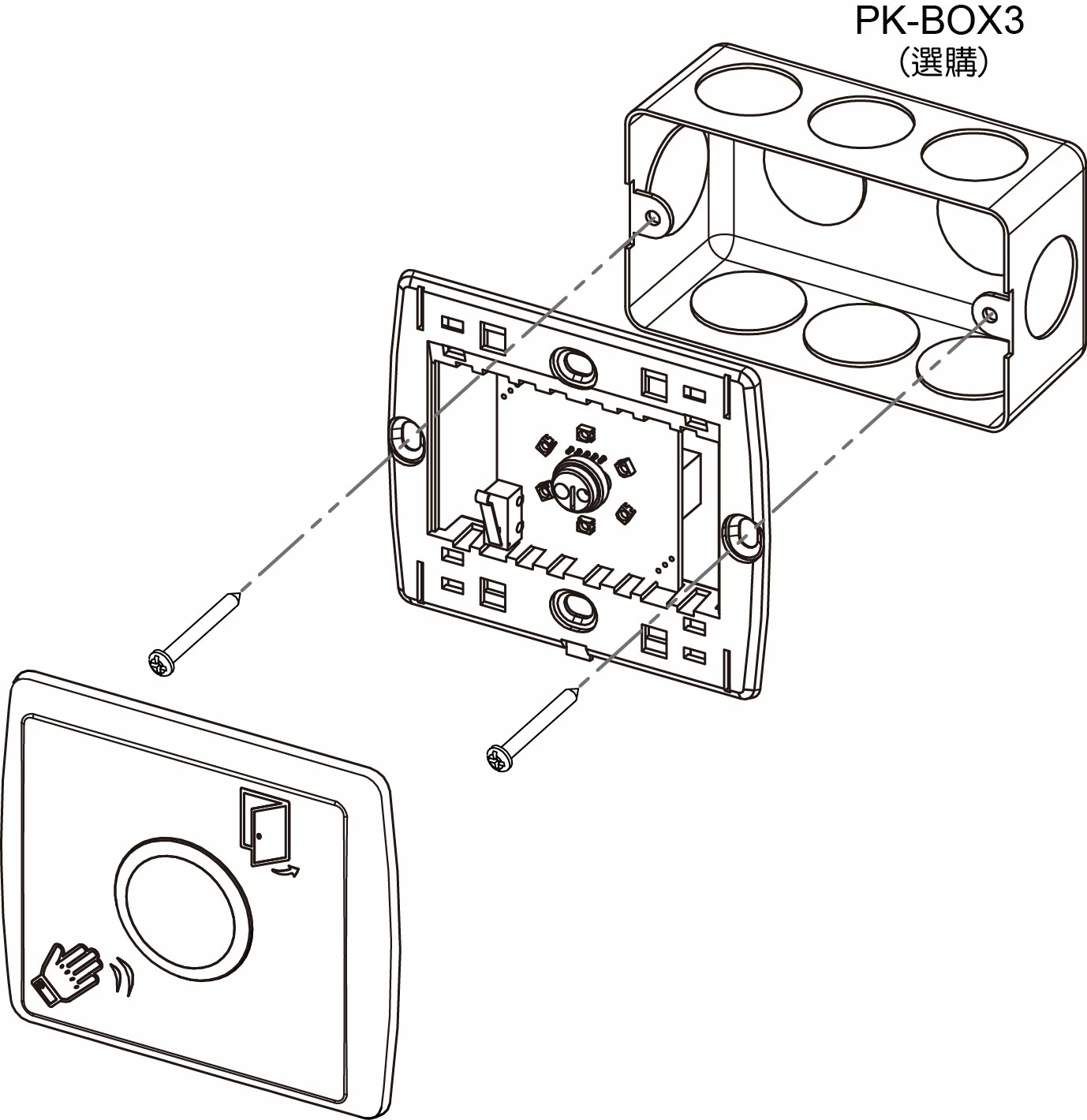

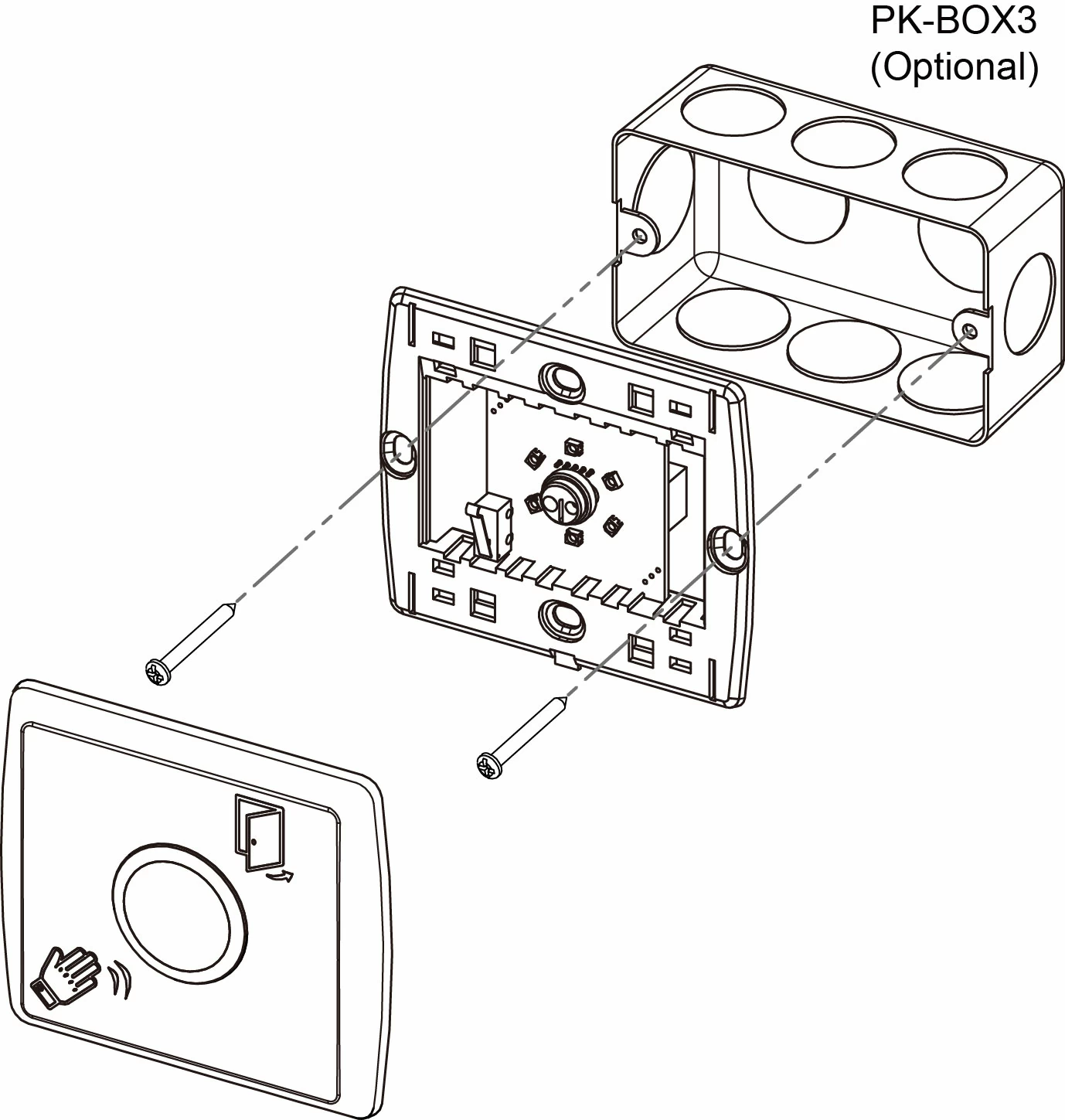

Mounting box for US standard
Example Applications
| Elevator Buttons | Parking Lot Ticket Machine | Water Dispensers |
 |
 |
 |
| Ticket Machine | Device Switch | Hospital Door/Operating Room Automation control |
 |
 |
 |
| Anti-theft Detection | Automatic Location Detection | Gate/Door/Exit Automation control |
 |
 |
 |
We reserve the right to change the specification without prior notice or obligation!
Specification
IP Rating
---
Model No.
PBT-186IRC
Voltage / Current
DC10V (145mA)~24V(65mA) AC10V(177mA)~24V(110mA)
Relay type
Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC
Output time
1~15 sec, Trigger / Toggle
LED Status indicator
Power on: Blue, Proximity: Green
Operating life
Relay: 100,000 cycles
SENSOR RANGE
1.5~10cm
Face plate
ABS
