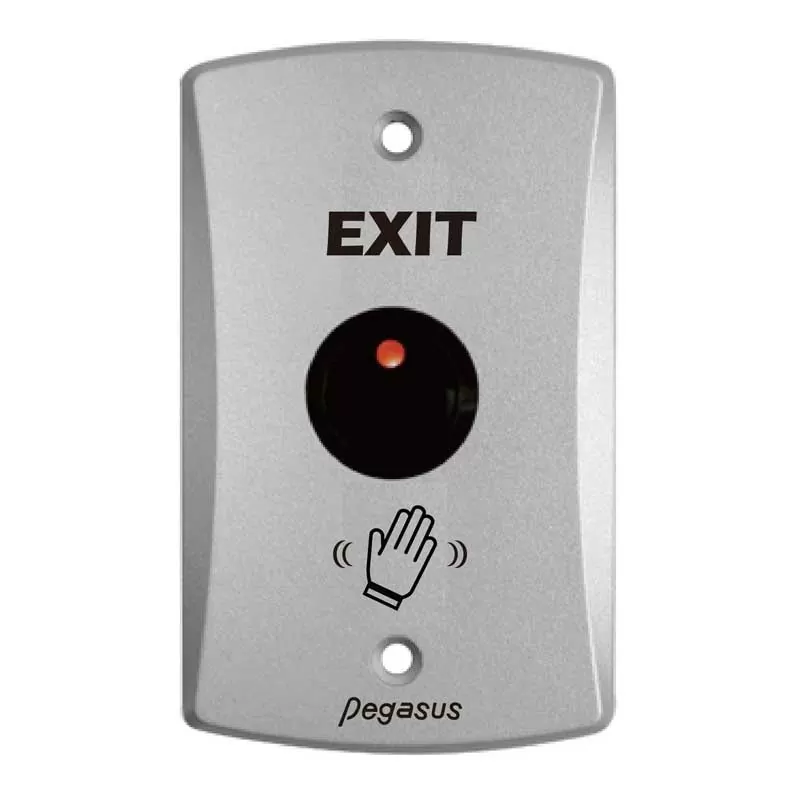

Model：PBT-09IRAV
Touchless Infrared Sensor Button
Product
Features
- Form C relay output (1A@30VDC)
- PBT-07IRAV, PBT-09IRAV, PBT-09IRAC: Adjustable output time 0.5~20 sec. Trigger / Toggle
PBT-09IRAE : Adjustable output time 1~12 sec. - PBT-07IRAV, PBT-09IRAV, PBT-09IRAC : Adjustable sensing range 3~15cm
PBT-09IRAE : Adjustable sensing range 4~15cm - PBT-07IRAV, PBT-09IRAV, PBT-09IRAE:Voltage : 10V/24V DC (auto-adjusting)
PBT-09IRAC : Voltage : 10V/24V DC/AC (auto-adjusting) - The front of the detector is waterproof design.
Specification
| Model No. | PBT-09IRAV | |
|---|---|---|

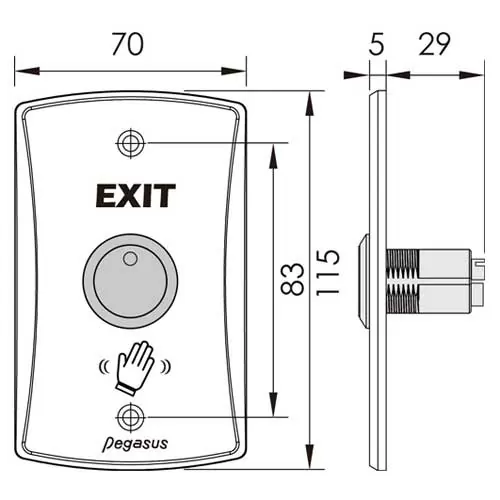

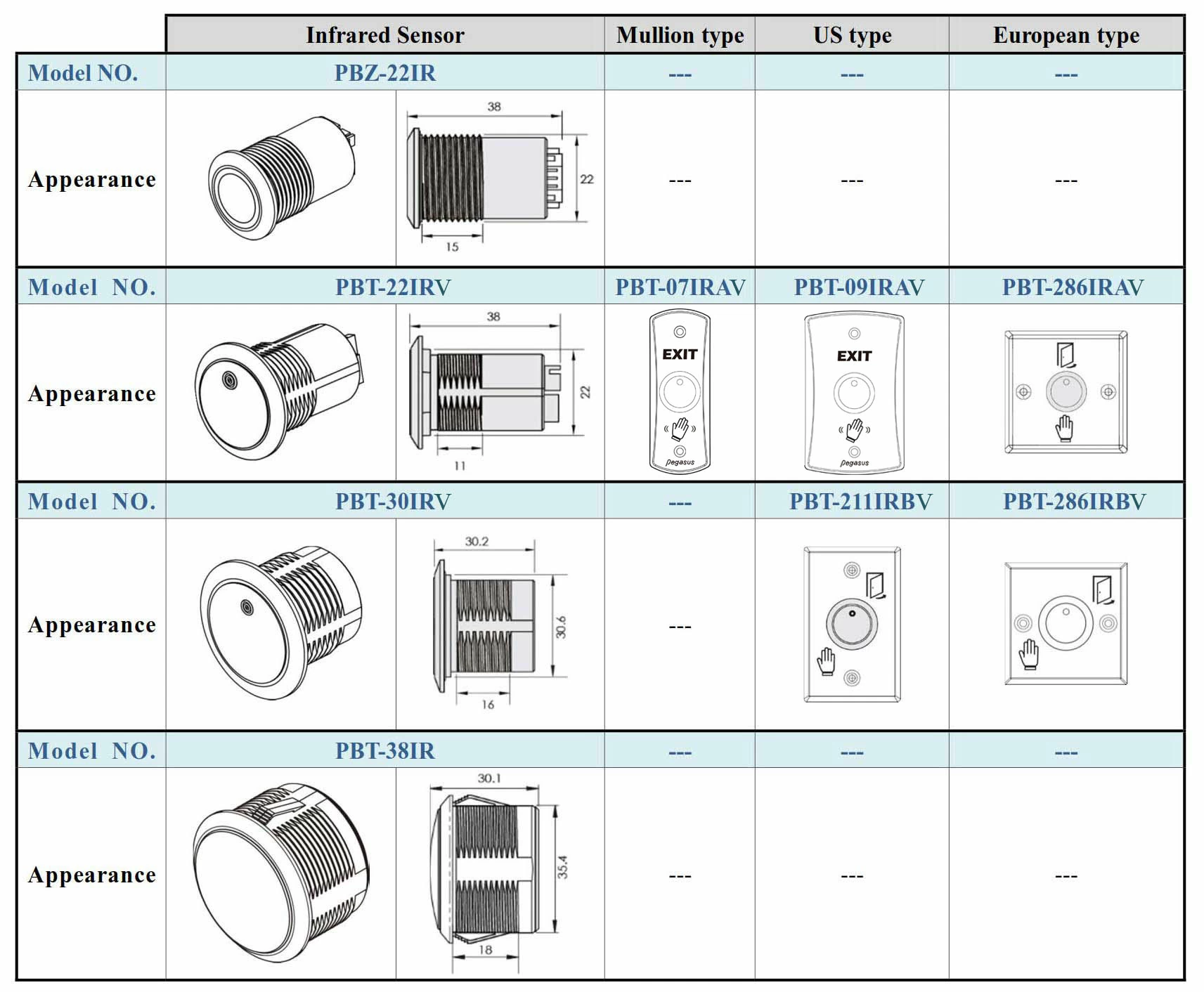

| Dimension(mm) |  |
|
| Voltage / Current | DC10V (47mA)~24V(28mA) | |
| Relay type | Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC | |
| Output time | 0.5~20 sec. Trigger / Toggle | |
| Sensor Range | 3~15cm | |
| LED Status indicator | Power on: Red, Proximity: Blue (Optional: Blue/Green) | |
| Case material | IR Sensor | UV & Fire Polycarbonate |
| Face plate | Zinc alloy | |
| IP Rating | IP65 (IR Sensor) | |
| Operating life | Relay: 100,000 cycles | |
Example Applications
| Elevator Buttons | Parking Lot Ticket Machine | Water Dispensers |
 |
 |
 |

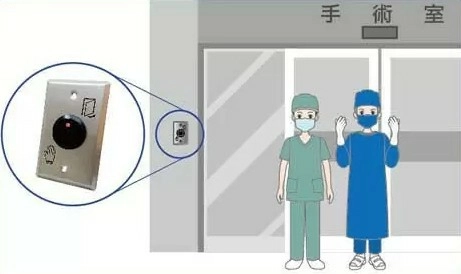

| Ticket Machine | Device Switch | Hospital Door/Operating Room Automation control |
 |
 |
 |

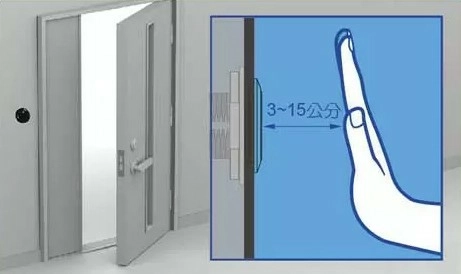

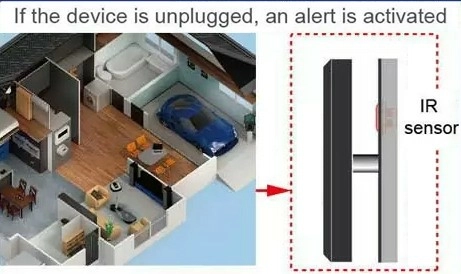

| Anti-theft Detection | Automatic Location Detection | Gate/Door/Exit Automation control |
 |
 |
 |
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PBT-09IRAE ; PBT-09IRAC
Voltage / Current
DC10V (47mA)~24V(28mA)
Relay type
Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC
Output time
0.5~20 sec. Trigger / Toggle
Sensor Range
3~15cm
LED Status indicator
Power on: Red, Proximity: Blue (Optional: Blue/Green)
IP Rating
IP65 (IR Sensor)
Operating life
Relay: 100,000 cycles
