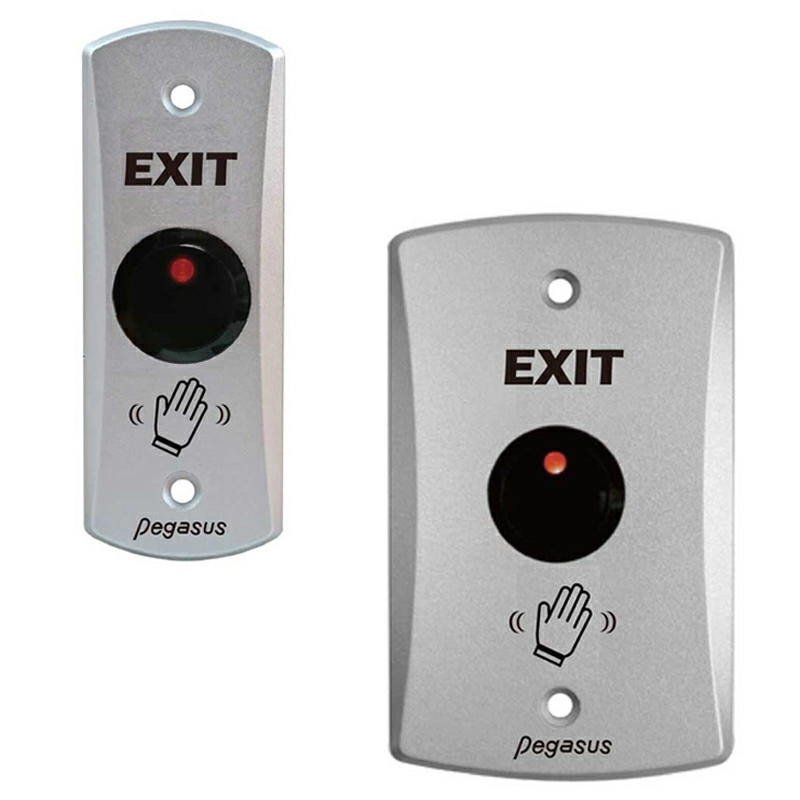

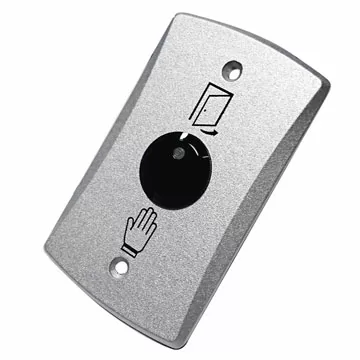

Model：PBT-07IRAV / PBT-09IRAV
Touchless Infrared Sensor Button
Product
Features
- Form C relay output (1A@30VDC)
- PBT-07IRAV, PBT-09IRAV, PBT-09IRAC: Adjustable output time 0.5~20 sec. Trigger / Toggle
PBT-09IRAE : Adjustable output time 1~12 sec. - PBT-07IRAV, PBT-09IRAV, PBT-09IRAC : Adjustable sensing range 3~15cm
PBT-09IRAE : Adjustable sensing range 4~15cm - PBT-07IRAV, PBT-09IRAV, PBT-09IRAE:Voltage : 10V/24V DC (auto-adjusting)
PBT-09IRAC : Voltage : 10V/24V DC/AC (auto-adjusting) - The front of the detector is waterproof design.
Specification
| Model No. | PBT-07IRAV | PBT-09IRAV | PBT-09IRAE | PBT-09IRAC | |
|---|---|---|---|---|---|
| Dimension(mm) |  |
 |
|||
| Voltage / Current | DC10V (47mA)~24V(28mA) | DC10V (47mA)~24V(28mA) | DC10V (55mA)~24V(34mA) | DC10V (45mA)~24V(26mA) AC10V (74mA)~24V(51mA) |
|
| Relay type | Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC | ||||
| Output time | 0.5~20 sec. Trigger / Toggle | 0.5~20 sec. Trigger / Toggle | 1~12 sec. | 0.5~20 sec. Trigger / Toggle | |
| Sensor Range | 3~15cm | 3~15cm | 4~15cm | 3~15cm | |
| LED Status indicator | Power on: Red, Proximity: Blue (Optional: Blue/Green) | ||||
| Case material | IR Sensor | UV & Fire Polycarbonate | |||
| Face plate | Zinc alloy | ||||
| IP Rating | IP65 (IR Sensor) | ||||
| Operating life | Relay: 100,000 cycles | ||||
Example Applications
| Elevator Buttons | Parking Lot Ticket Machine | Water Dispensers |
 |
 |
 |
| Ticket Machine | Device Switch | Hospital Door/Operating Room Automation control |
 |
 |
 |
| Anti-theft Detection | Automatic Location Detection | Gate/Door/Exit Automation control |
 |
 |
 |
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PBT-07IRAV ; PBT-09IRAV ; PBT-09IRAE ; PBT-09IRAC
Voltage / Current
DC10V (47mA)~24V(28mA) ; DC10V (47mA)~24V(28mA) ; DC10V (55mA)~24V(34mA) ; DC10V (45mA)~24V(26mA) AC10V (74mA)~24V(51mA)
Relay type
Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC
Output time
0.5~20 sec. Trigger / Toggle ; 0.5~20 sec. Trigger / Toggle ; 1~12 sec ; 0.5~20 sec. Trigger / Toggle
Sensor Range
3~15cm ; 3~15cm ; 4~15cm ;3~15cm
LED Status indicator
Power on: Red, Proximity: Blue (Optional: Blue/Green)
IP Rating
IP65 (IR Sensor)
Operating life
Relay: 100,000 cycles
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
