Model：PC-30H

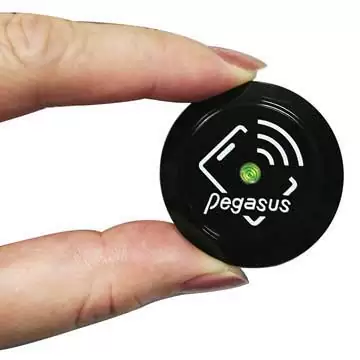

Mini Standalone controller, Installation diameter 31mm
Product
Features
- Flush-Mount mini controller, Compact size, Easy to install
- Support 1000 Cards (Standalone)
- Built-in LED and Buzzer indicator
- Built-in Form A Relay and Adjustable output time 0.5~106 sec.
- Front panel IP54 weatherproof for outdoor use
- Support 125KHz(EM / H.I.D.) & 13.56MHz(Mifare / DESFire / FeliCa / NFC (card simulation))

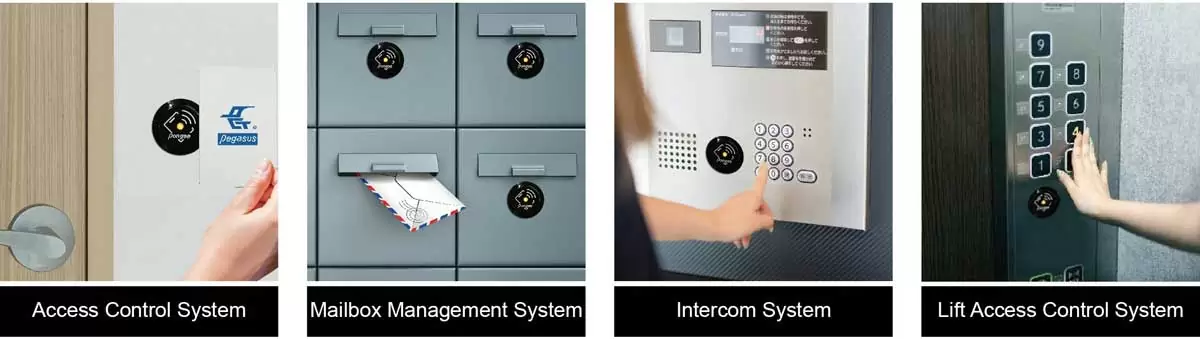

Application field
- Low cost and simple access controller for door, lift, cabinets, drawers, coffer, handle locks, intercom.
- For small area installation.

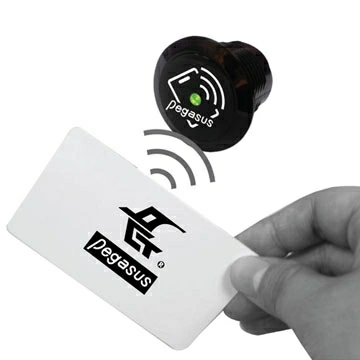

- Any access control application by RFID cards.

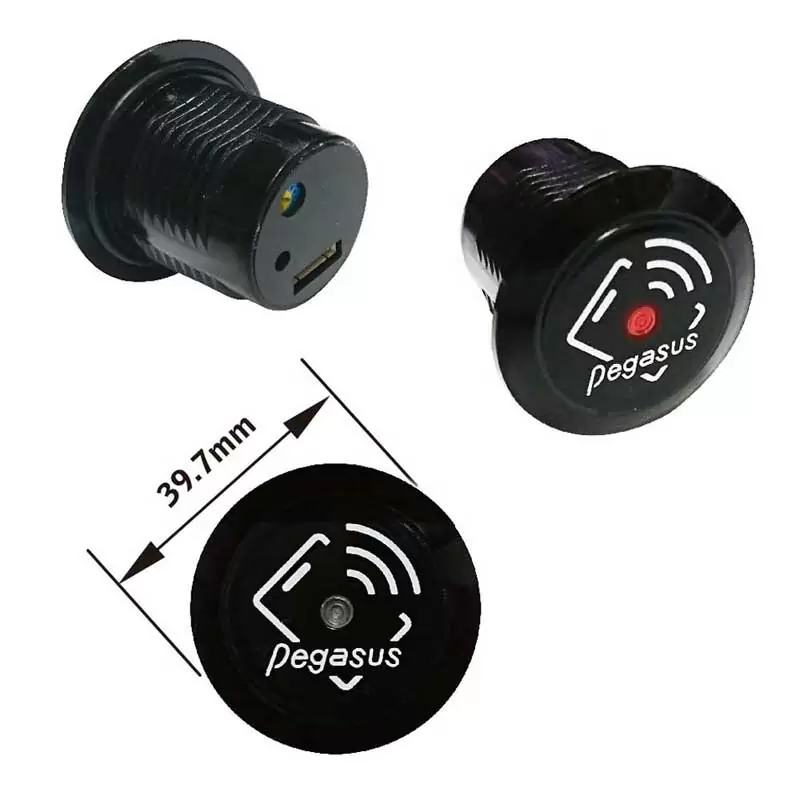

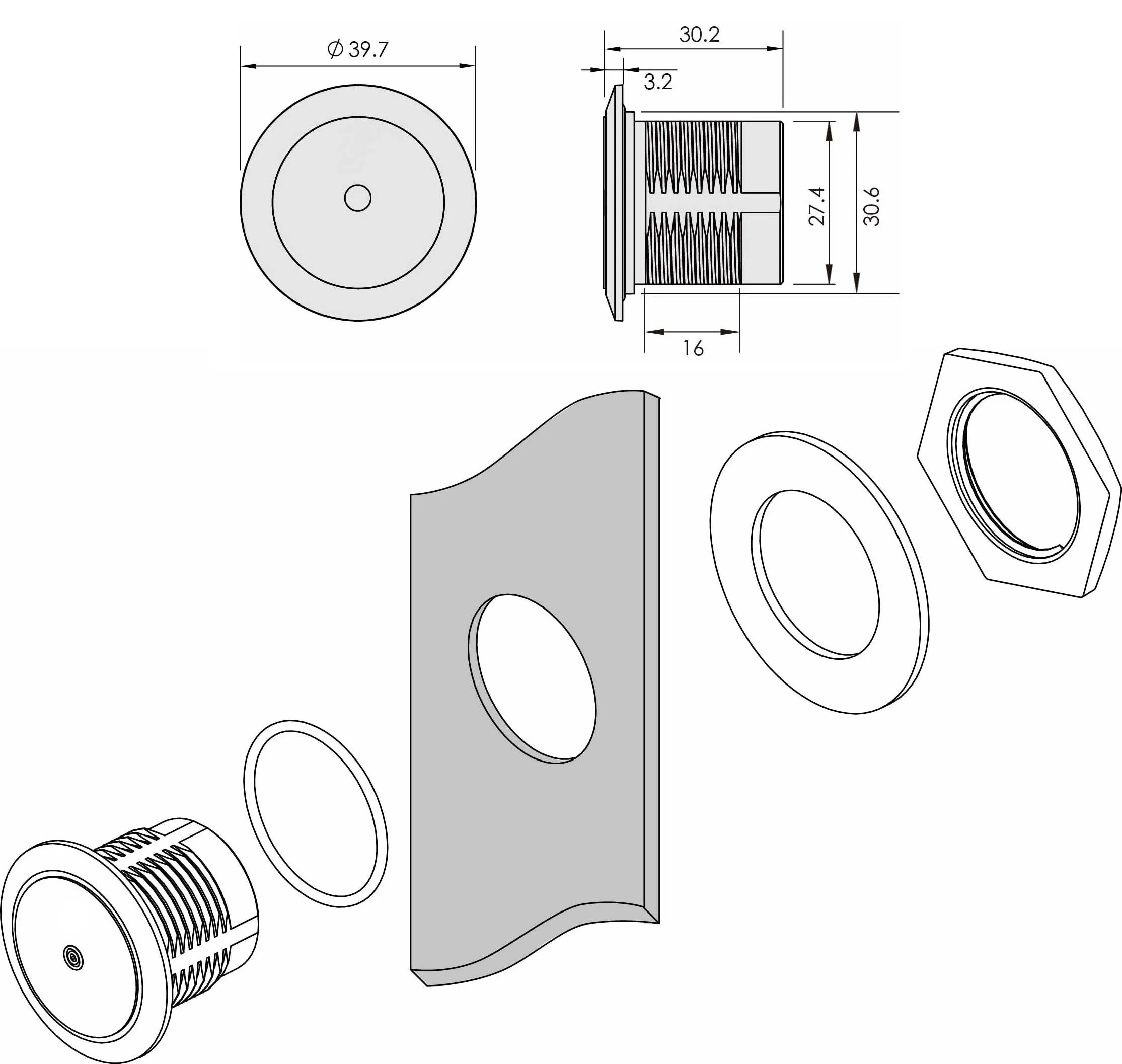

Dimension: mm
Ordering information
| PC-30N | 125KHz ASK EM standalone access controller |
|---|---|
| PC-30H | 125KHz FSK H.I.D. standalone access controller |
| PC-30NH | 125KHz ASK EM & FSK H.I.D. standalone access controller |
| PC-30F | 13.56MHz Multi Mifare & Felica, NFC standalone access controller |
| PC-30M0 | 13.56MHz Multi Mifare, NFC standalone access controller |
* Other customer request specifications are welcomed.
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Specification
Model No
PC-30H
Frequency
125KHz FSK
Compatibility
H.I.D.
User Capacity
1000
Power Voltage
DC 12V
Relay
One (N.O./N.C./COM.)
Material
PC
Dimensions (L x W x D) mm
Φ 39.7
IP Rating
IP54
