Model：PBT-186IRC

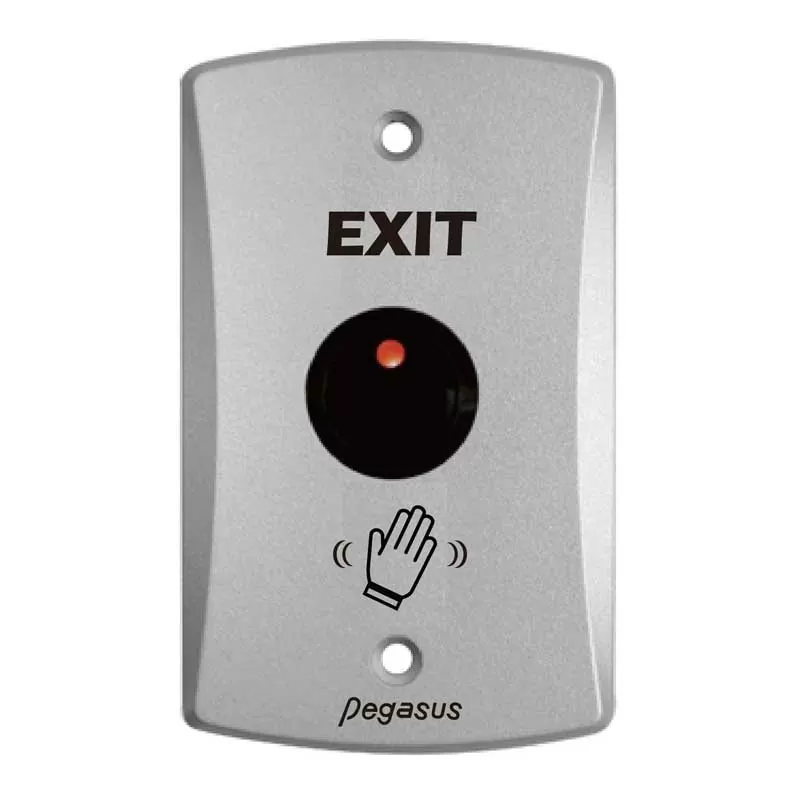

Flush-Mount Touchless Infrared Sensor Button
Product
Features
- Form C relay output (1A@30VDC)
- Adjustable output time 1~15 sec. Trigger / Toggle
- Adjustable sensing range 1.5~10cm
- Voltage : 10V/24V DC/AC (auto-adjusting)
Dimension: mm
How to assembly
Mounting box for EU standard
Mounting box for US standard
Example Applications
| Elevator Buttons | Parking Lot Ticket Machine | Water Dispensers |
 |
 |
 |
| Ticket Machine | Device Switch | Hospital Door/Operating Room Automation control |
 |
 |
 |
| Anti-theft Detection | Automatic Location Detection | Gate/Door/Exit Automation control |
 |
 |
 |
We reserve the right to change the specification without prior notice or obligation!
Specification
Model No
PBT-186IRC
Voltage / Current
DC10V (145mA)~24V(65mA) / AC10V(177mA)~24V(110mA)
Relay type
Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC
Output time
1~15 sec, Trigger / Toggle
Sensor Range
1.5~10cm
LED Status indicator
Power on: Blue, Proximity: Green
IP Rating
---
Operating life
Relay：100,000 cycles
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
