Product
Features
- Easily interfaced with Pongee or other standard access controller for management of access control, time attendance & lift access control systems.
- With bi-color power and status LED indication.
- Built-in buzzer for sound notification.
- Supplies buzzer & LED responding signal.
- Provides tamper switch.
- Card reader with different card formats output thru DIP switch selection.
- Built-in CPU watch dog device to prevent the shot down.
- Ability to read multiple formats.
Specification
| Model No. | PP-810M0WT | ||
|---|---|---|---|
| FREQUENCY |
|
||
| COMPATIBILITY | Mifare S50, Mifare Ultralight , Mifare DESFire, NFC Tag, COMBO Card | ||
| POWER VOLTAGE | DC7V-28V | ||
| OUTPUT FORMAT/ INTERFACE |
Wiegand 26 & 34bits & TTL | ||
| IP RATING | --- | ||
| DIMESIONS(LXWXD)MM | 98x86x8 | ||

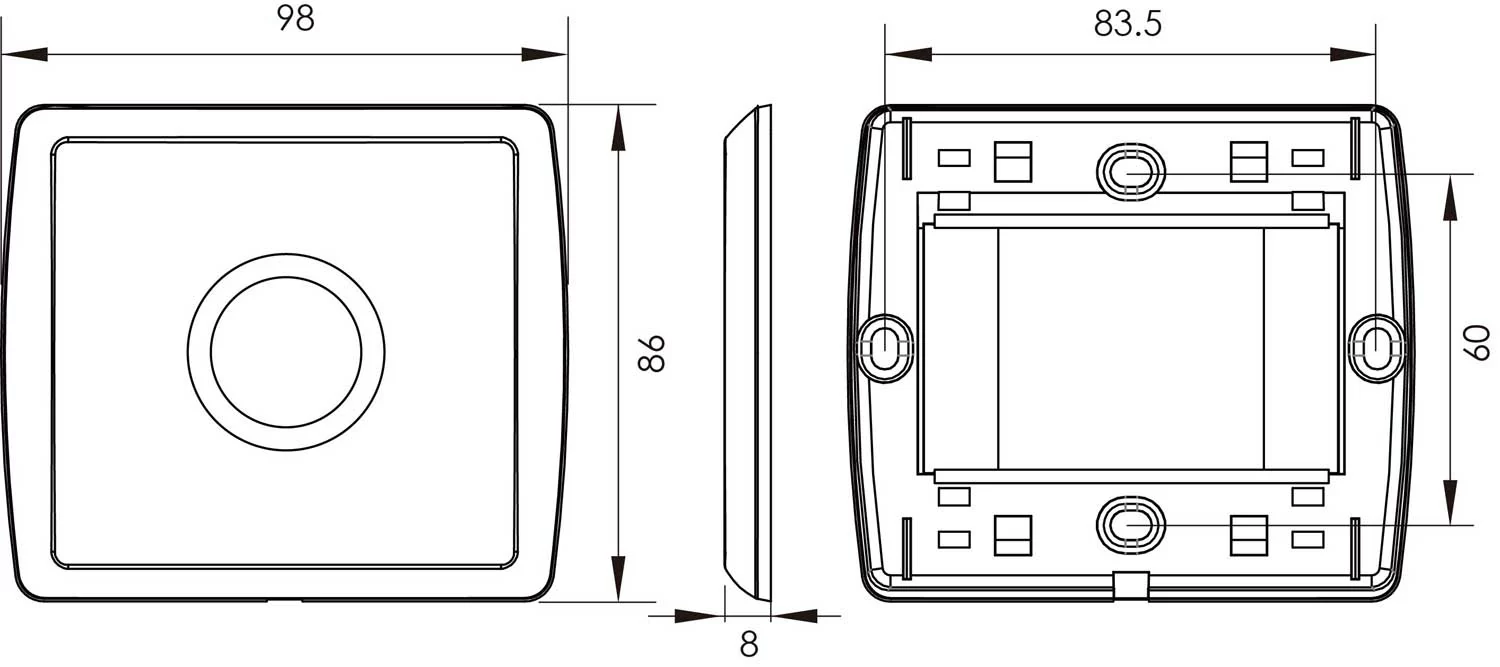

Dimension: Unit:mm
 |
 |
 |
 |
| Charging station | HMI、PLC | Production control | Vehicle rental system |
 |
 |
 |

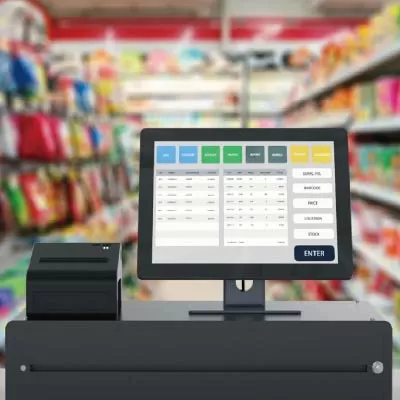

| Kiosk/POS System | Membership System | Library automation |

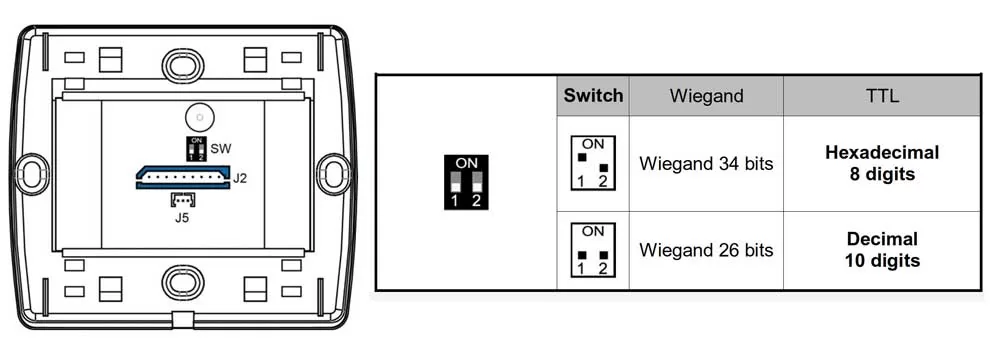

Selectable format output thru Switch setting
How to assembly
|
|

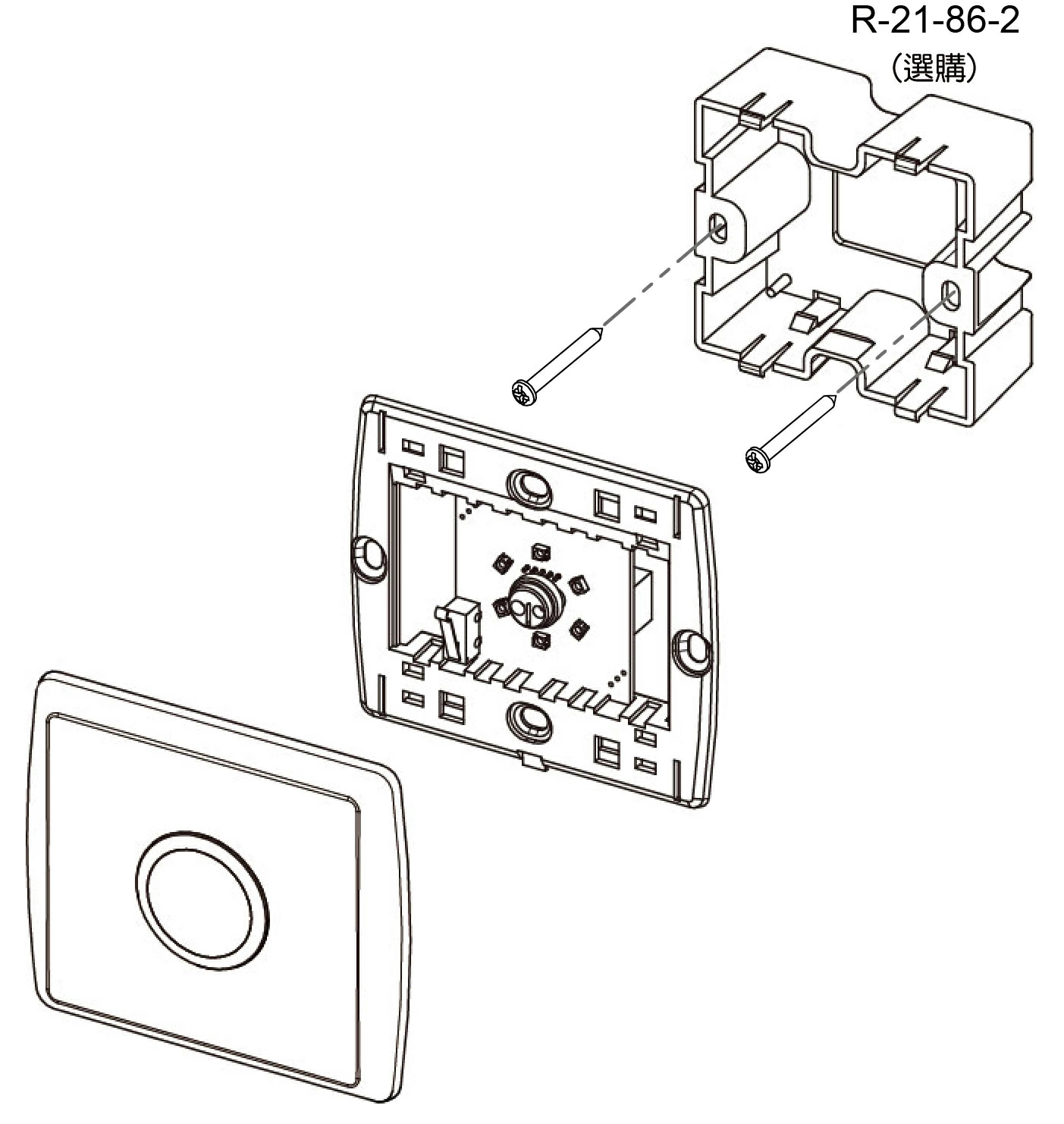

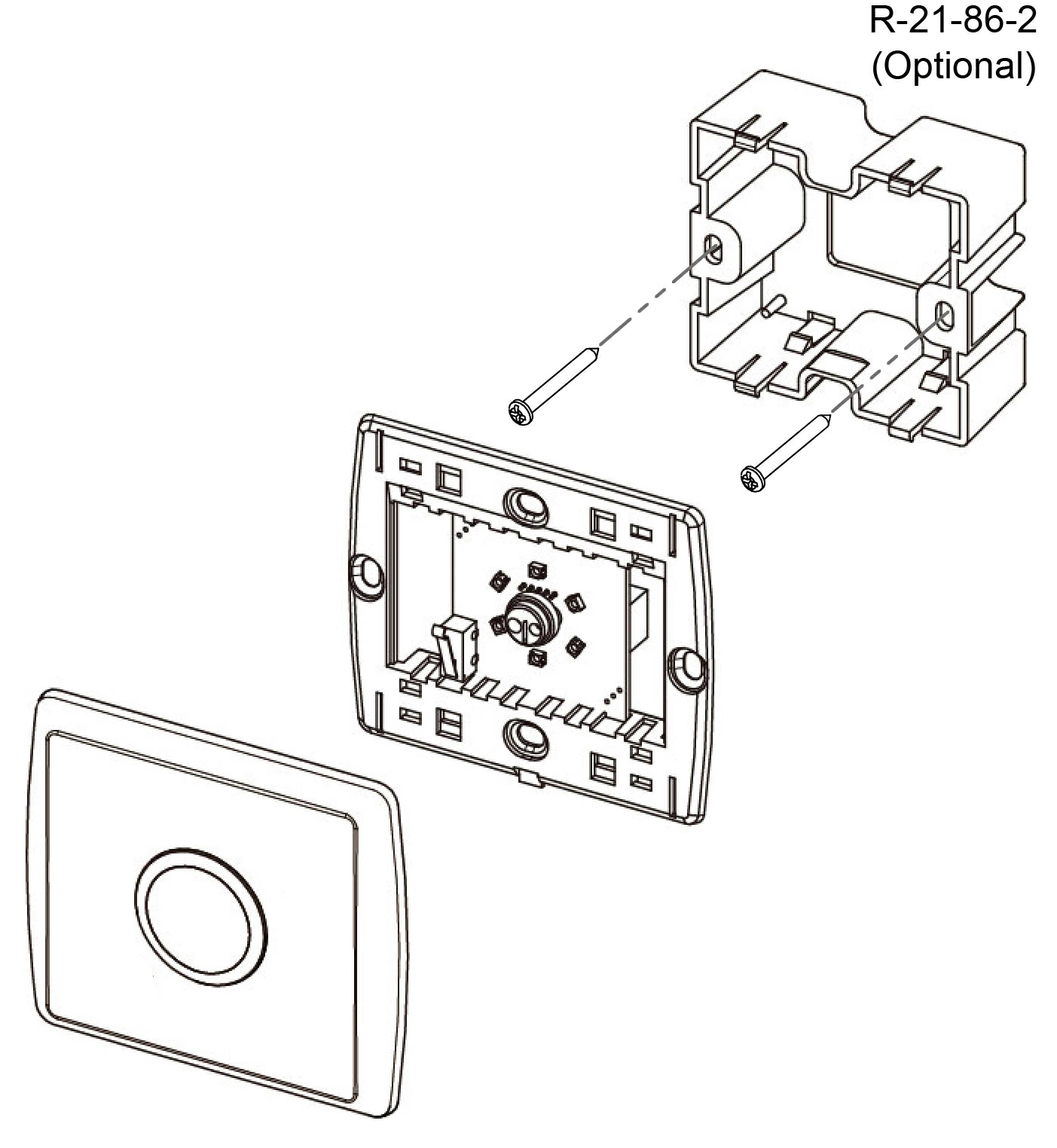

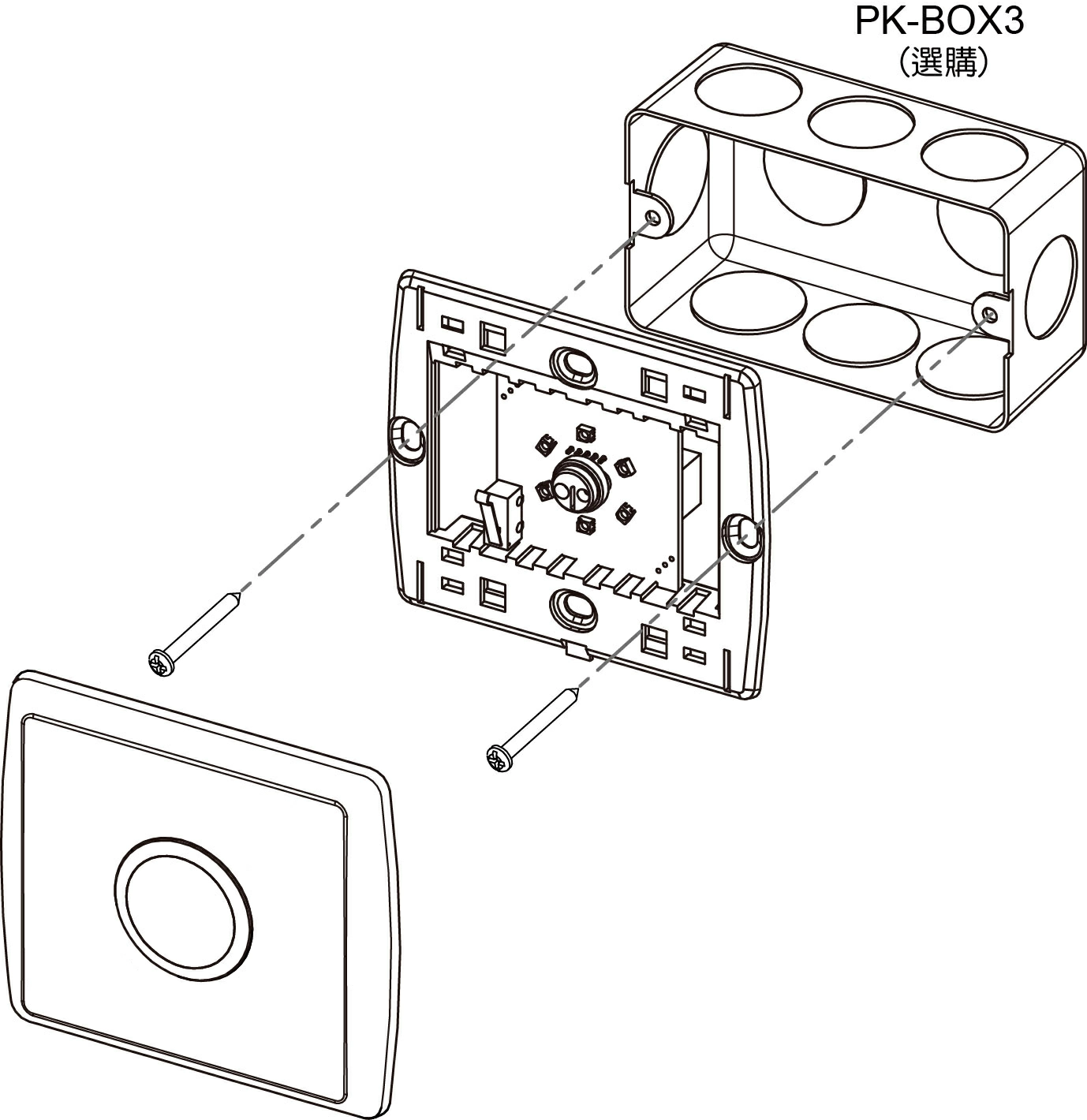

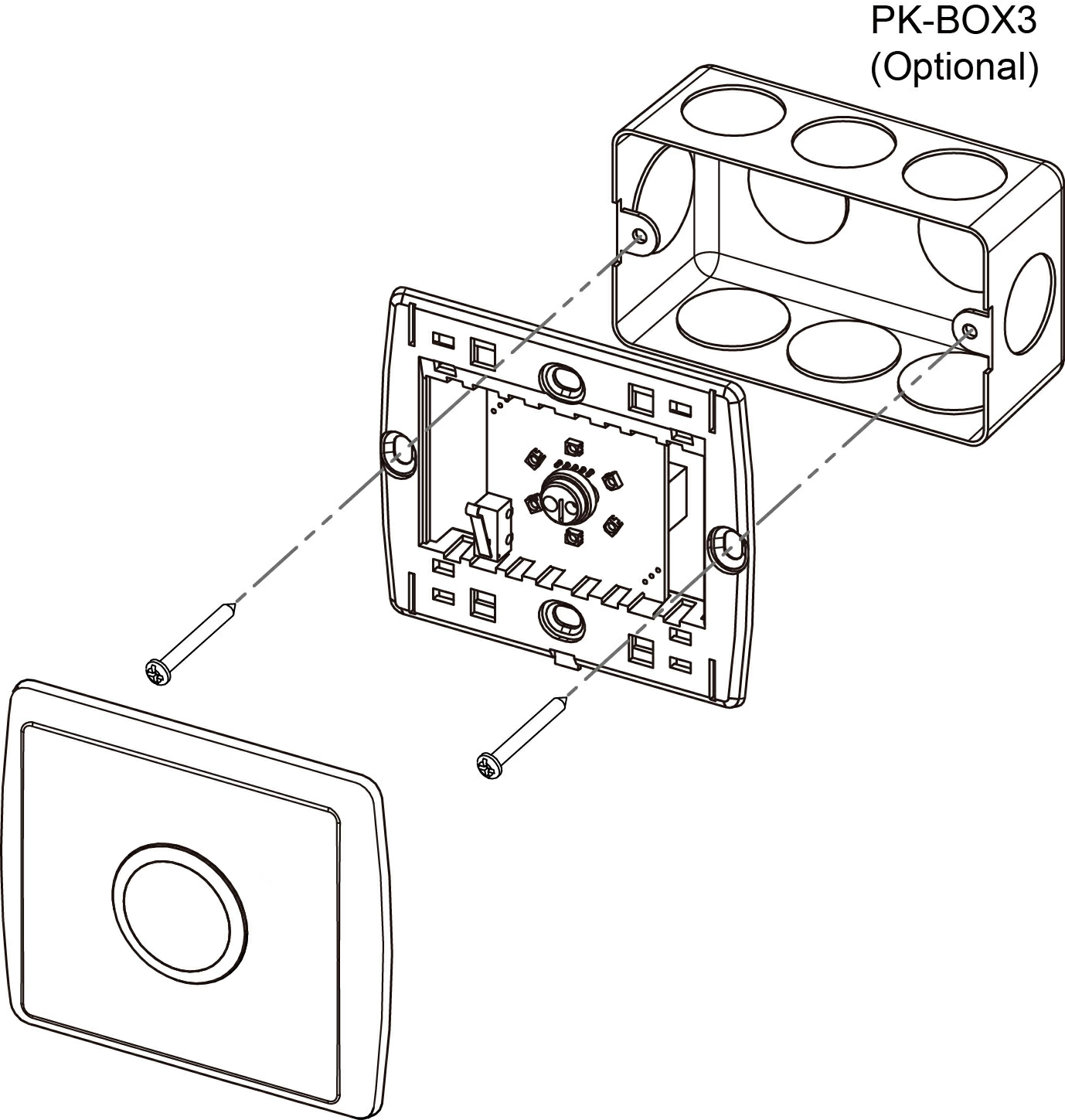

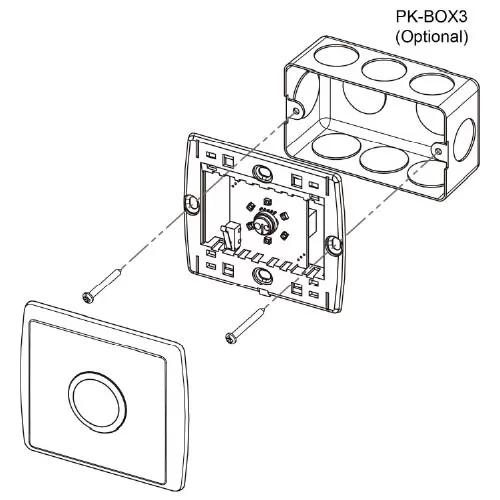

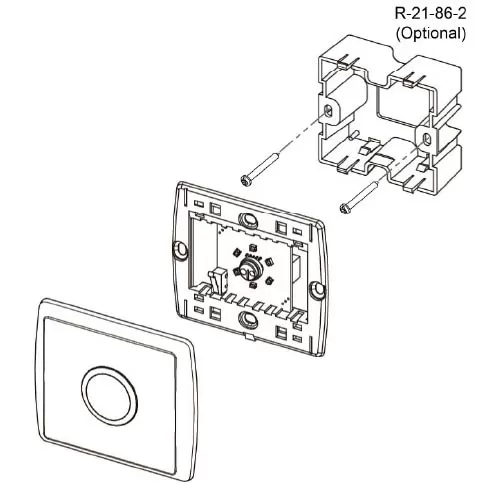

| Mounting box for EU standard | Mounting box for US standard |
Mifare is a registered trademark of NXP B.V.
MIFARE DESFire is a registered trademark of NXP B.V.
Specifications subject to change without notice for further modification.
