PRS-09 is the switch with LED display. The LED indicator (green) lights up when +24 VAC power's inputting. The line is turned on when the switch shifts to symbol of “I”. It could be applied to various electromechanical products which require switch shifted.

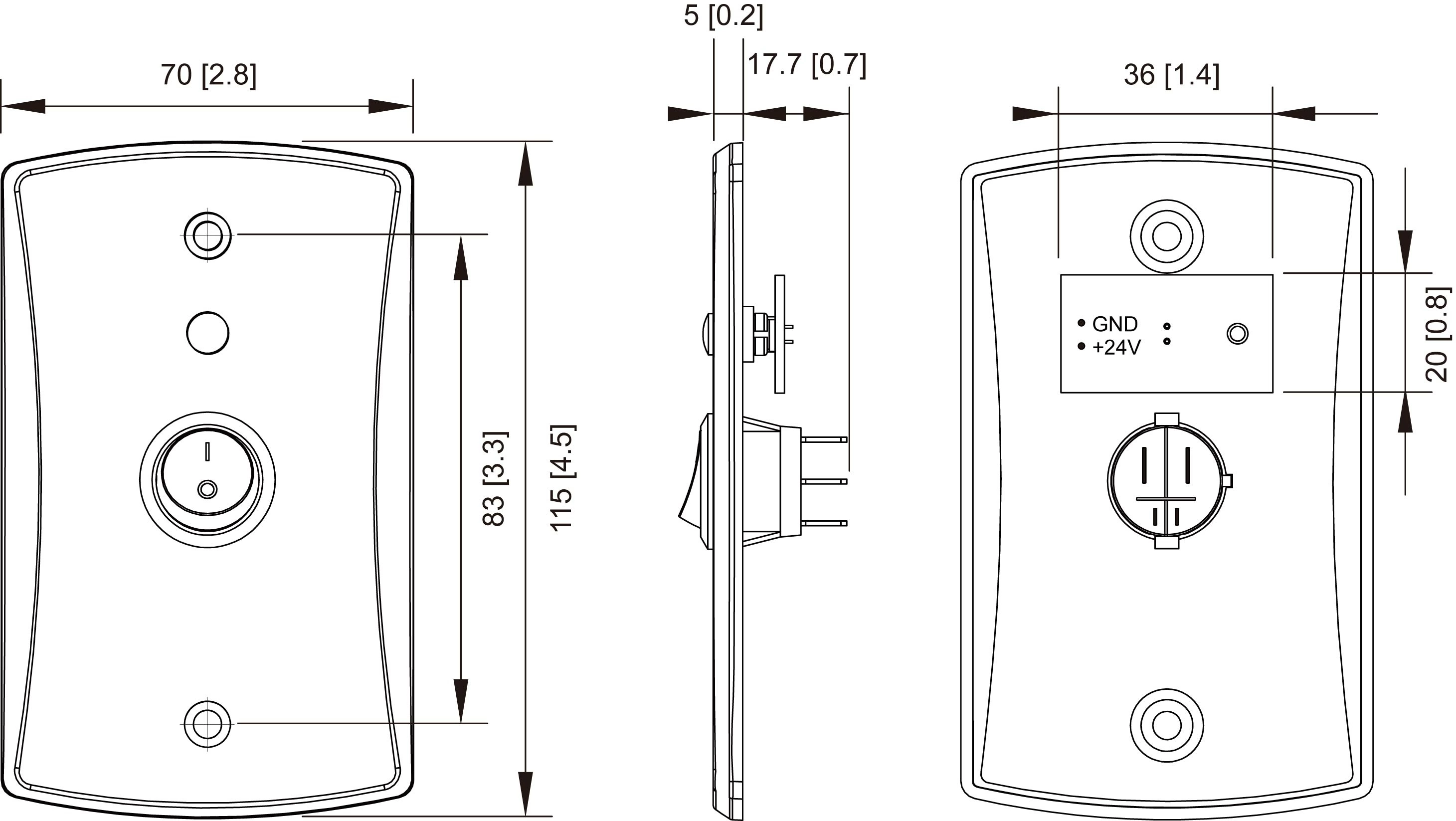

• Dimensions : 5(plate)/22.7(total depth) x 70(W) x 115(L)mm
• Net weight : 198g ± 5%

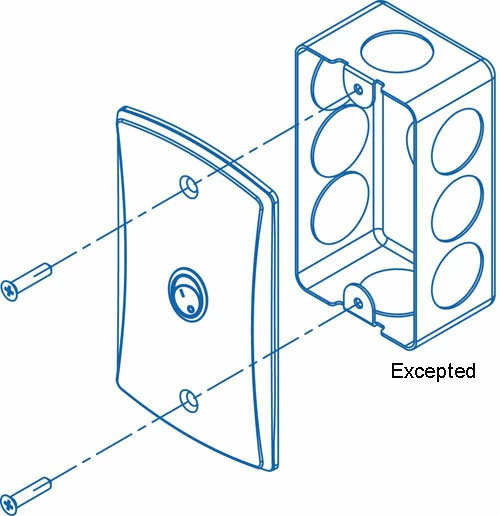

• Hole distance : 83mm
• Material : Face plate: Zinc alloy: Switch: ABS
• Operating temperature / Humidity : -20℃ ~ 55℃/ < 80%RH
• LED Power input : 13.8mA @ 24VAC
• Contact Rating : 8A, 250VAC / 10A, 125VAC
• Initial Contact Resistance : 50 Milli-ohms Max.
• Insulation Resistance : 50 Meg-ohms Min (500VDC)
• Withstand Voltage : 1,000 VAC-1 minute
• Life : 30,000 cycles

We reserve the right to change the specification without prior notice or obligation!
