PCL-100 Electronic Cabinet Lock

Model number: PCL-100

Inquiry
Quantity

Features

  • Compact size for simple installation.
  • For drawers, lockers, mailboxes, boxes and similar devices used.
  • Selecting the cabinet lock operation: fail-safe / fail-secure
  • With lock sensor(For PCL-100S)

Specification

Voltage/Current12VDC /250mA, 24VDC/125mA
MaterialLock body(Aluminum alloy)
Plate cover(stainless steel)
Fixed buckle(stainless)

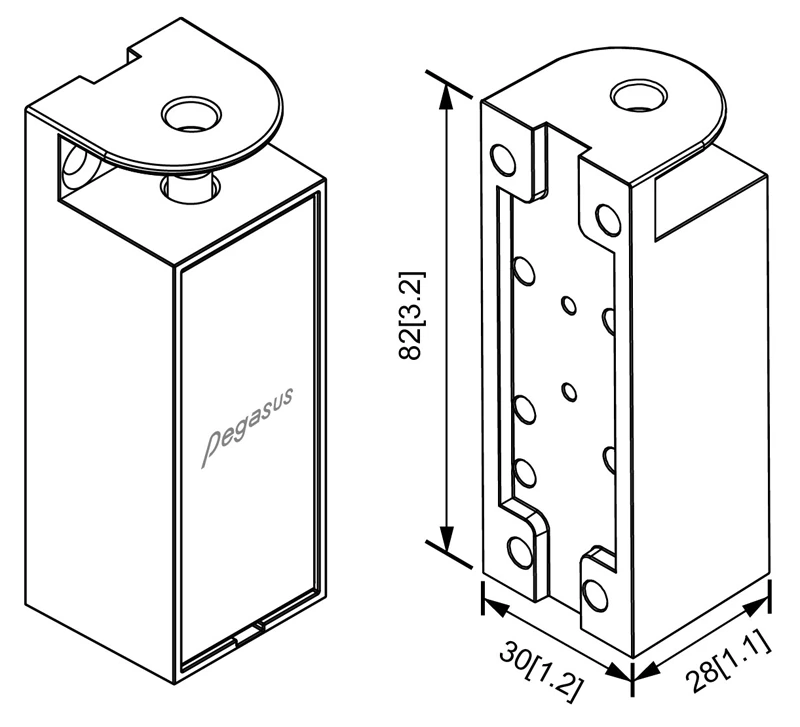

Dimensions: mm[inch]

Cabinet Lock With Fail-Safe / Fail-Secure Adjustable Function

Application

/storage/system/electric_lock/Application-for-PGL-100-A.jpg

A. Drawer

/storage/system/electric_lock/Application-for-PGL-100-B.jpg

B. Cabinet(Sliding door type)

/storage/system/electric_lock/Application-for-PGL-100-C.jpg

C. Cabinet(Pull door type)

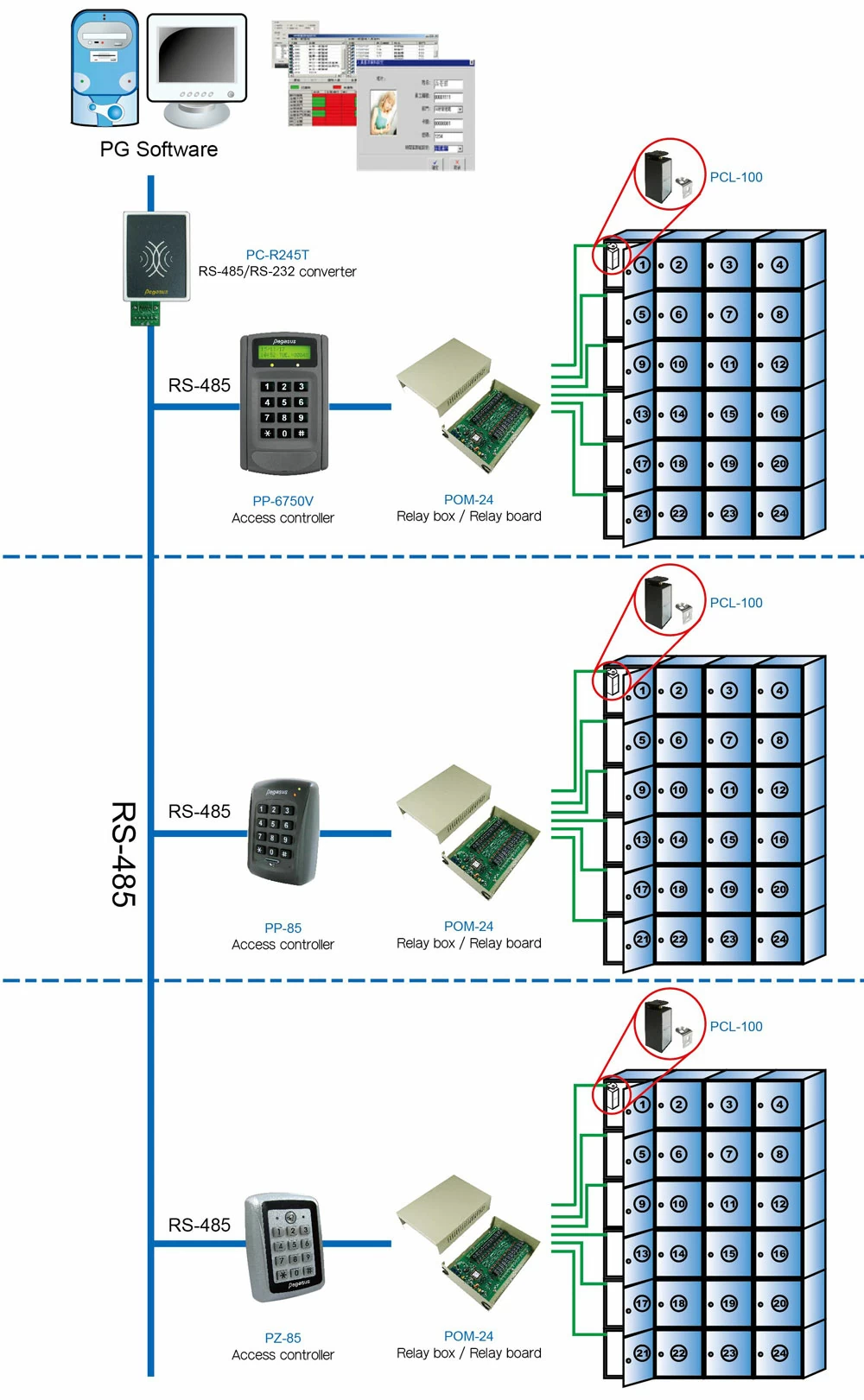

System configuration

/storage/system/electric_lock/Configuration-for-PCL-100.jpg

Ordering information

PCL-100Cabinet lock, operation: fail-safe / fail-secure
PCL-100SCabinet lock with lock sensor, operation: fail-safe / fail-secure

We reserve the right to change the specification without prior notice or obligation!

proimages/declaration-from-Pongee-Taiwan.jpg

Download

#NameUpload DateDescriptionDownload
1
PCL-100
2021-09-29
Cabinet Lock With Fail-Safe / Fail-Secure Adjustable Function catalog
